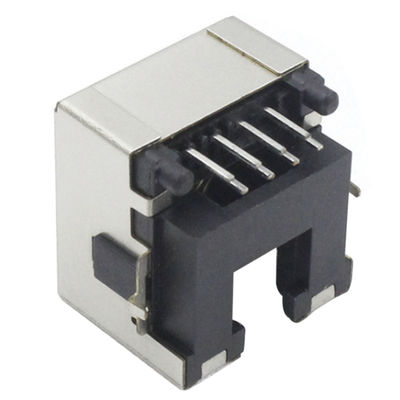

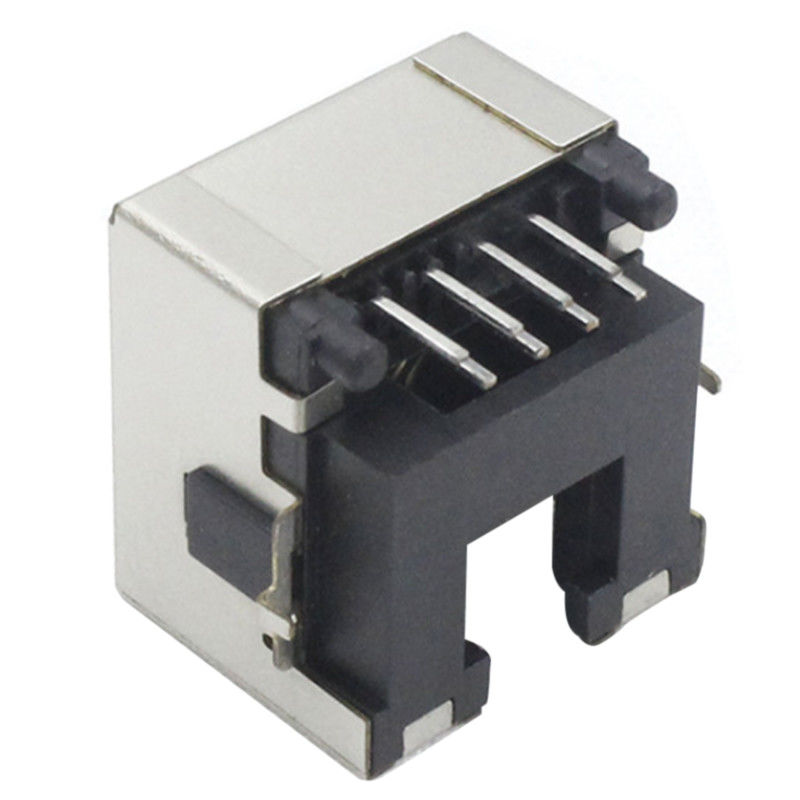

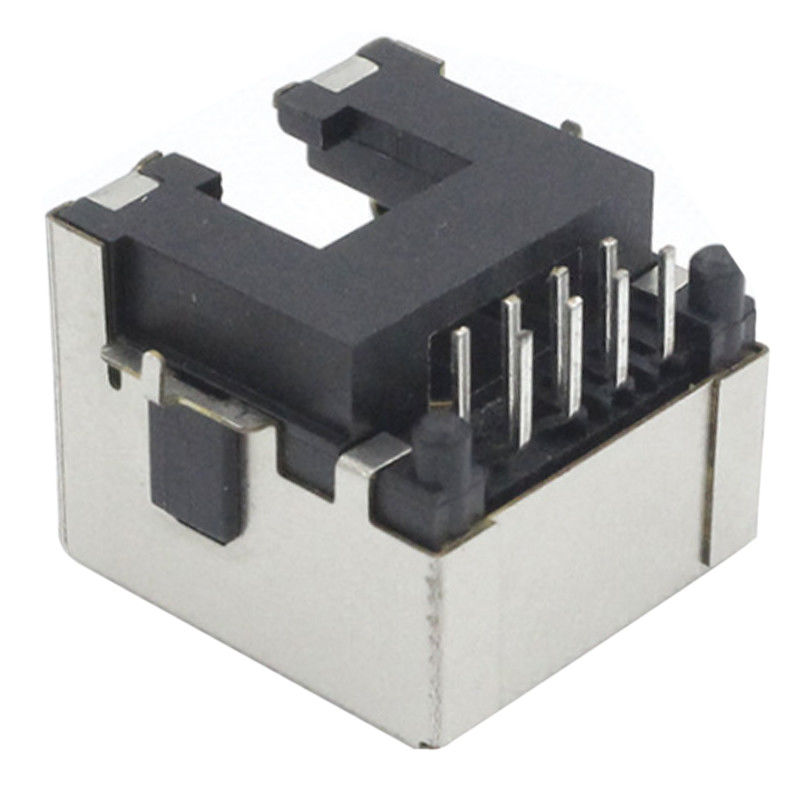

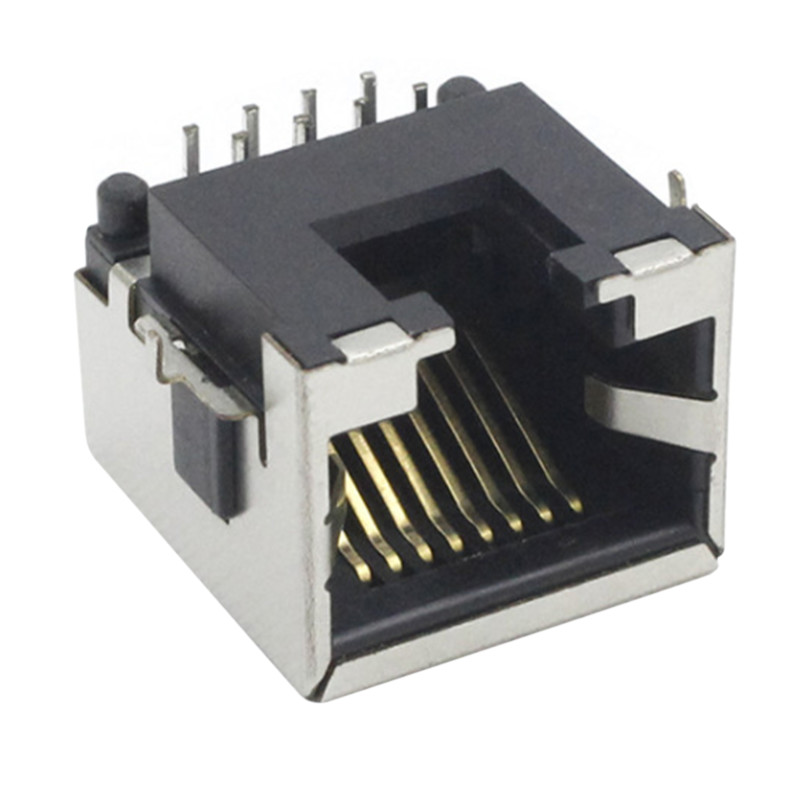

90 Degree RJ45 Female Adapter With Sink Plate 8.6 Single Port Shielding On
90 Degree RJ45 Female Adapter With Sink Plate 8.6 Single Port Shielding On 90 Degree RJ45 Female Adapter With Sink Plate 8.6 Single Port Shielding On 90 Degree RJ45 Female Adapter With Sink Plate 8.6 Single Port Shielding On
Contact Now

90 Degree RJ45 Female Adapter With Sink Plate 8.6 Single Port Shielding On

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 100pcs/Tray Delivery Time : 20 Days
Payment Terms : T/T, Western Union,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: tmulink
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM58H811EX004216111010

Detail Information
Contact Resistance: 30mΩ Terminals Per Port: 8
Product Type: RJ45 Modular Connector Jack Type: RJ45
Number Of Positions: 8 LED Option: No
Shielded EMI Tabs: No Voltage Rating: 125 V
Current Rating: 1.5 A Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN
High Light:

Shielding On Female RJ45 Adapter

,

8.6 Single Port RJ45 Female Adapter

,

RJ45 Female Adapter With Sink Plate

Product Description



8.6 Single-Port Shielding on 90 degree with Sink plate RJ45 Connector

90 degree Sink plate RJ45 Connector (TM58H811EX004216111010) Materials:


Housing : FR52,UL94V-0 ( RoHS )
Contact Finish: T=0.30 mm GOLD PLATING FU" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
Shielding Shell: 0.20mm THICKNESS COPPER ALLOY WITH NICKEL PLATED.
All materials mates with modulat plug conforming to FCC part 68. subpart F.


90 degree Sink plate RJ45 Connector (TM58H811EX004216111010) Product Structure:


RJ45 Jack
1 x 1 Port / Single Port / SMT Port
Latch Down
Connector Length: 14.00 mm
Connector Width: 14.71 mm
Connector Height: 11.45 mm
Termimal Solder Pin Length: 3.15 mm
8P8C ( 8 positions 8 contacts )
90°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required



90 degree Sink plate RJ45 Connector (TM58H811EX004216111010)  Attributes:



Model: TM58H811EX004216111010
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Delivery Time: 20 Days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 5KK/year



90 degree Sink plate RJ45 Connector (TM58H811EX004216111010) Mechnical Drawing:



90 Degree RJ45 Female Adapter With Sink Plate 8.6 Single Port Shielding On 0
