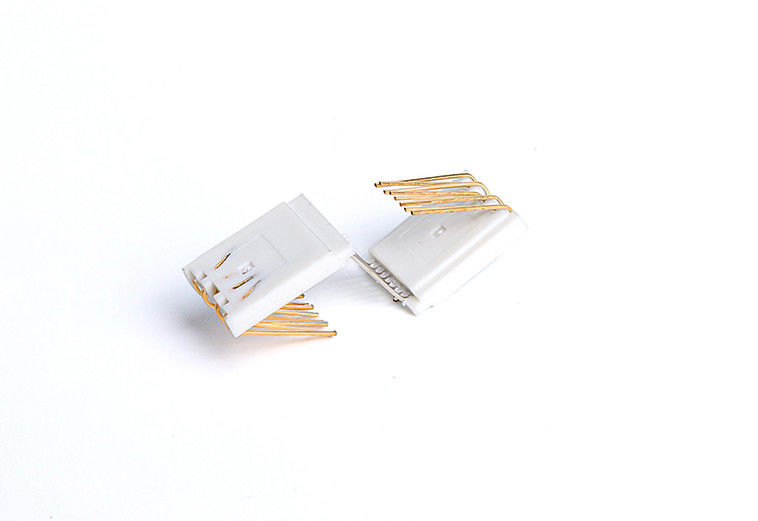

24.10 Mm CAT6 RJ45 Jack / Cat6 RJ45 Female Connector Mates With Modular Plug
24.10 Mm CAT6 RJ45 Jack / Cat6 RJ45 Female Connector Mates With Modular Plug
Contact Now

24.10 Mm CAT6 RJ45 Jack / Cat6 RJ45 Female Connector Mates With Modular Plug

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMZJ014058

Detail Information
Product Type: RJ45 Modular Connector Jack Type: RJ45
Number Of Positions: 8 Terminals Per Port: 8
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
Minimal Order: 1pcs Manner Of Packing: Tray In Carton
Delivery Time: 20 Days Supply Ability: 5KK/year
High Light:

cat6 female jack

,

modular jack cat 6

Product Description

Industrial Cat6 RJ45 Female connector All materials mates with modular plug Length 24.10 mm TMZJ014058



Materials:
Housing : PBT,UL94V-0 ( RoHS )
Contact Finish: T=0.35 mm GOLD PLATING 6U" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
Shielding Shell: No shield.
All materials mates with modulat plug conforming to FCC part 68. subpart F.



Product Structure:
1 x 1 Port / Single Port / One Port
Connector Length: 24.10 mm
Connector Width: 10.5 mm
Connector Height: 12.3 mm
Termimal Solder Pin Length: 0 mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without led, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required



RJ45 Without Transformer (TMZJ014058) Attributes:

Model: TMZJ014058
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Manner of packing : Tray
Delivery Time: 20 Days
Supply Ability: 5KK/year



RJ45 Female Connector (TMZJ014058) Mechnical Drawing:

 24.10 Mm CAT6 RJ45 Jack / Cat6 RJ45 Female Connector Mates With Modular Plug 0
