Cat6e Right Angle Single Port RJ45 Keystone Jacks Metal with Shield 8p8c TMZT281XEXX7E

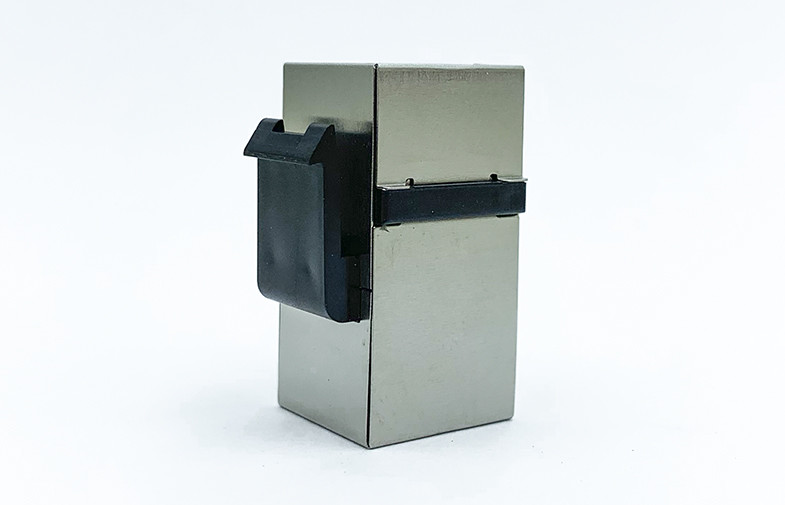

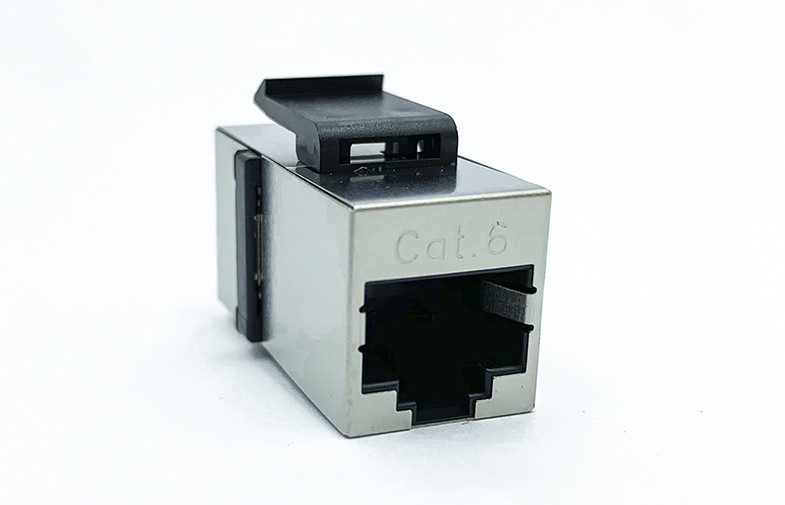

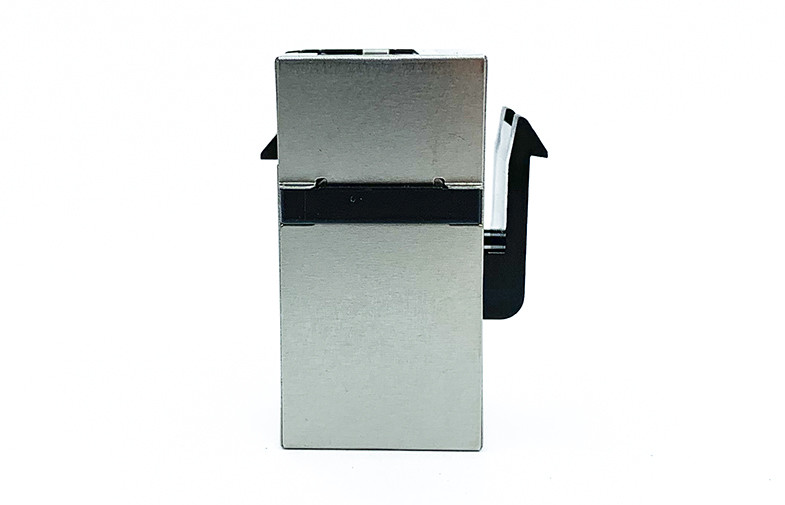

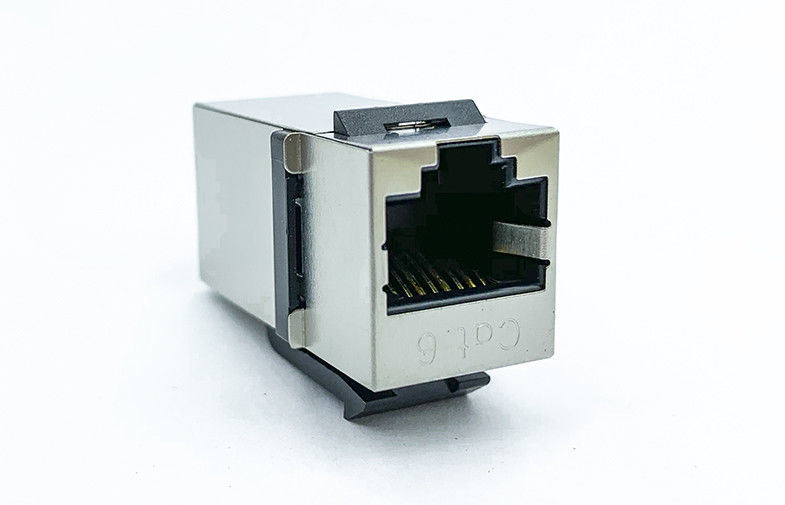

Cat6e Right Angle Single Port RJ45 Keystone Jacks Metal with Shield 8p8c TMZT281XEXX7E Cat6e Right Angle Single Port RJ45 Keystone Jacks Metal with Shield 8p8c TMZT281XEXX7E Cat6e Right Angle Single Port RJ45 Keystone Jacks Metal with Shield 8p8c TMZT281XEXX7E Cat6e Right Angle Single Port RJ45 Keystone Jacks Metal with Shield 8p8c TMZT281XEXX7E
Contact Now

Cat6e Right Angle Single Port RJ45 Keystone Jacks Metal with Shield 8p8c TMZT281XEXX7E

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 50pcs/tray,1000pcs/carton Delivery Time : 20 Days
Payment Terms : T/T, Western Union,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMZT281XEXX7E

Detail Information
Contact Resistance: 30mΩ Number Of Positions: 8
Product Type: RJ45 Modular Connector Jack Type: RJ45
Terminals Per Port: 8 LED Option: No
Shielded EMI Tabs: No Voltage Rating: 125 V
Current Rating: 1.5 A Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN
High Light:

cat6 female jack

,

modular jack cat 6

Product Description

Cat6e Right Angle Single Port RJ45 Keystone Jacks Metal with Shield 8p8c TMZT281XEXX7E


Product Structure:
RJ45 Modular Jack
1 x 1 Port / Single Port / One Port
Connector Length: 31.20 mm
Connector Width: 14.4 mm
Connector Height: 16.00 mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required


RJ45 Without Transformer (TMZT281XEXX7E) Attributes:

Model: TMZT281XEXX7E
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 50pcs/tray,1000pcs/carton
Delivery Time: 20 Days
Supply Ability: 5KK/year



RJ45 Female Connector (TMZT281XEXX7E) Mechnical Drawing:

Cat6e Right Angle Single Port RJ45 Keystone Jacks Metal with Shield 8p8c TMZT281XEXX7E 0Cat6e Right Angle Single Port RJ45 Keystone Jacks Metal with Shield 8p8c TMZT281XEXX7E 1Cat6e Right Angle Single Port RJ45 Keystone Jacks Metal with Shield 8p8c TMZT281XEXX7E 2Cat6e Right Angle Single Port RJ45 Keystone Jacks Metal with Shield 8p8c TMZT281XEXX7E 3Cat6e Right Angle Single Port RJ45 Keystone Jacks Metal with Shield 8p8c TMZT281XEXX7E 4
