Product Description

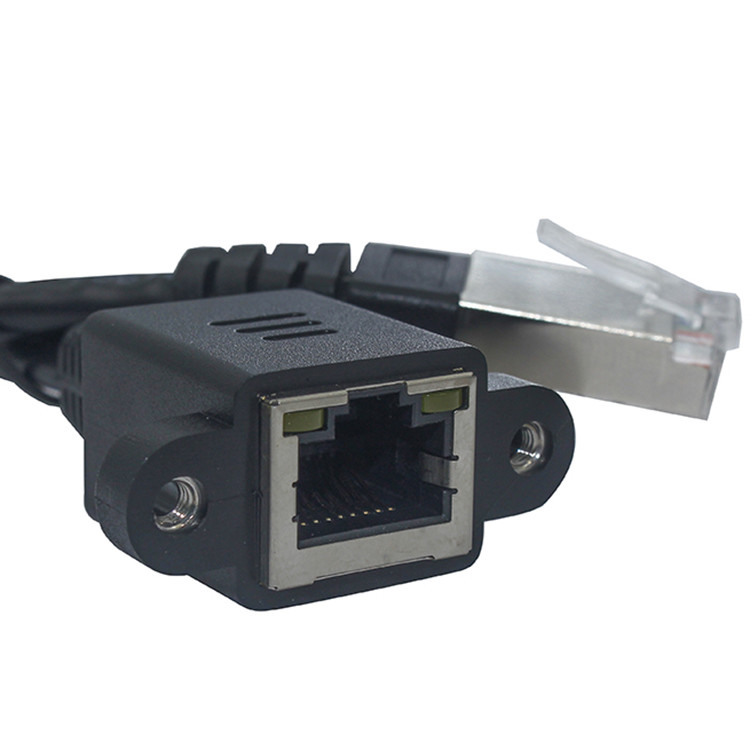

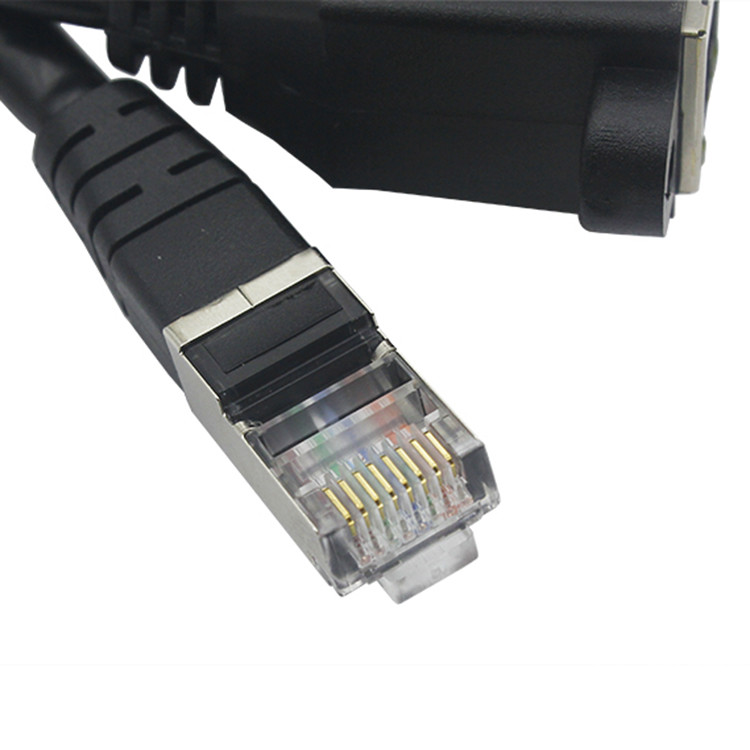

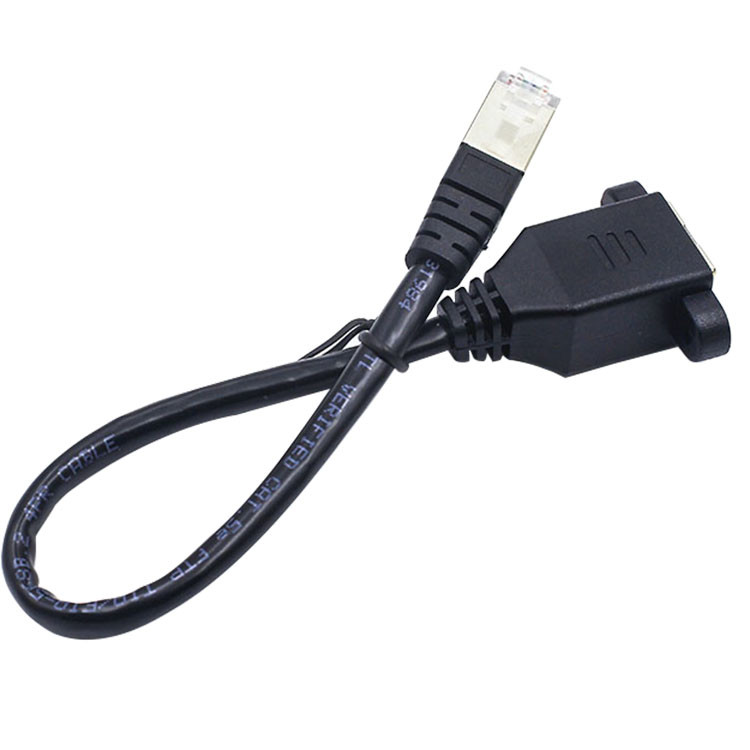

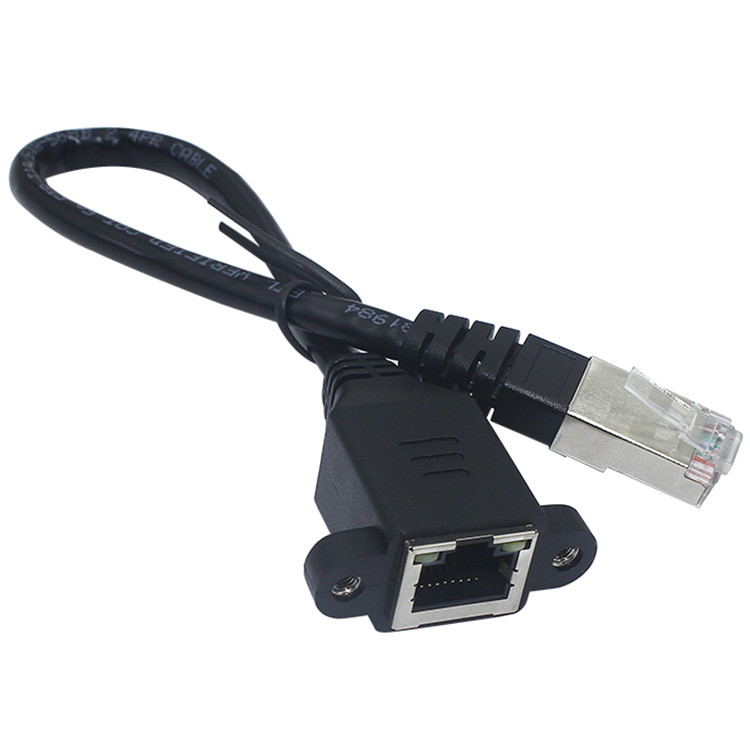

Pure Copper RJ45 Extension Cable with Ear Fixed with Screw Hole RJ45 Network male to female Extension Cable TMCABLE060123
Materials:
CONNECTOR P1(RJ45 JACK):
Housing:PBT,BLACK,UL94V-0 ( RoHS )
Holder:LCP,BLACK,UL94V-0 ( RoHS )
Contact material:OD=0.2*0.35mm flat needle nickel plating, tin plating, contact area gold plating( RoHS )
Gold plating:Fu”(Optional)
Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all
CONNECTOR P2(US PLUG):
Housing:PC,UL94V-0 ( RoHS )
Contact material:T=0.3mm Copper alloy nickel plating, contact area gold plating( RoHS )
Gold plating:Fu”(Optional)
Shielding Shell:Copper alloy with Nickel Plating over all
CABLE: FTP 24AWG*4P(7/0.20BC)+AEB OD5.8mm BLACK PVC( RoHS )
MOLDING: PVC Black UL94V-0(RoHS)
Shielding: With
All materials mates with modulat plug conforming to FCC part 68. subpart F.
Product Structure:
RJ45 CABLE
One plug to one jack Cable
CABLE Length: 300 mm
RJ45 Connector Lock hole spacing: 28.27 mm
RJ45 Connector Lock hole size: M3
8P8C ( 8 positions 8 contacts )
180°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required
RJ45 Connector Cable(TMCABLE060123) Attributes:
| Model: |
|
| Place of Origin: |
Guangdong of China |
| Certification: |
UL,Rohs,Reach,ISO9001 |
| Product Type : |
RJ45 Connector Cable |
| Jack Type: |
RJ45 |
| Number of Positions : |
8 |
| Terminals per Port: |
8 |
| LED Option: |
No |
| Shielded: |
Yes |
| Cable Color: |
Black |
| Durrability: |
750 CYCLES MIN |
| Minimal Order: |
500 pcs |
| Package: |
1pcs/bag |
| Carton size: |
/ |
| Delivery Time: |
20 Days |
| Payment Terms: |
|
| Supply Ability: |
300K/year |
RJ45 Connector Cable ( TMCABLE060123) Mechnical Drawing:
