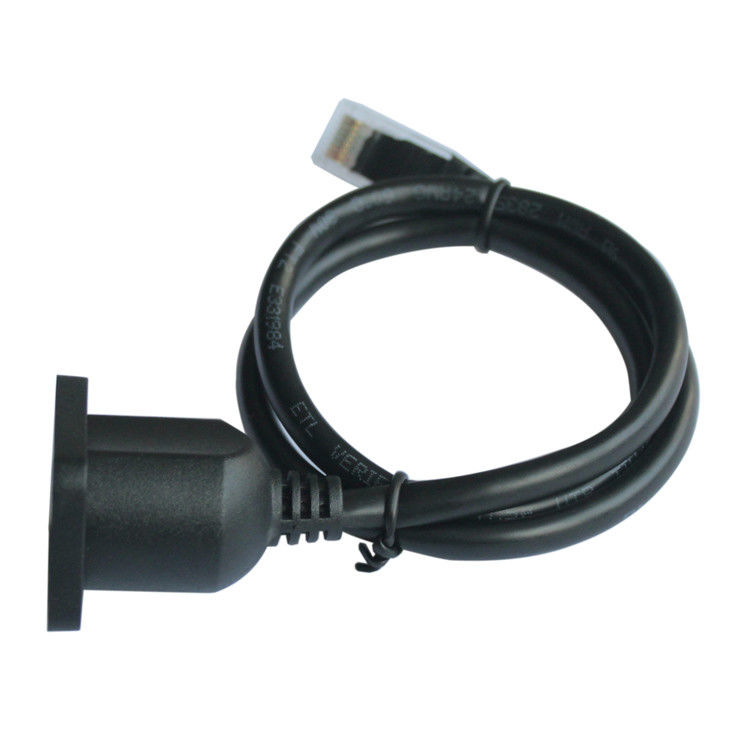

Ethernet RJ45 Extension Cable , Female Socket Rj45 Patch Cord

Product Description

Ethernet Patch Cable 8p8c Female Socket To Cold pressed terminal Extension CableTMCABLE060131

Product Structure:

RJ45 CABLE
One Jack to Cold-pressed Terminal CABLE
CABLE Length: 600mm
RJ45 Connector: 8P8C ( 8 positions 8 contacts )
Cold-pressed Terminal: Red and Blue 8P8C ( 8 positions 8 contacts )
180°Orientation
Without LED, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required

RJ45 Connector Cable(TMCABLE060131) Attributes:

What are Ethernet cables used for?
Image result for ethernet cable
Ethernet cables carry broadband signals between your modem, router, computer, and other wired Internet devices. Cat 5e and Cat 6e (or higher) Ethernet cables are recommended for higher speeds. This designation is usually printed on the wire casing along with other specifications.

RJ45 Connector Cable (TMCABLE060131) Mechnical Drawing:

What Is RJ45 Interface?
RJ45 interface is considered the most common twisted-pair connector for Ethernet cables and networks.
"RJ" means "registered jack" — a standardized telecommunication network interface for connecting voice and data equipment to a service provided by a local exchange carrier or long-distance carrier.
"45" is the number of the interface standard.
Physically speaking, the connectors that registered jacks use are mainly the modular connector and 50-pin miniature ribbon connector types. RJ45 connector is an 8-position, 8-contact (8P8C) modular plug, and jack, applied for Ethernet-based local area networks (LAN). RJ45 cable plug is usually made of a plastic piece with eight pins on the port. Four of the pins are used for sending and receiving data, and the other four are used for other technologies or power networking devices.
