RJ45 POE Ethernet Connector 1x2 1000Base-T With LED Tab Down TM112Q17ABC111007
RJ45 POE Ethernet Connector 1x2 1000Base-T With LED Tab Down TM112Q17ABC111007 RJ45 POE Ethernet Connector 1x2 1000Base-T With LED Tab Down TM112Q17ABC111007
Contact Now

RJ45 POE Ethernet Connector 1x2 1000Base-T With LED Tab Down TM112Q17ABC111007

Minimum Order Quantity : 500 piece Price : Supportive
Packaging Details : Tray in Carton Delivery Time : 3 work days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 100kpcs /day
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM112Q17ABC111007

Detail Information
LENGTH: 21.1mm HOUSING MATERIAL: PBT UL94V-0
CONTACT MATING AREA PLATING: GOLD 6U'' PLATING CONNECTOR TYPE: BLACK
LED OPTION: LEFT GREEN,RIGHT YELLOW NUMBER OF PORTS: 1X2
NUMBER OF CONTACTS: 10 GROUNDING OPTIONS: Panel Ground And PCB Ground
SHIELD PLATING MATERIAL: NICKEL SHIELD EMI TABS: NO
SHIELD: YES ROHS COMPLIANT: YES
PANEL STOP: YES PCB MOUNT ANGLE: SIDE ENTRY
PACKAGE: DIP CONNECTOR & CONTACT TERMINAATES TO: Printed Circuit Board
LATCH ORIENTATION: LATCH DOWN
High Light:

power over ethernet connector

,

1000base t connector

,

RJ45 POE Ethernet Connector 1x2 1000Base-T

Product Description

 RJ45 POE Connector 1X2 1000Base-T With LED Tab Down TM112Q17ABC111007,21.1mm



Description:


100/1000Base-Tx RJ45 single port 1X2 with LEDS with Side Entry (Right Angle)
Single port 1X2 Tab-Down RJ45 with internal magnetics
Internal magnetics are 100% electrically tested for HI-POT and functionality
Suitable for CAT5&6 fast Ethernet Cable or better UTP
350uHminimum OCL with 8mA bias current
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 230℃
Operating temperarure range :-40℃ to +85℃
Storage temperature range :-40℃ to +85℃


RJ45 Without Transformer (TM112Q17ABC111007) Attributes:



Model Number TM112Q17ABC111007
LENGTH 21.1mm
HOUSING MATERIAL PBT UL94V-0
CONTACT MATING AREA PLATING GOLD 6U'' PLATING
CONNECTOR TYPE RJ45
CONNECTOR MATERIAL COLOR BLACK
LED OPTION LEFT GREEN,RIGHT YELLOW
NUMBER OF PORTS 1X2
NUMBER OF CONTACTS 10
GROUNDING OPTIONS Panel Ground and PCB Ground
SHIELD PLATING MATERIAL NICKEL
SHIELD EMI TABS NO
SHIELD YES
ROHS COMPLIANT YES
PANEL STOP YES
PCB MOUNT ANGLE SIDE ENTRY
PACKAGE DIP
CONNECTOR & CONTACT TERMINAATES TO Printed Circuit Board
LATCH ORIENTATION LATCH DOWN



RJ45 Female Connector (TM112Q17ABC111007) Applications:


10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,
HomePNA,DSL／ADSL and so on.


RJ45 Female Connector (TM112Q17ABC111007) Mechnical:

Drawing:

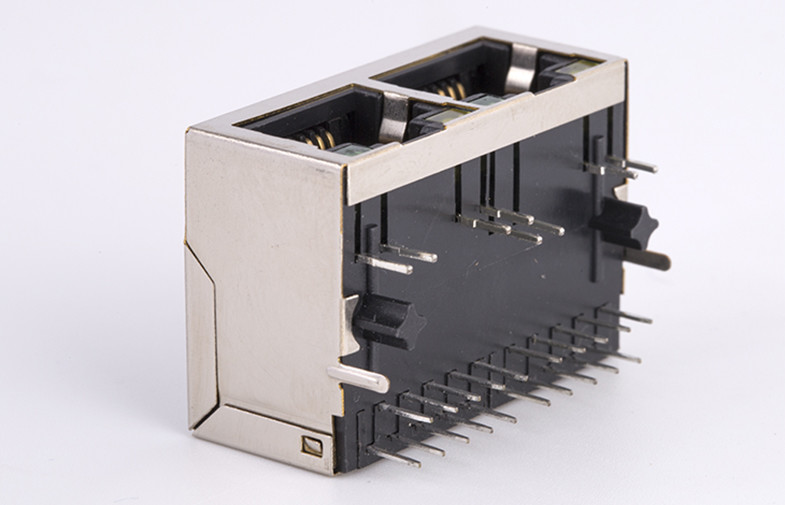

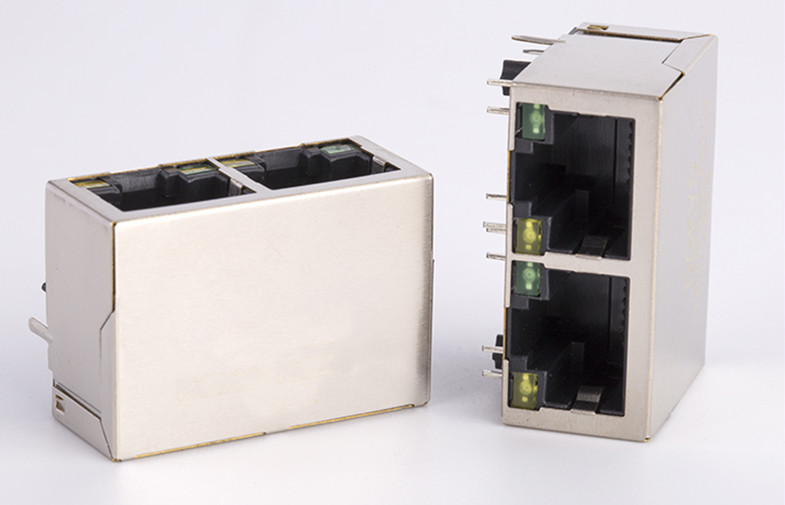

RJ45 POE Ethernet Connector 1x2 1000Base-T With LED Tab Down TM112Q17ABC111007 0RJ45 POE Ethernet Connector 1x2 1000Base-T With LED Tab Down TM112Q17ABC111007 0RJ45 POE Ethernet Connector 1x2 1000Base-T With LED Tab Down TM112Q17ABC111007 2

RJ45 POE Ethernet Connector 1x2 1000Base-T With LED Tab Down TM112Q17ABC111007 3RJ45 POE Ethernet Connector 1x2 1000Base-T With LED Tab Down TM112Q17ABC111007 4

RJ45 POE Ethernet Connector 1x2 1000Base-T With LED Tab Down TM112Q17ABC111007 0
