Power Over Ethernet POE Ethernet Connector / 1000base T Connector 21.1mm
Power Over Ethernet POE Ethernet Connector / 1000base T Connector 21.1mm
Contact Now

Power Over Ethernet POE Ethernet Connector / 1000base T Connector 21.1mm

Minimum Order Quantity : 500 piece Price : Supportive
Packaging Details : Tray in Carton Delivery Time : 3 work days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 100kpcs /day
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM112Q17ABC111007

Detail Information
LENGTH: 21.1mm HOUSING MATERIAL: PBT UL94V-0
CONTACT MATING AREA PLATING: GOLD 6U'' PLATING CONNECTOR TYPE: BLACK
LED OPTION: LEFT GREEN,RIGHT YELLOW NUMBER OF PORTS: 1X2
NUMBER OF CONTACTS: 10 GROUNDING OPTIONS: Panel Ground And PCB Ground
SHIELD PLATING MATERIAL: NICKEL SHIELD EMI TABS: NO
SHIELD: YES ROHS COMPLIANT: YES
PANEL STOP: YES PCB MOUNT ANGLE: SIDE ENTRY
PACKAGE: DIP CONNECTOR & CONTACT TERMINAATES TO: Printed Circuit Board
LATCH ORIENTATION: LATCH DOWN
High Light:

power over ethernet connector

,

1000base t connector

Product Description

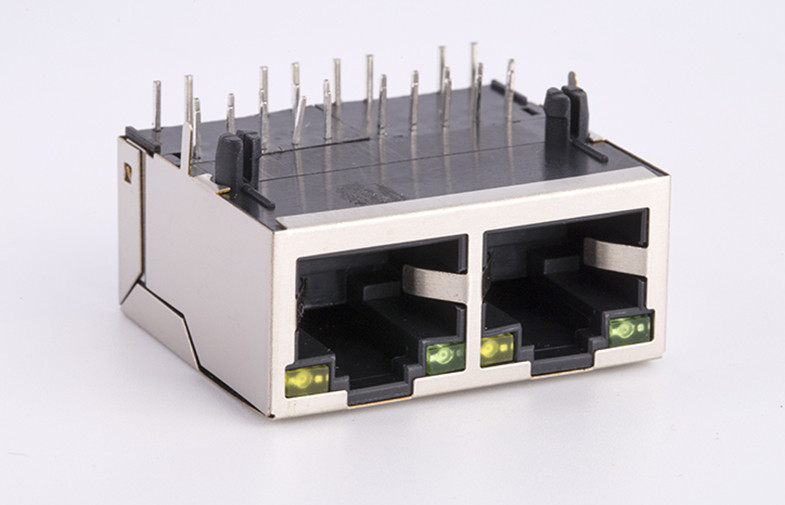

 RJ45 POE Connector 1X2 1000Base-T With LED Tab Down TM112Q17ABC111007,21.1mm




RJ45 Without Transformer (TM112Q17ABC111007) Attributes:



Model Number TM112Q17ABC111007
LENGTH 21.1mm
HOUSING MATERIAL PBT UL94V-0
CONTACT MATING AREA PLATING GOLD 6U'' PLATING
CONNECTOR TYPE RJ45
CONNECTOR MATERIAL COLOR BLACK
LED OPTION LEFT GREEN,RIGHT YELLOW
NUMBER OF PORTS 1X2
NUMBER OF CONTACTS 10
GROUNDING OPTIONS Panel Ground and PCB Ground
SHIELD PLATING MATERIAL NICKEL
SHIELD EMI TABS NO
SHIELD YES
ROHS COMPLIANT YES
PANEL STOP YES
PCB MOUNT ANGLE SIDE ENTRY
PACKAGE DIP
CONNECTOR & CONTACT TERMINAATES TO Printed Circuit Board
LATCH ORIENTATION LATCH DOWN




RJ45 Female Connector (TM112Q17ABC111007) Mechnical:

Drawing:

Power Over Ethernet POE Ethernet Connector / 1000base T Connector 21.1mm 0Power Over Ethernet POE Ethernet Connector / 1000base T Connector 21.1mm 0Power Over Ethernet POE Ethernet Connector / 1000base T Connector 21.1mm 2

Power Over Ethernet POE Ethernet Connector / 1000base T Connector 21.1mm 3Power Over Ethernet POE Ethernet Connector / 1000base T Connector 21.1mm 4
