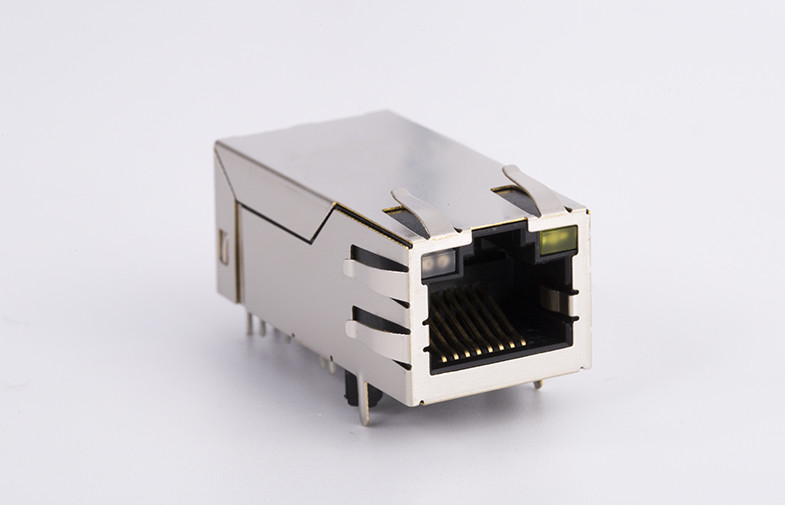

Rj45 Connector Cat5e 1G Magnetic DIP Mounting Fast Ethernet Cable Support

Name: Rj45 Connector Cat5e 1G Magnetic DIP Mounting Fast Ethernet Cable Support
Brand: TM
SKU: TM411W07DIA117007
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (140 reviews)

Minimum Order Quantity :	500 piece	Price :	Supportive
Packaging Details :	Tray in Carton	Delivery Time :	3 work days
Payment Terms :	T/T, Western Union, ,Paypal	Supply Ability :	100kpcs /day

Place of Origin:	Guangdong of China	Brand Name:	TM
Certification:	UL,Rohs,Reach,ISO9001	Model Number:	TM411W07DIA117007

Detail Information
LENGTH:	32.5mm	HOUSING MATERIAL:	PBT UL94V-0
CONTACT MATING AREA PLATING:	GOLD 6U'' PLATING	CONNECTOR TYPE:	BLACK
LED OPTION:	LEFT GN-OR,RIGHT YE	NUMBER OF PORTS:	1X1
NUMBER OF CONTACTS:	12	GROUNDING OPTIONS:	Panel Ground And PCB Ground
SHIELD PLATING MATERIAL:	NICKEL	SHIELD EMI TABS:	YES
SHIELD:	YES	ROHS COMPLIANT:	YES
PANEL STOP:	YES	PCB MOUNT ANGLE:	SIDE ENTRY
PACKAGE:	DIP	CONNECTOR & CONTACT TERMINAATES TO:	Printed Circuit Board
LATCH ORIENTATION:	LATCH UP
High Light:	power over ethernet connector , 1000base t connector

Product Description

33.02mm Length POE RJ45 Connector 1G Magnetic DIP Mounting Type Suitable for CAT5&6 fast Ethernet Cable TM411W07DIA11700

RJ45 Connector with Transformer (TM411W07DIA117007) Description:

350uHminimum OCL with 8mA bias current

High performance for maximum EMI suppression

Minimum 1500Vrms isolation per IEEE 802.3 requirement

RJ45 Without Transformer (TM411W07DIA117007) Attributes:

Model Number	TM411W07DIA117007
LENGTH	32.5mm
HOUSING MATERIAL	PBT UL94V-0
CONTACT MATING AREA PLATING	GOLD 6U'' PLATING
CONNECTOR TYPE	RJ45
CONNECTOR MATERIAL COLOR	BLACK
LED OPTION	LEFT GN-OR,RIGHT YE
NUMBER OF PORTS	1X1
NUMBER OF CONTACTS	12
GROUNDING OPTIONS	Panel Ground and PCB Ground
SHIELD PLATING MATERIAL	NICKEL
SHIELD EMI TABS	YES
SHIELD	YES
ROHS COMPLIANT	YES
PANEL STOP	YES
PCB MOUNT ANGLE	SIDE ENTRY
PACKAGE	DIP
CONNECTOR & CONTACT TERMINAATES TO	Printed Circuit Board
LATCH ORIENTATION	LATCH UP

RJ45 Female Connector (TM411W07DIA117007) Applications:

10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,

HomePNA,DSL／ADSL and so on.

RJ45 Female Connector (TM411W07DIA117007) Mechnical Drawing:

Rj45 Connector Cat5e 1G Magnetic DIP Mounting Fast Ethernet Cable Support 0

Rj45 Connector Cat5e 1G Magnetic DIP Mounting Fast Ethernet Cable Support 2
