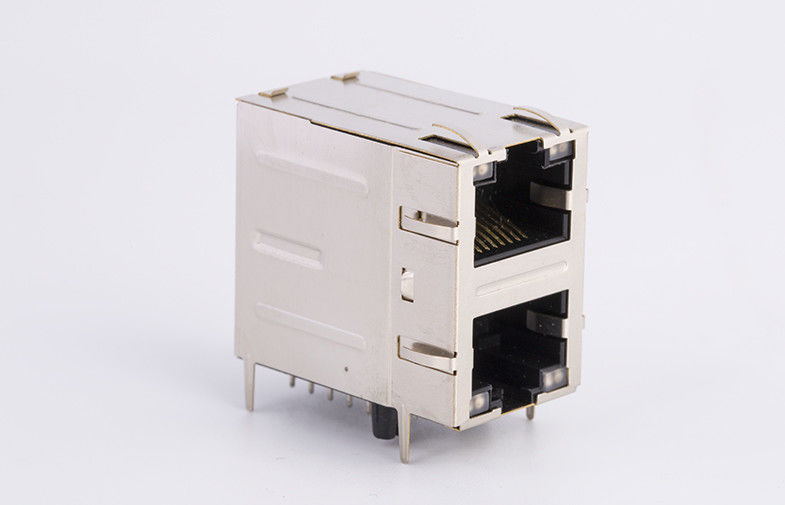

100 / 1000base T Ethernet Connectors RJ45 EMI LED Multi-Port Stacked 2X1 with LEDS Tab Down Up
100 / 1000base T Ethernet Connectors RJ45 EMI LED Multi-Port Stacked 2X1 with LEDS Tab Down Up
Contact Now

100 / 1000base T Ethernet Connectors RJ45 EMI LED Multi-Port Stacked 2X1 with LEDS Tab Down Up

Minimum Order Quantity : 500 piece Price : Supportive
Packaging Details : Tray in Carton Delivery Time : 3 work days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 100kpcs /day
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMX21Q16DBI235018

Detail Information
LENGTH: 28.5mm HOUSING MATERIAL: PBT UL94V-0
CONTACT MATING AREA PLATING: GOLD 6U'' PLATING CONNECTOR TYPE: BLACK
LED OPTION: LEFT GR,RIGHT GR/OR NUMBER OF PORTS: 2X1
NUMBER OF CONTACTS: 10 GROUNDING OPTIONS: Panel Ground And PCB Ground
SHIELD PLATING MATERIAL: NICKEL SHIELD EMI TABS: YES
SHIELD: YES ROHS COMPLIANT: YES
PANEL STOP: YES PCB MOUNT ANGLE: SIDE ENTRY
PACKAGE: DIP CONNECTOR & CONTACT TERMINAATES TO: Printed Circuit Board
LATCH ORIENTATION: LATCH DOWN
High Light:

poe rj45 connector

,

1000base t connector

Product Description



100/1000Base-Tx RJ45 EMI Multi-Port Stacked X1 with LEDS Tab Down-Up RJ45 with internal magnetics TMX21Q16DBI235018,28.5mm



RJ45 Connector with Transformer (TMX21Q16DBI235018) Description:





High performance for maximum EMI suppression

Minimum 1500Vrms isolation per IEEE 802.3 requirement

ROHS-6 peak wave solder temperature rating 230℃

Operating temperarure range :-40℃ to +85℃

Storage temperature range :-40℃ to +85℃



RJ45 Without Transformer (TMX21Q16DBI235018) Attributes:



Model Number TMX21Q16DBI235018
LENGTH 28.5mm
HOUSING MATERIAL PBT UL94V-0
CONTACT MATING AREA PLATING GOLD 6U'' PLATING
CONNECTOR TYPE RJ45
CONNECTOR MATERIAL COLOR BLACK
LED OPTION LEFT GR,RIGHT GR/OR
NUMBER OF PORTS 2X1
NUMBER OF CONTACTS 10
GROUNDING OPTIONS Panel Ground and PCB Ground
SHIELD PLATING MATERIAL NICKEL
SHIELD EMI TABS YES
SHIELD YES
ROHS COMPLIANT YES
PANEL STOP YES
PCB MOUNT ANGLE SIDE ENTRY
PACKAGE DIP
CONNECTOR & CONTACT TERMINAATES TO Printed Circuit Board
LATCH ORIENTATION LATCH DOWN



RJ45 Female Connector (TMX21Q16DBI235018) Applications:



10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,

HomePNA,DSL／ADSL and so on.



RJ45 Female Connector (TMX21Q16DBI235018) Mechnical Drawing:



100 / 1000base T Ethernet Connectors RJ45 EMI LED Multi-Port Stacked 2X1 with LEDS Tab Down Up 0100 / 1000base T Ethernet Connectors RJ45 EMI LED Multi-Port Stacked 2X1 with LEDS Tab Down Up 1100 / 1000base T Ethernet Connectors RJ45 EMI LED Multi-Port Stacked 2X1 with LEDS Tab Down Up 2
