RJ45 Connector with Transformer 10/100 Base-Tx Tab Down Single Port LEDS with Side Entry L=21.1mm TM111B01AB1
RJ45 Connector with Transformer 10/100 Base-Tx Tab Down Single Port LEDS with Side Entry L=21.1mm TM111B01AB1
Contact Now

RJ45 Connector with Transformer 10/100 Base-Tx Tab Down Single Port LEDS with Side Entry L=21.1mm TM111B01AB1

Minimum Order Quantity : 500 piece Price : Supportive
Packaging Details : Tray in Carton Delivery Time : 3 work days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 100kpcs /day
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM111B01AB1

Detail Information
Housing Material: PBT UL94V-0 Contact Mating Area Plating: Gold Plating 6u''
Connector Type: RJ45 W/ EMI Speed: 10/100 Base-Tx
Shield EMI Tabs: NO PCB Mount Angle: Side Entry/right Angle/90° Angle
PCB Mount Type: DIP/Through Hole Latch Type: Tab-Down
LED Option: Left Green,right Yellow Positions Loaded: 8P8C
Shield Plating Material: Nickel Shield: Yes
ROHS Compliant: Yes Panel Stop: No
High Light:

rj45 8p8c jack

,

rj45 modular socket

Product Description



RJ45 Connector with Transformer 10/100 Base-Tx ab Down Single Port LEDS with Side Entry L 21.1mm TM111B01AB1

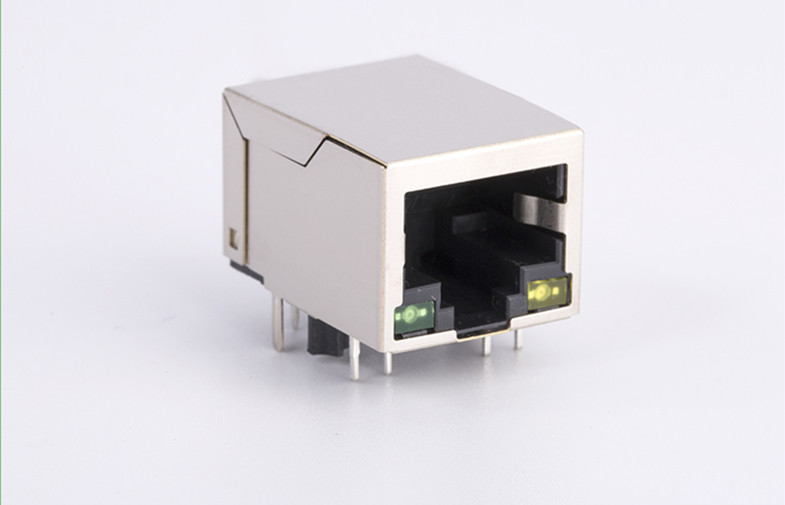

 TM111B01AB1 is  RJ45 Side Entry Connector with Transformer,8 Positions with 8 contacts loaded.Two plastic locating pegs for retention, spacing: 13.26 mm, Length x Width x Height: 21.0 x 15.95 x 13.4 mm, with LED Left Green,right Yellow, housing color black.



TM111B01AB1 Mechnical Drawing:



RJ45 Connector with Transformer 10/100 Base-Tx Tab Down Single Port LEDS with Side Entry L=21.1mm TM111B01AB1 0RJ45 Connector with Transformer 10/100 Base-Tx Tab Down Single Port LEDS with Side Entry L=21.1mm TM111B01AB1 1RJ45 Connector with Transformer 10/100 Base-Tx Tab Down Single Port LEDS with Side Entry L=21.1mm TM111B01AB1 2 RJ45 Connector with TransformerRJ45 Connector with Transformer 10/100 Base-Tx Tab Down Single Port LEDS with Side Entry L=21.1mm TM111B01AB1 4RJ45 Connector with Transformer 10/100 Base-Tx Tab Down Single Port LEDS with Side Entry L=21.1mm TM111B01AB1 5
