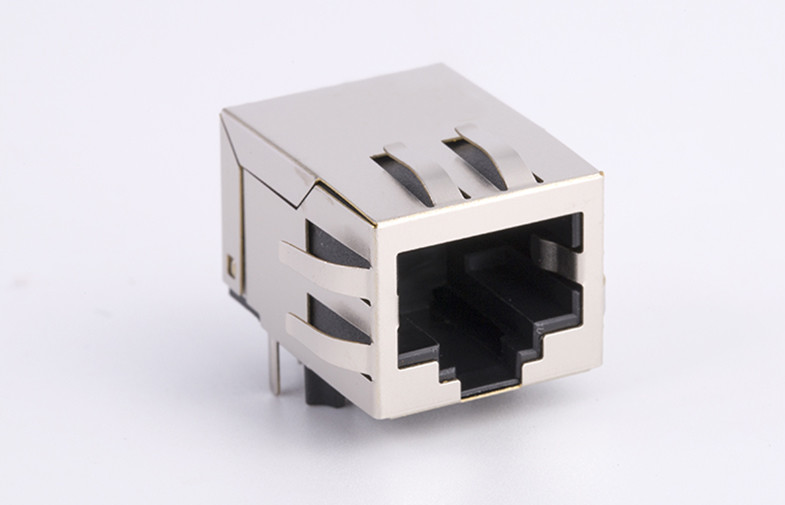

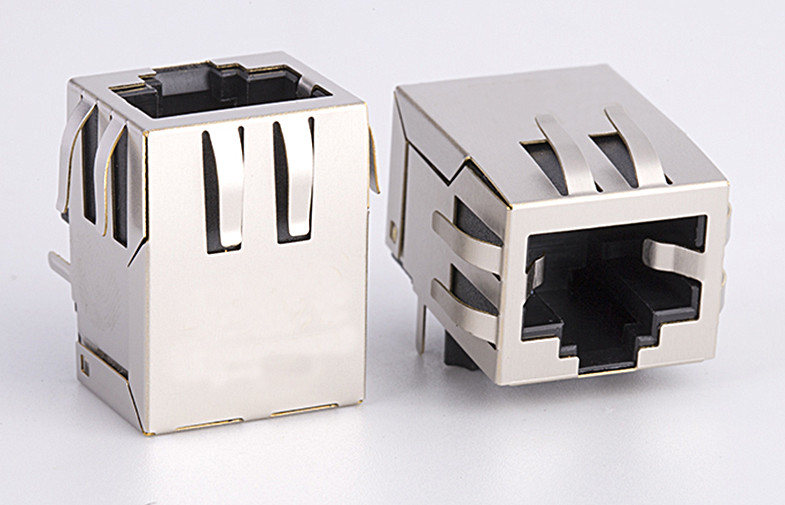

1X1 10/100Base-Tx RJ45 Single Port / RJ45 Ethernet Jack Without LEDs TM111B03HX1
1X1 10/100Base-Tx RJ45 Single Port / RJ45 Ethernet Jack Without LEDs TM111B03HX1 1X1 10/100Base-Tx RJ45 Single Port / RJ45 Ethernet Jack Without LEDs TM111B03HX1
Contact Now

1X1 10/100Base-Tx RJ45 Single Port / RJ45 Ethernet Jack Without LEDs TM111B03HX1

Minimum Order Quantity : 500 piece Price : Supportive
Packaging Details : Tray in Carton Delivery Time : 3 work days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 100kpcs /day
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM111B03HX1

Detail Information
LENGTH: 21.1mm HOUSING MATERIAL: PBT UL94V-0
CONTACT MATING AREA PLATING: GOLD 6U'' PLATING CONNECTOR TYPE: BLACK
LED OPTION: N/A NUMBER OF CONTACTS: 8
SHIELD PLATING MATERIAL: NICKEL SHIELD: YES
ROHS COMPLIANT: YES PANEL STOP: YES
PCB MOUNT ANGLE: SIDE ENTRY PACKAGE: DIP
CONNECTOR & CONTACT TERMINAATES TO: Printed Circuit Board LATCH ORIENTATION: LATCH DOWN
High Light:

rj45 8p8c jack

,

shielded rj45 jack

,

1X1 10/100Base-Tx RJ45 Ethernet Jack

Product Description



Single port 1X1 10/100Base-Tx RJ45 Ethernet Jack without LEDS Tab-Down TM111B03HX1



RJ45 Connector with Transformer (TM111B03HX1) Description:



High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 230℃
Operating temperarure range :-40℃ to +85℃
Storage temperature range :-40℃ to +85℃


RJ45 Without Transformer (TM111B03HX1) Attributes:



Model Number TM111B03HX1
LENGTH 21.1mm
HOUSING MATERIAL PBT UL94V-0
CONTACT MATING AREA PLATING GOLD 6U'' PLATING
CONNECTOR TYPE RJ45
CONNECTOR MATERIAL COLOR BLACK
LED OPTION N/A
NUMBER OF PORTS 1X1
NUMBER OF CONTACTS 8
GROUNDING OPTIONS Panel Ground and PCB Ground
SHIELD PLATING MATERIAL NICKEL
SHIELD EMI TABS YES
SHIELD YES
ROHS COMPLIANT YES
PANEL STOP YES
PCB MOUNT ANGLE SIDE ENTRY
PACKAGE DIP
CONNECTOR & CONTACT TERMINAATES TO Printed Circuit Board
LATCH ORIENTATION LATCH DOWN


RJ45 Female Connector (TM111B03HX1) Applications:


10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,
HomePNA,DSL／ADSL and so on.
