POE RJ45 Connector Single Port 1X1 Tab-Up 10/100Base-Tx TM311B01DAB213007

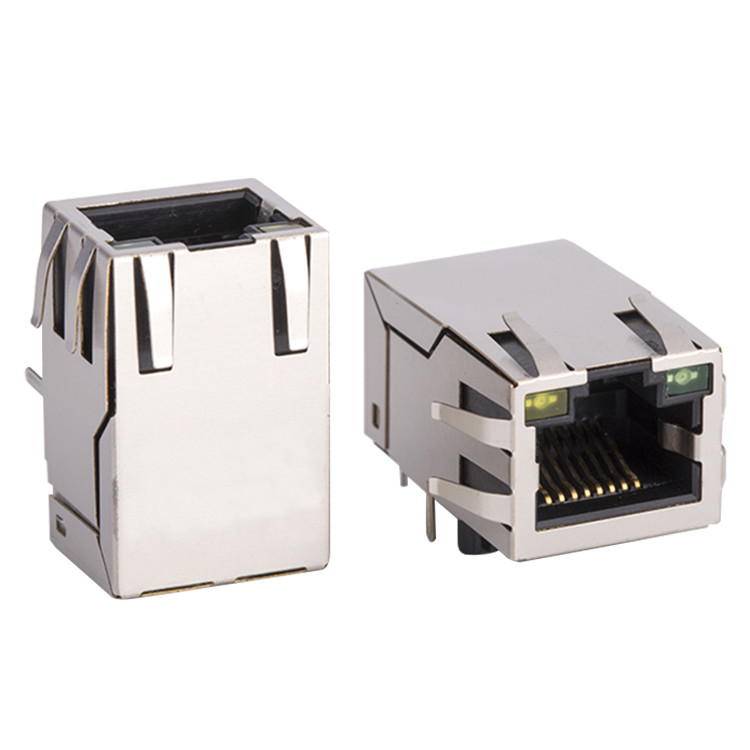

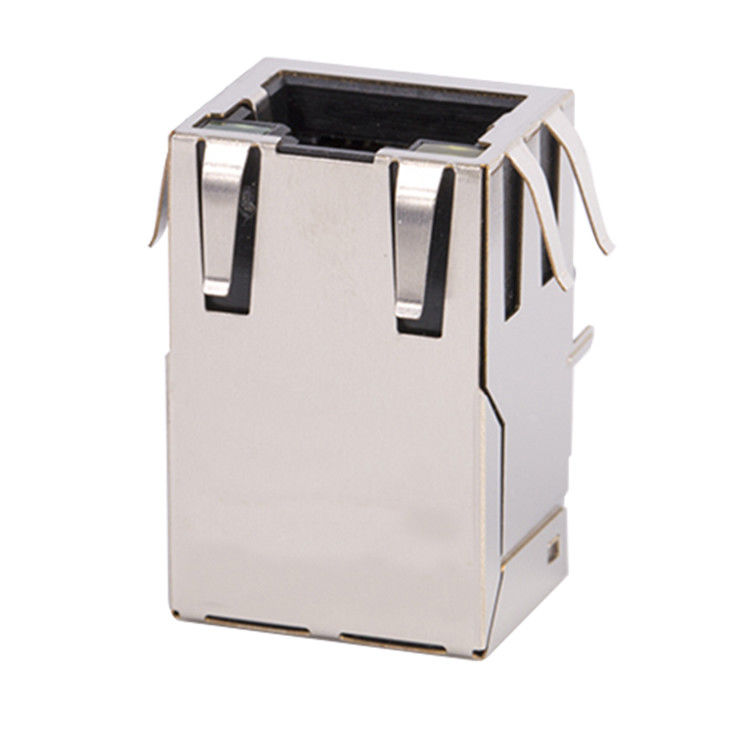

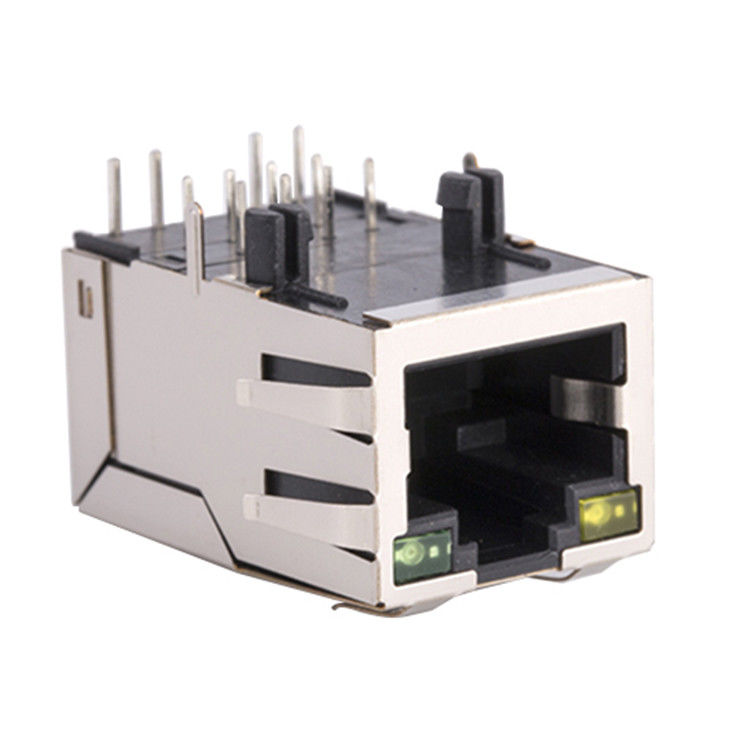

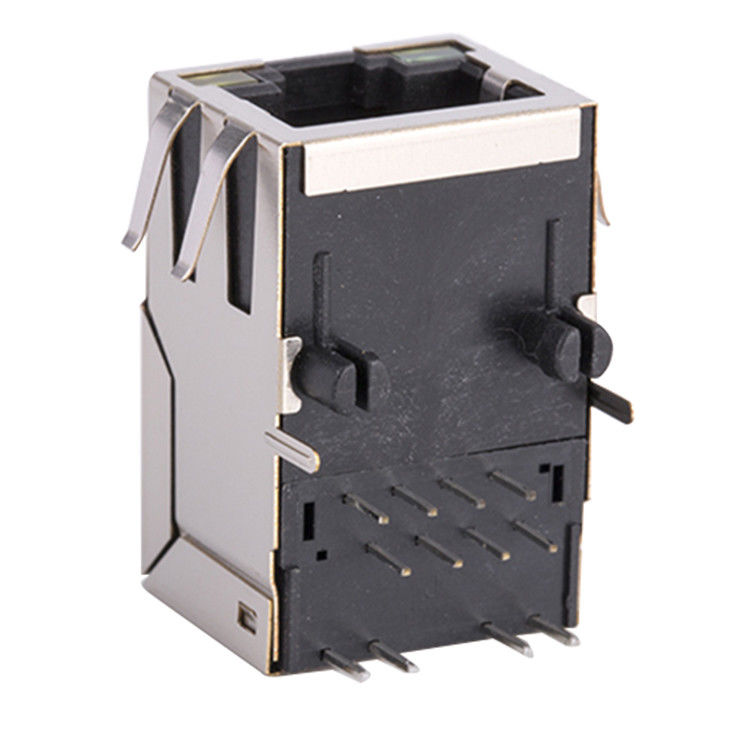

POE RJ45 Connector Single Port 1X1 Tab-Up 10/100Base-Tx TM311B01DAB213007 POE RJ45 Connector Single Port 1X1 Tab-Up 10/100Base-Tx TM311B01DAB213007 POE RJ45 Connector Single Port 1X1 Tab-Up 10/100Base-Tx TM311B01DAB213007 POE RJ45 Connector Single Port 1X1 Tab-Up 10/100Base-Tx TM311B01DAB213007
Contact Now

POE RJ45 Connector Single Port 1X1 Tab-Up 10/100Base-Tx TM311B01DAB213007

Minimum Order Quantity : 500 piece Price : Supportive
Packaging Details : Tray in Carton Delivery Time : 3 work days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 100kpcs /day
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM311B01DAB213007

Detail Information
CONTACT MATING AREA PLATING: GOLD 6U'' PLATING CONNECTOR TYPE: BLACK
LED OPTION: LEFT YELLOW,RIGHT GREEN NUMBER OF PORTS: 1X1
NUMBER OF CONTACTS: 8 GROUNDING OPTIONS: Panel Ground And PCB Ground
SHIELD PLATING MATERIAL: NICKEL SHIELD EMI TABS: YES
SHIELD: YES ROHS COMPLIANT: YES
PCB MOUNT ANGLE: SIDE ENTRY PACKAGE: DIP
CONNECTOR & CONTACT TERMINAATES TO: Printed Circuit Board
High Light:

rj45 8p8c jack

,

rj45 modular socket

,

POE RJ45 Connector Single Port 1X1

Product Description



POE RJ45 Connector with Transformer Single port 1X1 Tab-Up 10/100Base-Tx with LEDS with Side Entry TM311B01DAB213007



RJ45 Connector with Transformer (TM311B01DAB213007) Description:



10/100Base-Tx RJ45 single port 1X1 with LEDS with Side Entry (Right Angle)

Single port 1X1 Tab-Up RJ45 with internal magnetics

Internal magnetics are 100% electrically tested for HI-POT and functionality

Suitable for CAT5&6 fast Ethernet Cable or better UTP

350uHminimum OCL with 8mA bias current

High performance for maximum EMI suppression

Minimum 1500Vrms isolation per IEEE 802.3 requirement

ROHS-6 peak wave solder temperature rating 230℃

Operating temperarure range :-40℃ to +85℃

Storage temperature range :-40℃ to +85℃



RJ45 Without Transformer (TM311B01DAB213007) Attributes:



Model Number TM311B01DAB213007
LENGTH 25.3mm
HOUSING MATERIAL PBT UL94V-0
CONTACT MATING AREA PLATING GOLD 6U'' PLATING
CONNECTOR TYPE RJ45
CONNECTOR MATERIAL COLOR BLACK
LED OPTION LEFT YELLOW,RIGHT GREEN
NUMBER OF PORTS 1X1
NUMBER OF CONTACTS 8
GROUNDING OPTIONS Panel Ground and PCB Ground
SHIELD PLATING MATERIAL NICKEL
SHIELD EMI TABS YES
SHIELD YES
ROHS COMPLIANT YES
PANEL STOP YES
PCB MOUNT ANGLE SIDE ENTRY
PACKAGE DIP
CONNECTOR & CONTACT TERMINAATES TO Printed Circuit Board
LATCH ORIENTATION LATCH DOWN

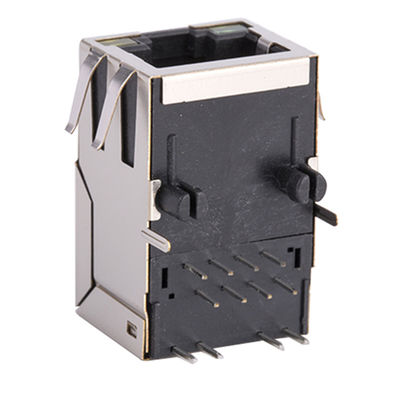

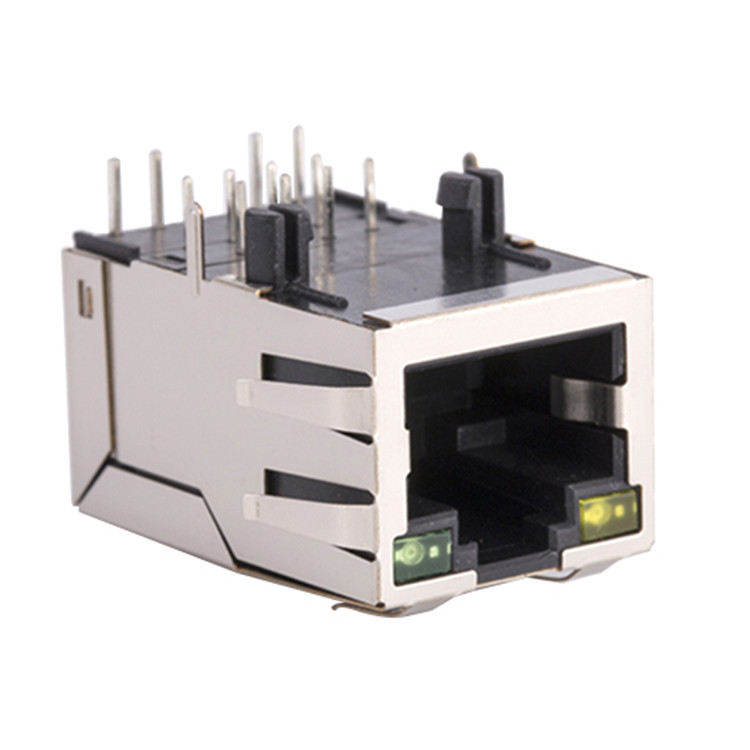

 POE RJ45 Connector Single Port 1X1 Tab-Up 10/100Base-Tx TM311B01DAB213007 0POE RJ45 Connector Single Port 1X1 Tab-Up 10/100Base-Tx TM311B01DAB213007 1POE RJ45 Connector Single Port 1X1 Tab-Up 10/100Base-Tx TM311B01DAB213007 2
