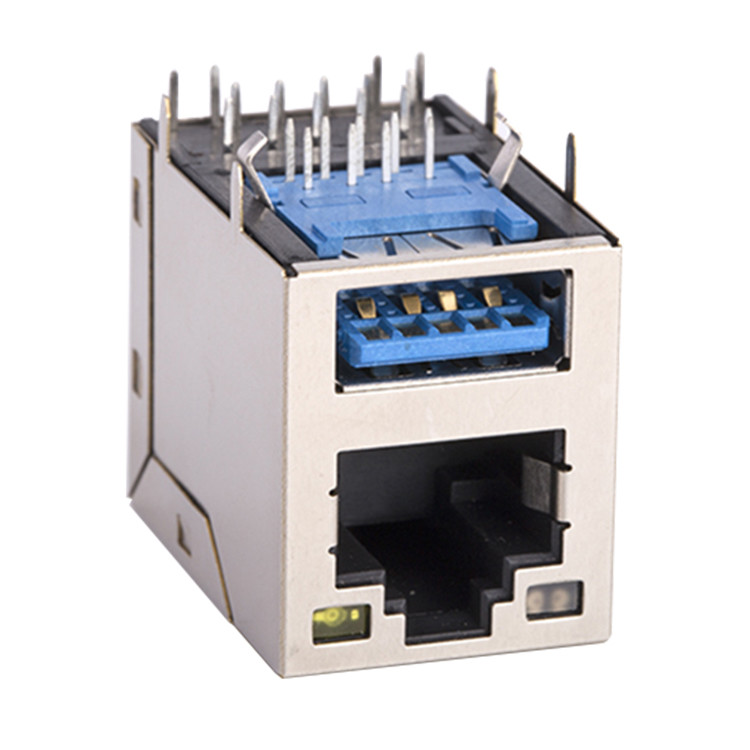

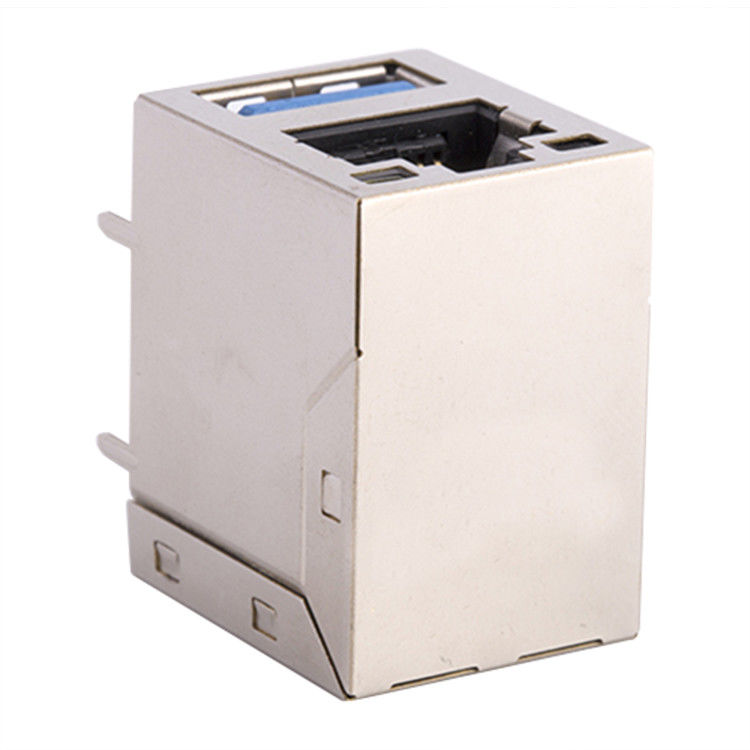

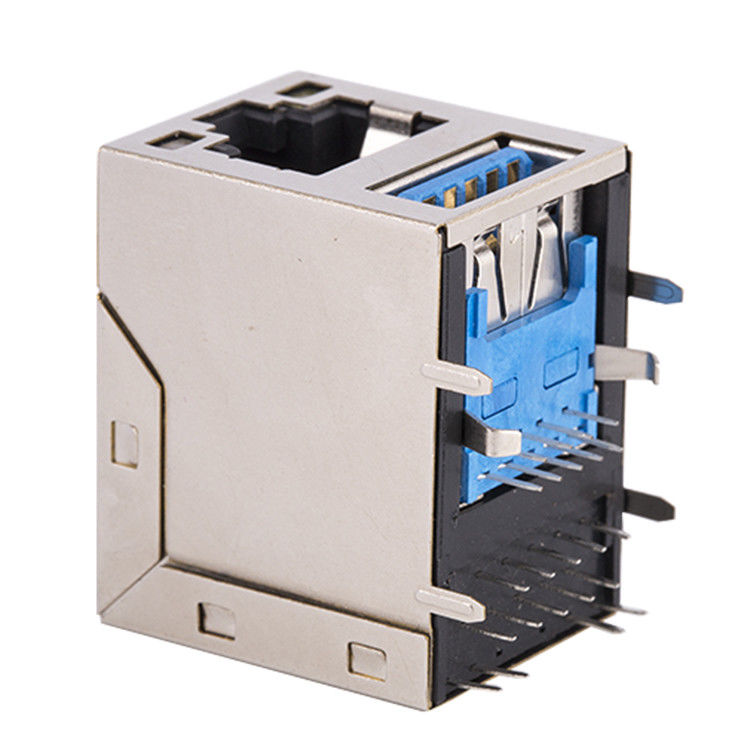

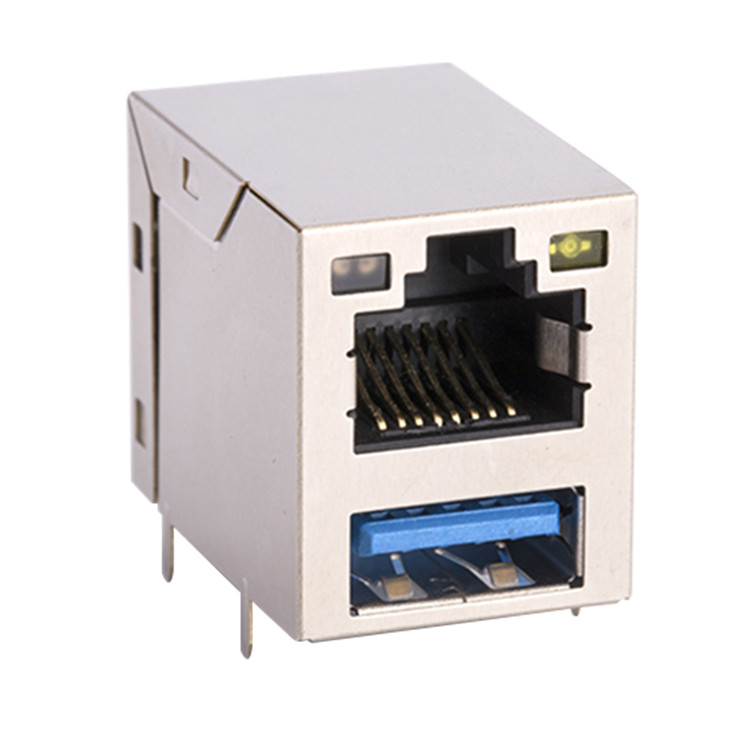

Network Connector Rj45 2X1 Tab Up Rj45 Modular Socket 100 / 1000Base-Tx With Transformer
Network Connector Rj45 2X1 Tab Up Rj45 Modular Socket 100 / 1000Base-Tx With Transformer Network Connector Rj45 2X1 Tab Up Rj45 Modular Socket 100 / 1000Base-Tx With Transformer Network Connector Rj45 2X1 Tab Up Rj45 Modular Socket 100 / 1000Base-Tx With Transformer Network Connector Rj45 2X1 Tab Up Rj45 Modular Socket 100 / 1000Base-Tx With Transformer
Contact Now

Network Connector Rj45 2X1 Tab Up Rj45 Modular Socket 100 / 1000Base-Tx With Transformer

Minimum Order Quantity : 500 piece Price : Supportive
Packaging Details : Tray in Carton Delivery Time : 3 work days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 100kpcs /day
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM611Q31DIA017019

Detail Information
PANEL STOP: YES LENGTH: 25.78mm
SHIELD: YES HOUSING MATERIAL: PBT UL94V-0
CONTACT MATING AREA PLATING: GOLD 6U'' PLATING CONNECTOR TYPE: BLACK
LED OPTION: LEFT GN/OR,RIGHT YELLOW NUMBER OF PORTS: 2X1
NUMBER OF CONTACTS: 12 GROUNDING OPTIONS: Panel Ground And PCB Ground
SHIELD PLATING MATERIAL: NICKEL SHIELD EMI TABS: NO
ROHS COMPLIANT: YES PCB MOUNT ANGLE: SIDE ENTRY
PACKAGE: DIP CONNECTOR & CONTACT TERMINAATES TO: Printed Circuit Board
LATCH ORIENTATION: LATCH DOWN
High Light:

rj45 8p8c jack

,

shielded rj45 jack

,

2X1 Tab Up RJ45 Modular Socket

Product Description

network connector rj45 2X1 Tab Up Rj45 Modular Socket 100 / 1000Base-Tx With Transformer TM611Q31DIA017019



RJ45 Without Transformer (TM611Q31DIA017019) Attributes:



Model Number TM611Q31DIA017019
LENGTH 25.78mm
HOUSING MATERIAL PBT UL94V-0
CONTACT MATING AREA PLATING GOLD FU'' PLATING
CONNECTOR TYPE RJ45
CONNECTOR MATERIAL COLOR BLACK
LED OPTION LEFT GN/OR,RIGHT YELLOW
NUMBER OF PORTS 2X1
NUMBER OF CONTACTS 12
GROUNDING OPTIONS Panel Ground and PCB Ground
SHIELD PLATING MATERIAL NICKEL
SHIELD EMI TABS NO
SHIELD YES
ROHS COMPLIANT YES
PANEL STOP YES
PCB MOUNT ANGLE SIDE ENTRY
PACKAGE DIP
CONNECTOR & CONTACT TERMINAATES TO Printed Circuit Board
LATCH ORIENTATION LATCH DOWN



RJ45 Female Connector (TM611Q31DIA017019) Applications:



10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,

HomePNA,DSL／ADSL and so on.



RJ45 Connector with Transformer (TM611Q31DIA017019) Description:



100/1000Base-Tx RJ45 single port 2X1 with LEDS with Side Entry (Right Angle)

Single port 2X1 Tab Up RJ45 USB with internal magnetics

Internal magnetics are 100% electrically tested for HI-POT and functionality

Suitable for CAT5&6 fast Ethernet Cable or better UTP

350uHminimum OCL with 8mA bias current

High performance for maximum EMI suppression

Minimum 1500Vrms isolation per IEEE 802.3 requirement

ROHS-6 peak wave solder temperature rating 230℃

Operating temperarure range :-40℃ to +85℃

Storage temperature range :-40℃ to +85℃





RJ45 Female Connector (TM611Q31DIA017019) Mechnical Drawing:

Network Connector Rj45 2X1 Tab Up Rj45 Modular Socket 100 / 1000Base-Tx With Transformer 0

Network Connector Rj45 2X1 Tab Up Rj45 Modular Socket 100 / 1000Base-Tx With Transformer 1

Network Connector Rj45 2X1 Tab Up Rj45 Modular Socket 100 / 1000Base-Tx With Transformer 2



Network Connector Rj45 2X1 Tab Up Rj45 Modular Socket 100 / 1000Base-Tx With Transformer 3Network Connector Rj45 2X1 Tab Up Rj45 Modular Socket 100 / 1000Base-Tx With Transformer 4Network Connector Rj45 2X1 Tab Up Rj45 Modular Socket 100 / 1000Base-Tx With Transformer 5
