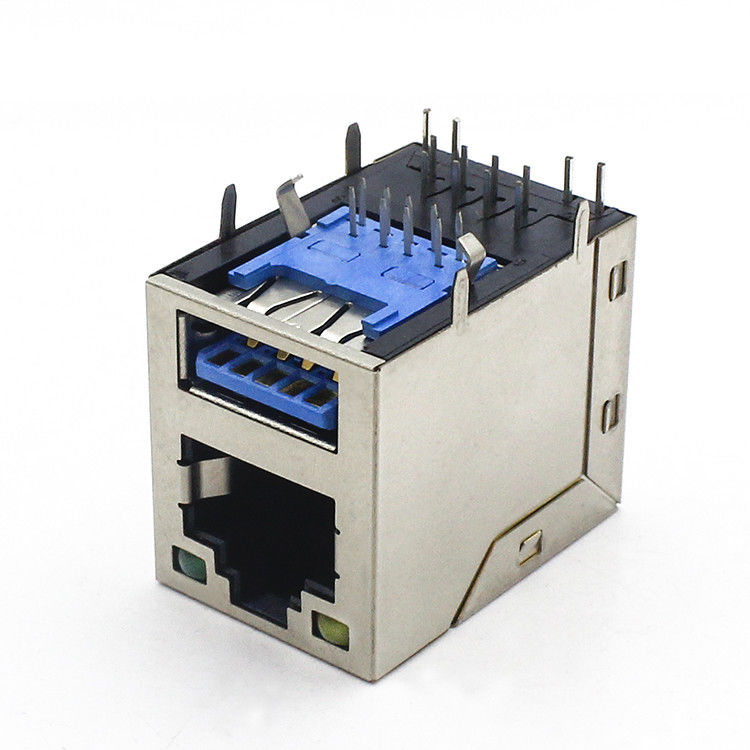

Single Port RJ45 Connector With USB 3.0 8P8C Tab-Up W/ LEDS Shield
Single Port RJ45 Connector With USB 3.0 8P8C Tab-Up W/ LEDS Shield
Contact Now

Single Port RJ45 Connector With USB 3.0 8P8C Tab-Up W/ LEDS Shield

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 50pcs/tray Delivery Time : 20 Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMRJUSB3EX11A

Detail Information
Jack Type: RJ45 Or USB Number Of Positions: 8
Terminals Per Port: 8 LED Option: YES,L-YELLOW/R-GREEN
Shielded EMI Tabs: No Voltage Rating: 125 V
Current Rating: 1.5 A Contact Resistance: 30mΩ
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
Minimal Order: 500pcs Package: 50pcs/tray
Latch Type: Tab-up PCB Mount Angle: 90° Angle
PCB Mount Type: Thru-Hole
High Light:

rj45 modular jack

,

rj45 ethernet jack

Product Description

Single Port RJ45 Connector With USB 3.0 8P8C Tab-Up W/ LEDS Shield



Materials:

Housing : PBT,UL94V-0 ( RoHS )

Contact Finish: T=0.3mm GOLD PLATING FU" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )

Shielding Shell: Steel or spcc

All materials mates with modulat plug conforming to FCC part 68. subpart F.



Product Structure:

RJ45 Jack

Latch Up

Connector Length: 27.65 mm

Connector Width: 19.15 mm

Connector Height: 30.75 mm

Termimal Solder Pin Length: 2.9 mm

RJ45 PIN NO.8P8C ( 8 positions 8 contacts )

90°Orientation

With LED, let know the connection status

With Shield,can be customized as required

We Support Custom service as required






RJ45 Female Connector (TMRJUSB3EX11A) Mechnical Drawing:

Single Port RJ45 Connector With USB 3.0 8P8C Tab-Up W/ LEDS Shield 0
