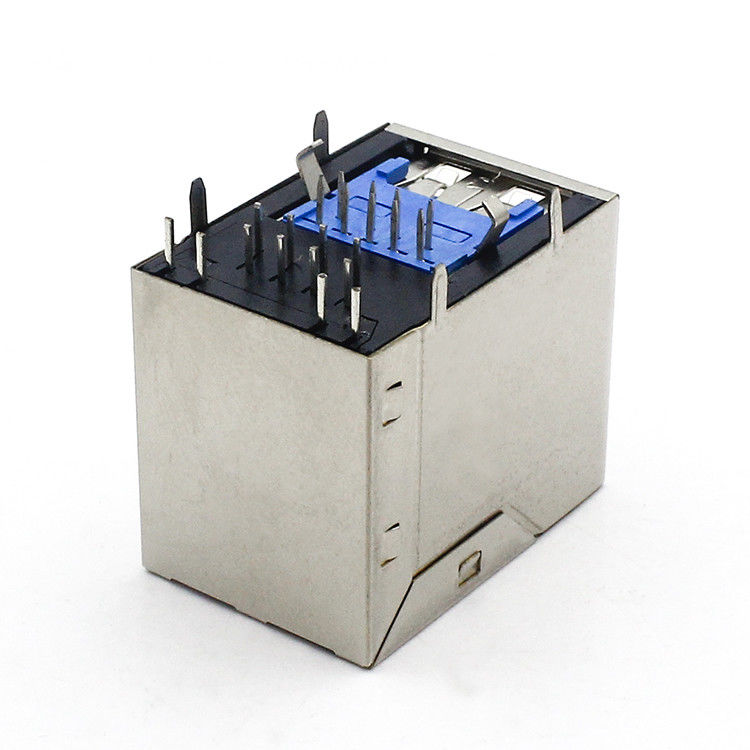

Integrated Rj45 Single Port USB 3.0 Connector With Shield Leds TMRJUSB3EX11A
Integrated Rj45 Single Port USB 3.0 Connector With Shield Leds TMRJUSB3EX11A
Contact Now

Integrated Rj45 Single Port USB 3.0 Connector With Shield Leds TMRJUSB3EX11A

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 50pcs/tray Delivery Time : 20 Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMRJUSB3EX11A

Detail Information
Current Rating: 1.5 A Shielded EMI Tabs: No
Product Type : RJ45 With USB Connector Jack Type: RJ45 Or USB
Number Of Positions: 8 Terminals Per Port: 8
LED Option: YES,L-YELLOW/R-GREEN Voltage Rating: 125 V
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
Minimal Order: 500pcs Package: 50pcs/tray
High Light:

rj45 modular jack

,

rj45 ethernet jack

,

RJ45 Single Port USB 3.0 Connector

Product Description

Single port Integrated Rj45 USB 3.0 connector with Shield and Leds TMRJUSB3EX11A





RJ45 Without Transformer (TMRJUSB3EX11A) Attributes:



Model: TMRJUSB3EX11A
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 USB Connector
Jack Type: RJ45 USB
Number of Positions : 8
Terminals per Port: 8
LED Option: YES,L-YELLOW/R-GREEN
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Delivery Time: 20 Days
Supply Ability: 5KK/year



RJ45 Female Connector (TMRJUSB3EX11A) Mechnical Drawing:

Integrated Rj45 Single Port USB 3.0 Connector With Shield Leds TMRJUSB3EX11A 0
