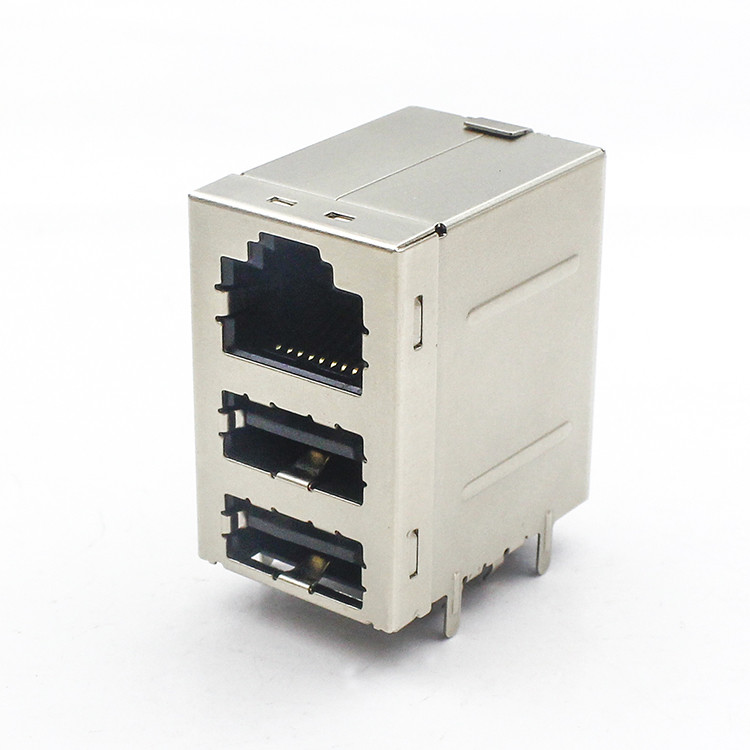

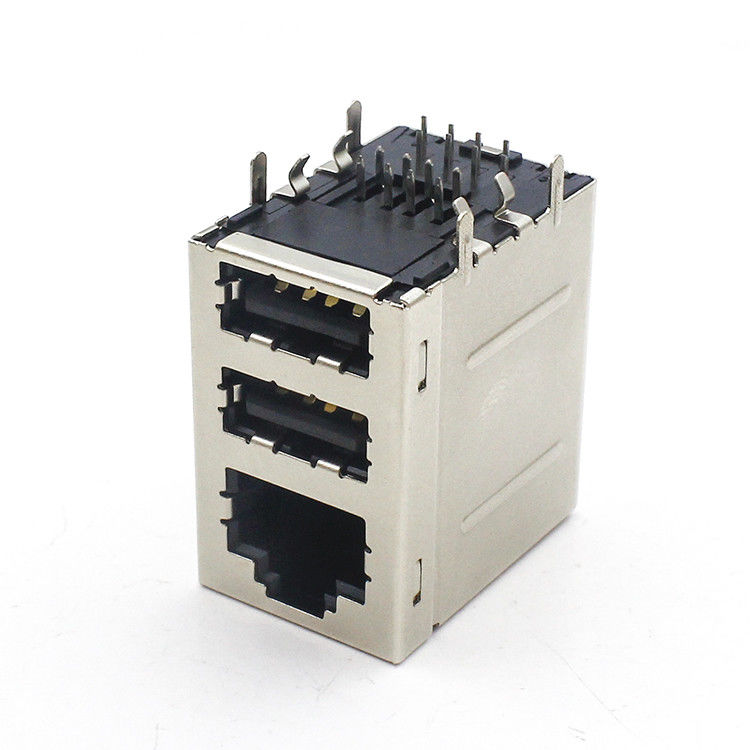

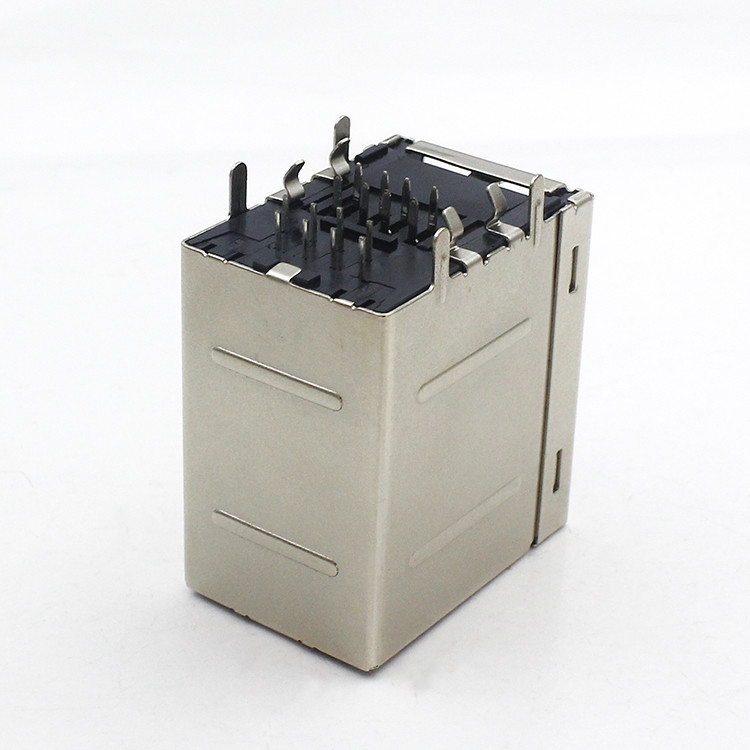

Modular RJ45 USB Connector With Dual USB 2.0 No Transformer TMRJUSB2EXX12
Modular RJ45 USB Connector With Dual USB 2.0 No Transformer TMRJUSB2EXX12 Modular RJ45 USB Connector With Dual USB 2.0 No Transformer TMRJUSB2EXX12 Modular RJ45 USB Connector With Dual USB 2.0 No Transformer TMRJUSB2EXX12
Contact Now

Modular RJ45 USB Connector With Dual USB 2.0 No Transformer TMRJUSB2EXX12

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 50pcs/tray,500pcs/carton Delivery Time : 20 Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMRJUSB2EXX12

Detail Information
Number Of Positions: 8+4+4 Terminals Per Port: 8+4+4
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
Minimal Order: 500pcs Package: 50pcs/tray
High Light:

rj45 modular jack

,

rj45 ethernet jack

,

No Transformer Modular RJ45 USB Connector

Product Description

RJ45 Connector With Dual Usb 2.0 Modular Jack Without Transformer TMRJUSB2EXX12



Materials:


Housing : PBT,UL94V-0 ( RoHS )
Contact Finish: T=0.3mm GOLD PLATING FU" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
Shielding Shell: Steel or spcc
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Product Structure:


RJ45 Jack
Latch Up
Connector Length: 27.50 mm
Connector Width: 19.05 mm
Connector Height: 31.00 mm
Termimal Solder Pin Length: 2.7 mm
RJ45 PIN NO.8P8C ( 8 positions 8 contacts )
90°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required



RJ45 Without Transformer (TMRJUSB2EXX12) Attributes:



Model: TMRJUSB2EXX12
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type: RJ45 with USB Connector
Jack Type: RJ45 or USB
Number of Positions : 8+4+4
Terminals per Port: 8+4+4
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 500pcs
Package: 50pcs/tray
Supply Ability: 5KK/year



RJ45 Female Connector (TMRJUSB2EXX12) Mechnical Drawing:

Modular RJ45 USB Connector With Dual USB 2.0 No Transformer TMRJUSB2EXX12 0
