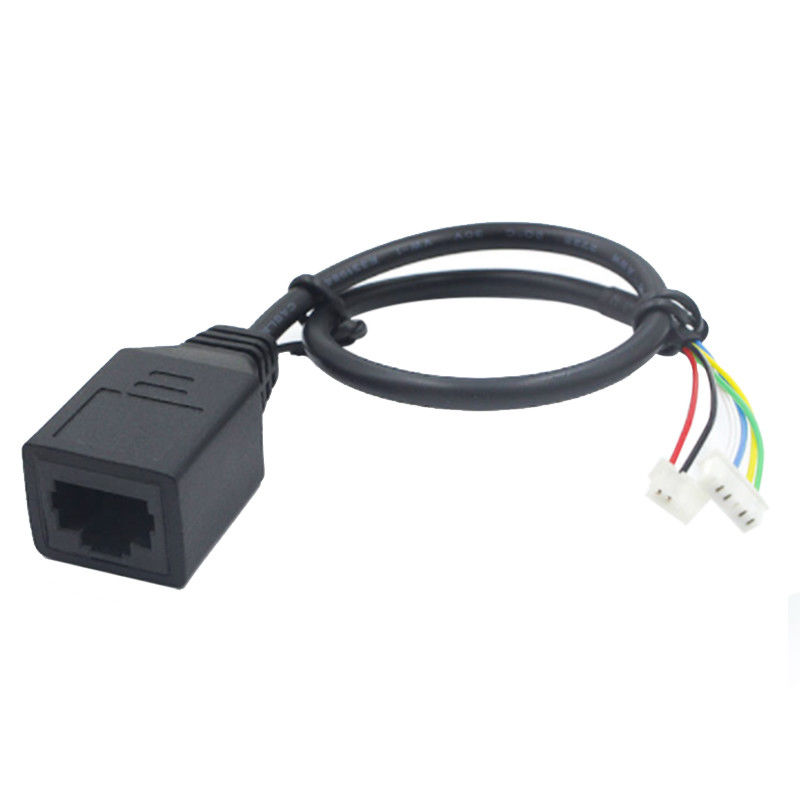

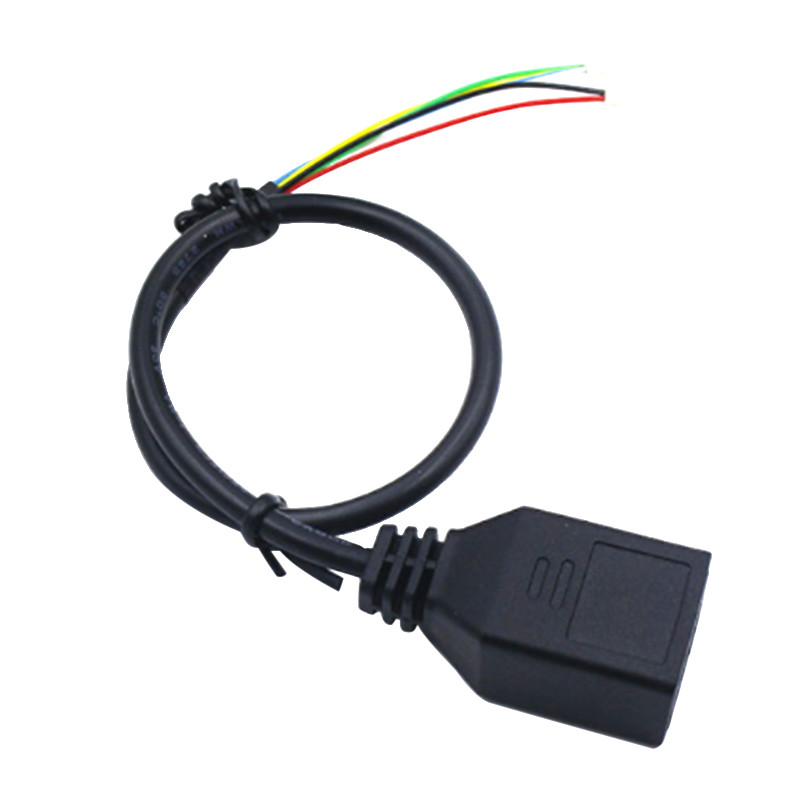

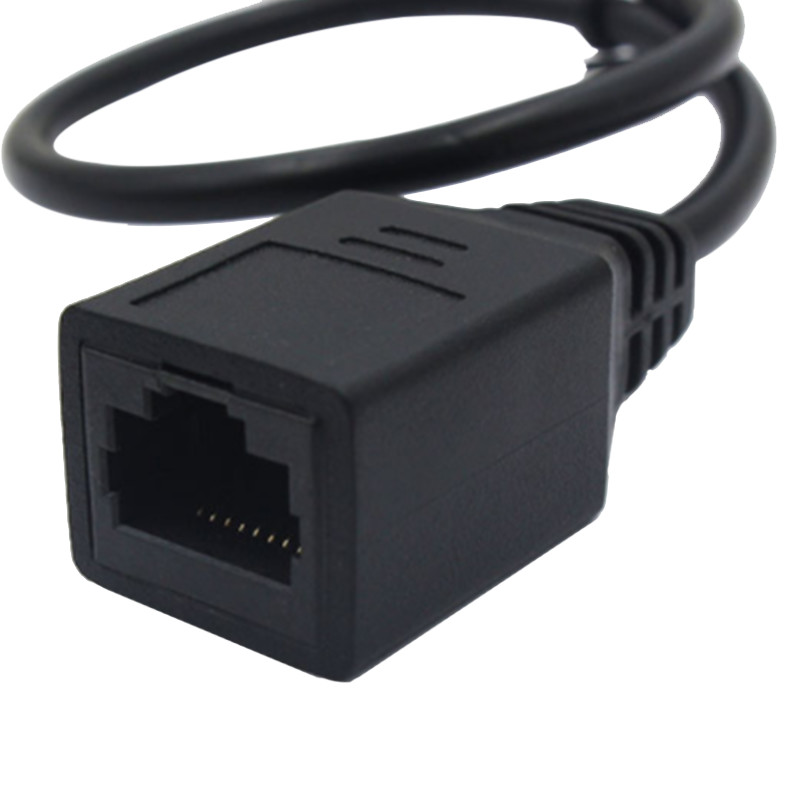

Ethernet Connector Cable RJ45 To 1.0 HSG Tieline Black PVC UL94V-0 RoHS

Product Description

Black PVC UL94V-0(RoHS) ethernet RJ45 to 1.0 HSG tieline connector cable TMCABLE060029

RJ45 Connector Cable(TMCABLE060029) Materials:
CONNECTOR P1(RJ11 JACK):
Housing:PBT,BLACK,UL94V-0( RoHS )
Contact material:OD=0.2*0.35mm flat needle nickel plating, tin plating, contact area gold plating( RoHS )
Gold plating:Fu”Optional
Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all
CONNECTOR P2(4P/6P HSG):
Housing:PA66,BLACK,UL94V-0( RoHS )
Contact material:Copper alloy( RoHS )
Shielding Shell: Copper alloy with Nickel Plating over all
CABLE: 28AWG*6C copper OD4.0mm BLACK PVC( RoHS )
MOLDING: PVC Black UL94V-0(RoHS)
All materials mates with modulat plug conforming to FCC part 68. subpart F.

RJ45 Connector Cable(TMCABLE060029) Product Structure:

RJ45 CABLE
CABLE Length: 280 mm

Bushing: PVC BLACK OD4.5mm L=20mm
Tieline :1.25 PH
HSG: PA66 WHITE 1.25 HSG 4P
HSG:PA66 WHITE 1.25 HSG 6P
Molding-Outside:PVC45P BLACK
Molding-Inside:PE White
RJ45 JACK:8P8C PBT FU BLACK
Cable: 28AWG*6C OD:4.0m BLACK
Connector: 8P8C ( 8 positions 8 contacts )
Without LED, let know the connection status
Without Shield,can be customized as required

RJ45 Connector Cable(TMCABLE060029) Attributes:

RJ45 Connector Cable ( TMCABLE060029) Mechnical Drawing:
