USB B Male To Female Waterproof RJ45 Cable For Printer Signal Transmission

Minimum Order Quantity :	500	Price :	Supportive
Packaging Details :	Neutral packing or custom packing with label.	Delivery Time :	20days
Payment Terms :	T/T, Western Union,Paypal	Supply Ability :	100000 Piece/Pieces per Month

Place of Origin:	Guangdong, China (Mainland)	Brand Name:	TM
Certification:	CE/RoHS/ISO9001	Model Number:	OEM

Detail Information
Color:	Customize	Functions:	Customize
Dimensions:	Customize	MOQ:	500
ODM:	YES	OEM:	YES
High Light:	Printer Signal Transmission Waterproof RJ45 Cable , USB B Waterproof RJ45 Cable , Waterproof RJ45 USB B Cable

Product Description

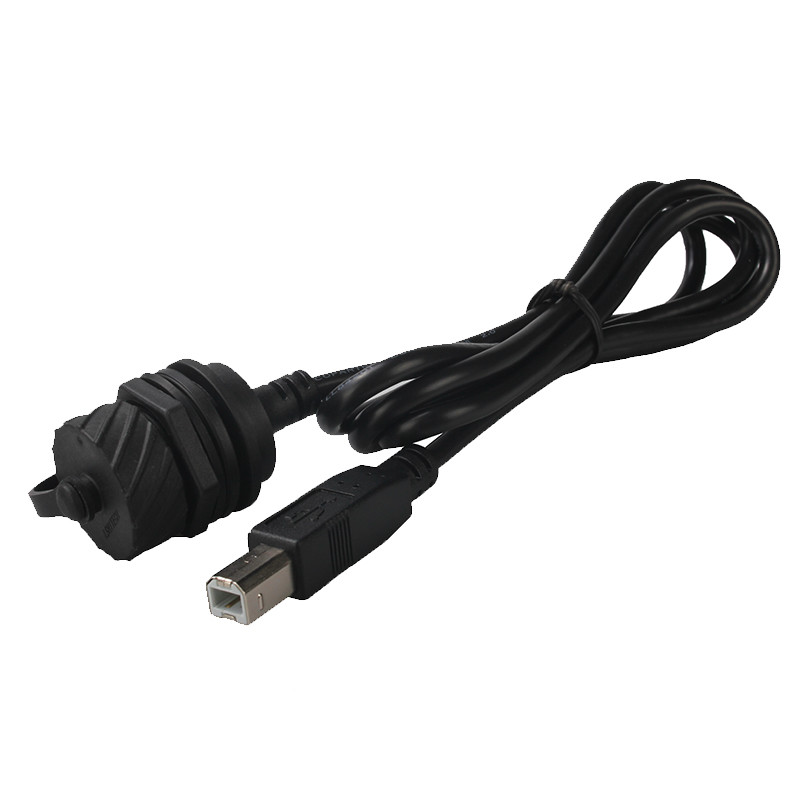

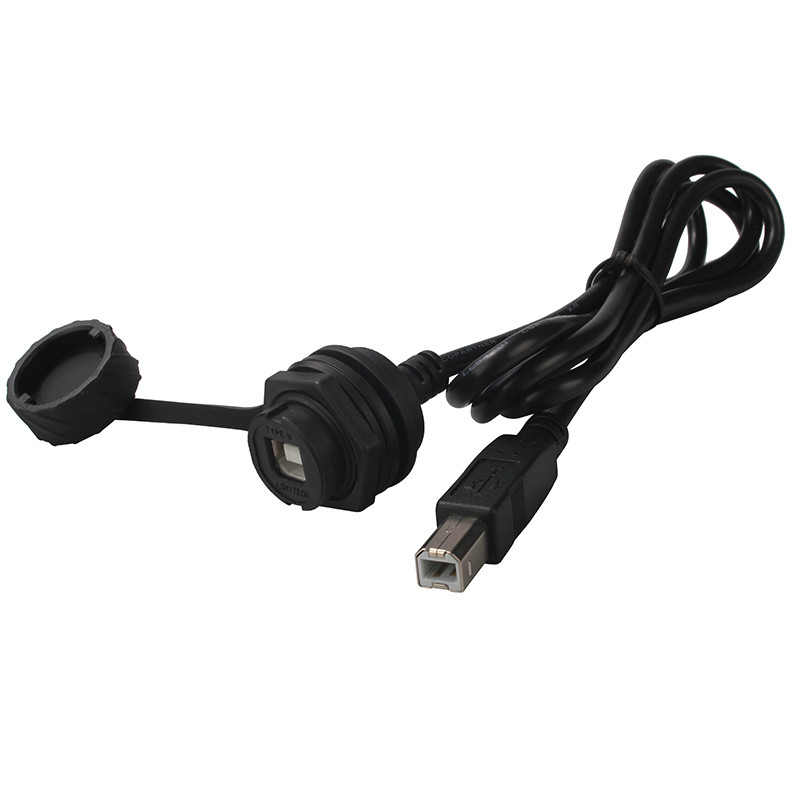

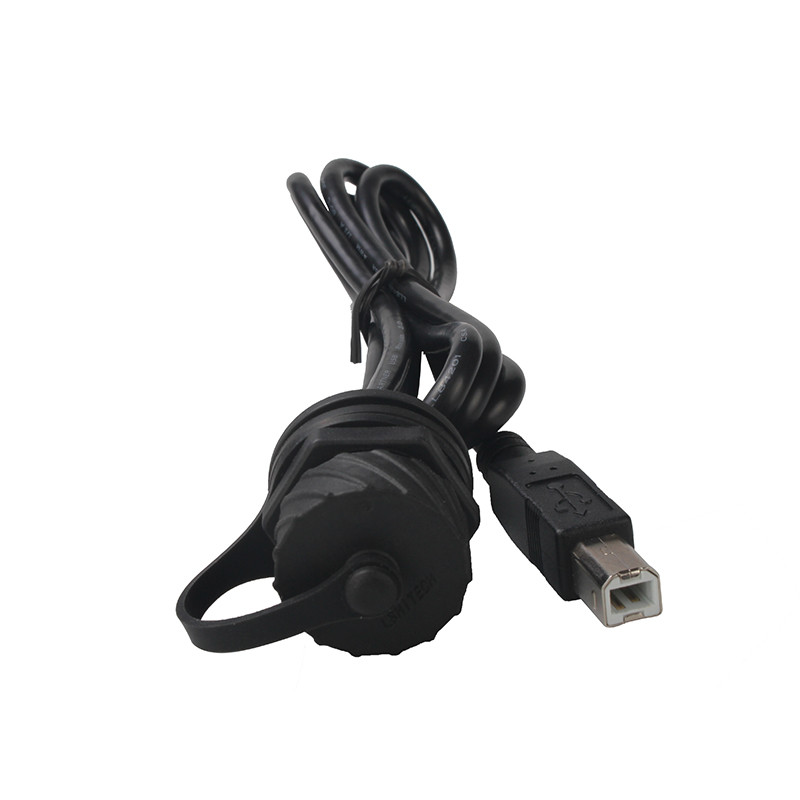

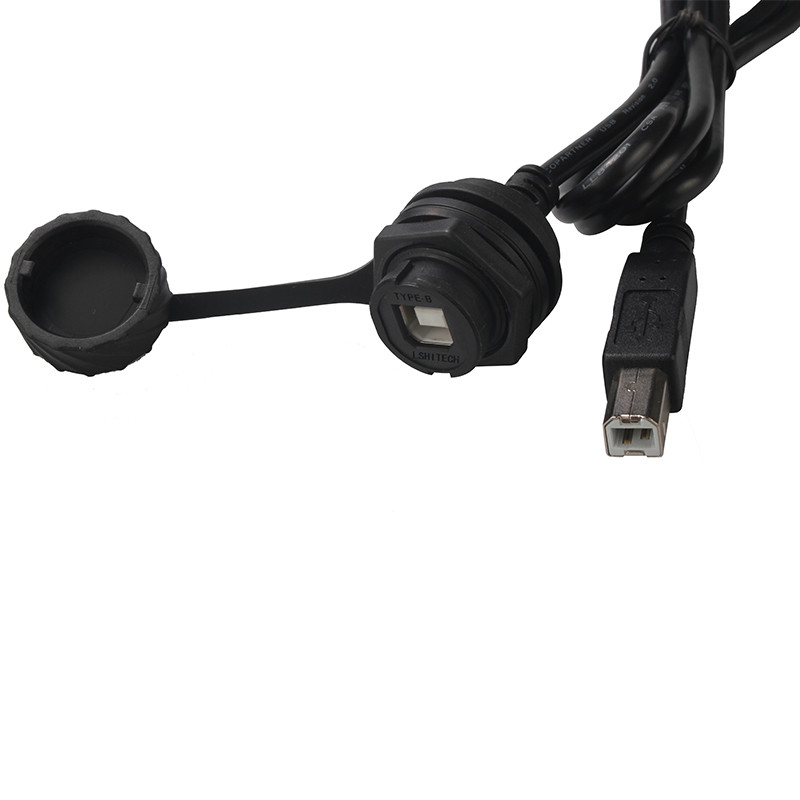

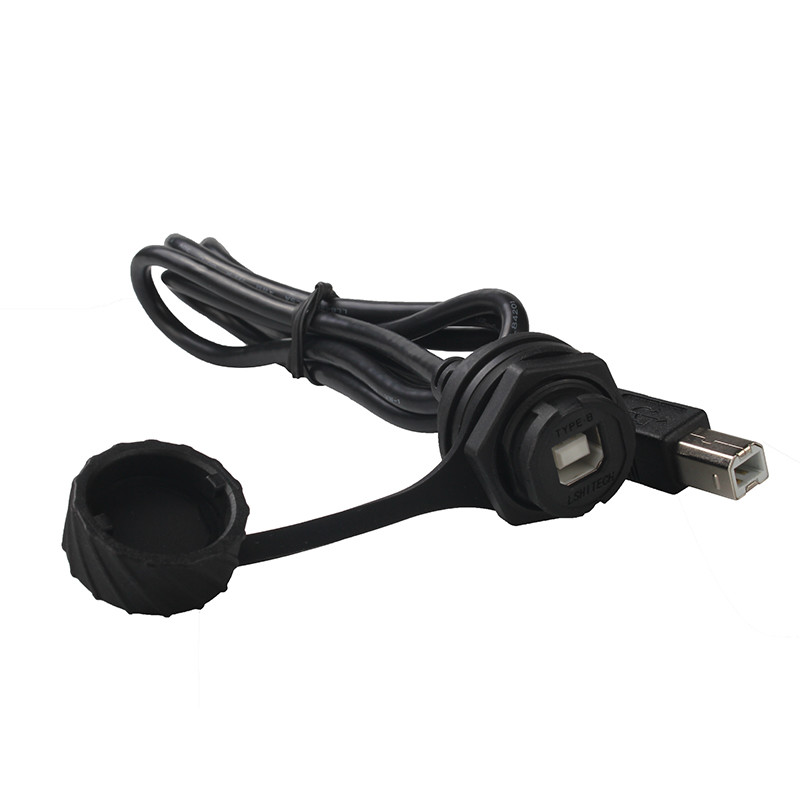

USB B Male to Female Waterproof Cable For Printer Signal Transmission With Dust Cover Cable Support fixed on panel

USB B Male to Female Waterproof Cable (TMZJX021092)Attributes:

Model:	TMZJX021092
Place of Origin:	Guangdong of China
Certification:	UL,Rohs,Reach,ISO9001
Product Type :	USB B F/M Waterproof Cable
Jack Type:	RJ45
Number of Positions :	8
Terminals per Port:	8
LED Option:	No
Shielded EMI Tabs:	No
Voltage rating:	125 V
Current rating:	1.5 A
Contact resistance:	30mΩ
Insulation resistance:	500 MΩ MIN @ 500V DC
Dielectric resistance:	1000V AC RMS 50Hz. 1MIN
Durrability:	750 CYCLES MIN
Minimal Order:	100pcs
Manner of packing :	50pcs/tray,500pcs/case
Delivery Time:	20 Days
Supply Ability:	5KK/year

USB B Male to Female Waterproof Cable (TMZJX021092)Materials:

Housing : ABS,UL94V-0 ( RoHS )
Contact Finish: T=0.30 mm GOLD PLATING 6U" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
All materials mates with modulat plug conforming to FCC part 68. subpart F.

Shielding Shell: Stainless Steel.

USB B Male to Female Waterproof Cable (TMZJX021092)Product Structure:
USB B Male to Female Waterproof Cable

Cable: 28AWG*1P+24AWG*2C BALCK OD4.5mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without led, let know the connection status
With Shield,can be customized as required
We Support Custom service as required

USB B Male to Female Waterproof Cable (TMZJX021092)Mechnical Drawing:
