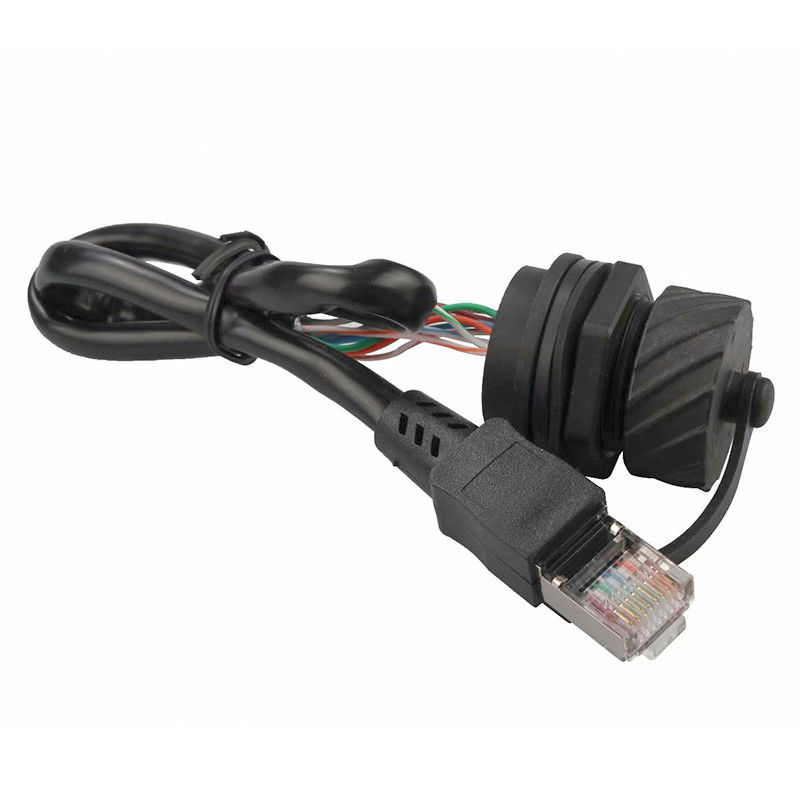

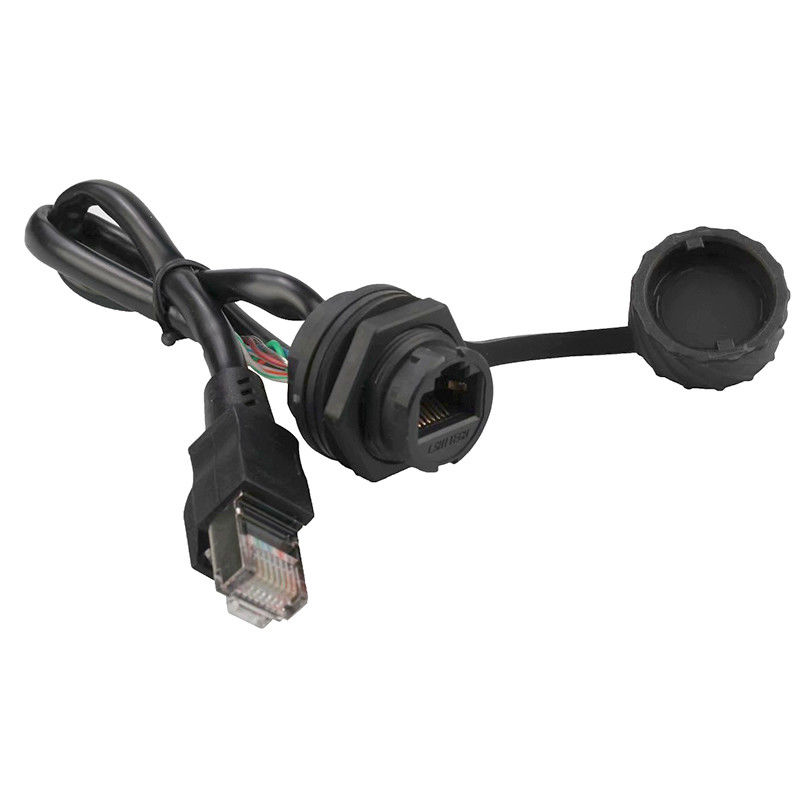

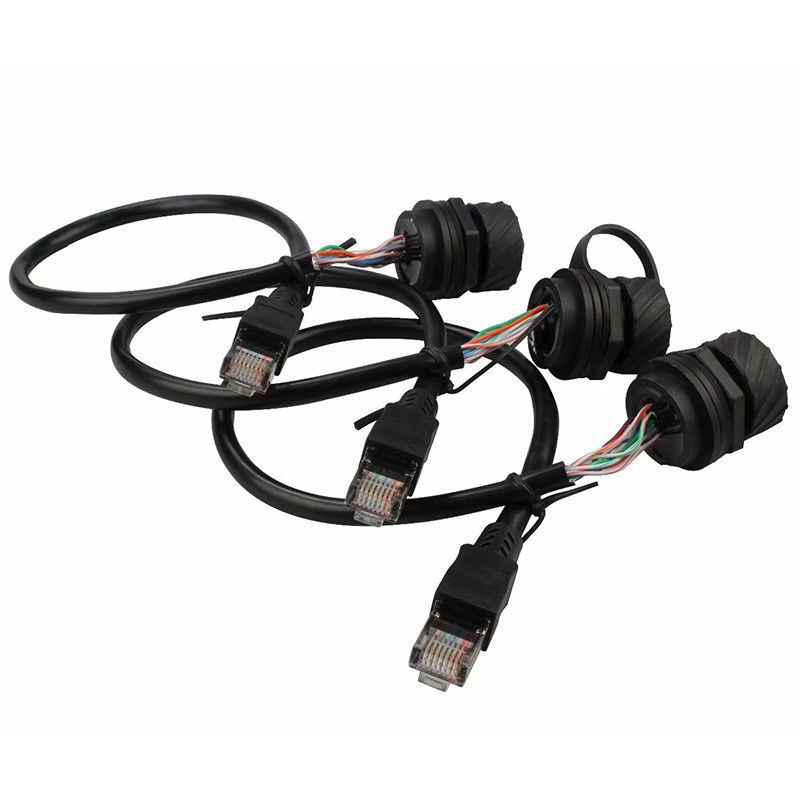

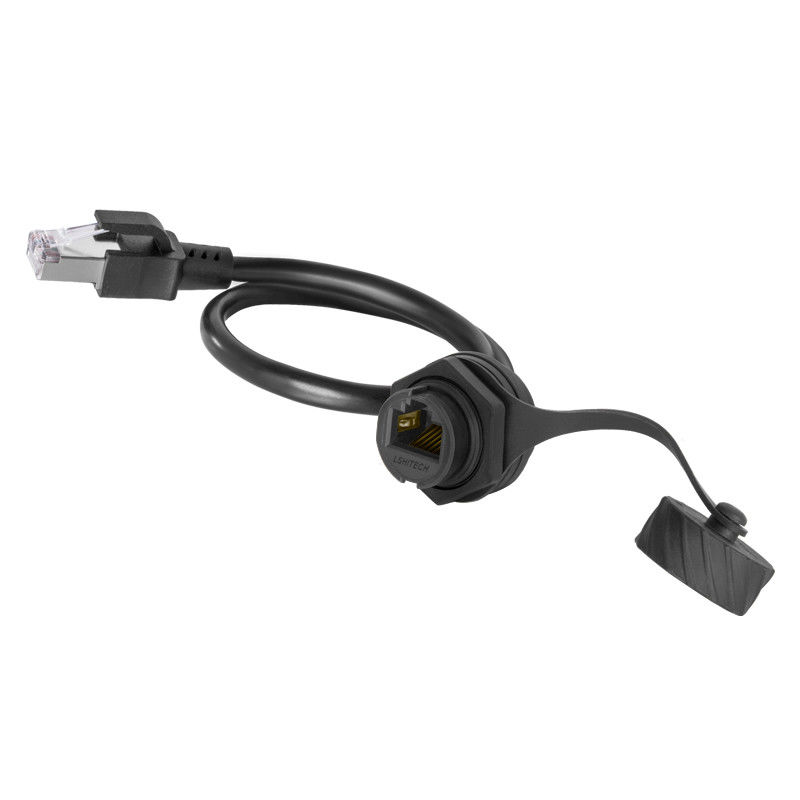

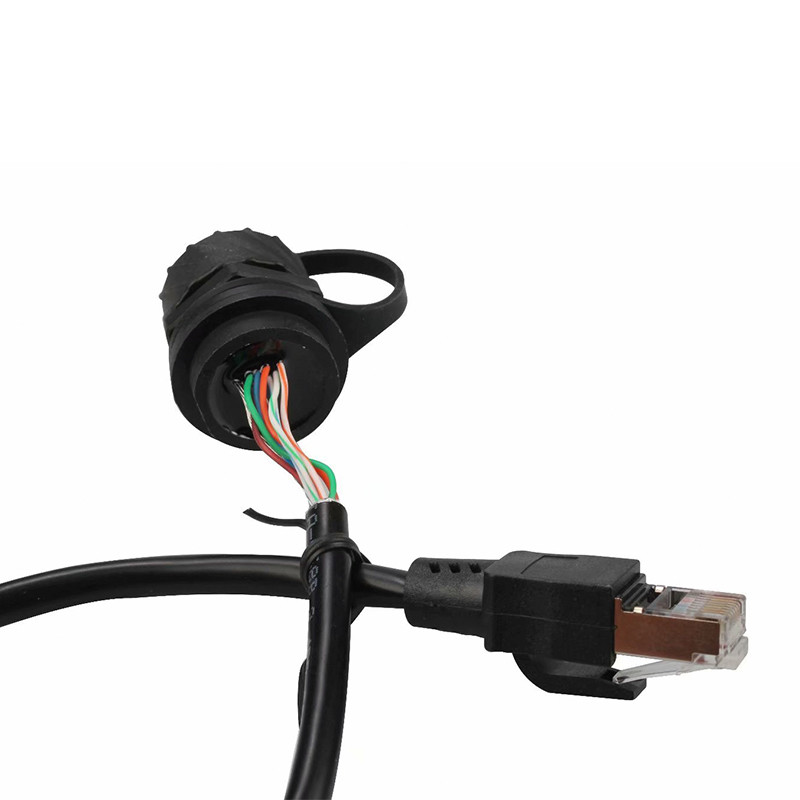

Male To Female Waterproof RJ45 Network Cable With Dust Cover
Male To Female Waterproof RJ45 Network Cable With Dust Cover Male To Female Waterproof RJ45 Network Cable With Dust Cover Male To Female Waterproof RJ45 Network Cable With Dust Cover Male To Female Waterproof RJ45 Network Cable With Dust Cover Male To Female Waterproof RJ45 Network Cable With Dust Cover
Contact Now

Male To Female Waterproof RJ45 Network Cable With Dust Cover

Minimum Order Quantity : 500 Price : Supportive
Packaging Details : Customized or a small bubble bag, and then carton box Delivery Time : 20days
Payment Terms : T/T, Western Union,Paypal Supply Ability : 100000 Piece/Pieces per Month
Place of Origin: Guangdong, China (Mainland) Brand Name: TM
Certification: CE/RoHS/ISO9001 Model Number: OEM

Detail Information
Board Thickness: Double Layer Color: Customize
Functions: Customize Dimensions: Customize
MOQ: 500 ODM: YES
OEM: YES
High Light:

Waterproof RJ45 Network Cable

,

Male To Female RJ45 Network Cable

,

Male To Female Waterproof RJ45 Cable

Product Description

RJ45 Male to Female Network Cable With Waterproof Sets & Dust cover For Outdoors Support fixed on panel



RJ45 Male to Female Network Cable (TMCABLE060246)Attributes:

Model: TMCABLE060246
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 F/M Network Cable
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 100pcs
Manner of packing : 50pcs/tray,500pcs/case
Delivery Time: 20 Days
Supply Ability: 5KK/year



RJ45 Male to Female Network Cable (TMCABLE060246)Materials:

Housing : ABS,UL94V-0 ( RoHS )
Contact Finish: T=0.30 mm GOLD PLATING 6U" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
All materials mates with modulat plug conforming to FCC part 68. subpart F.

Shielding Shell: Stainless Steel.


RJ45 Male to Female Network Cable (TMCABLE060246)Product Structure:
RJ45 F/M Network Cable
PLUG :US PLUG 8P8C W/0 SHIELD
CONN: RJ45 JACK 8P8C
CABLE: CAT5E UTP 24AWG*4P BLACK OD5. 5mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without led, let know the connection status
With Shield,can be customized as required
We Support Custom service as required



RJ45 Male to Female Network Cable (TMCABLE060246)Mechnical Drawing:

Male To Female Waterproof RJ45 Network Cable With Dust Cover 0
