ODM Male To Female Waterproof RJ45 Cable For Outdoor

Minimum Order Quantity :	500	Price :	Supportive
Packaging Details :	Customized or a small bubble bag, and then carton box	Delivery Time :	20days
Payment Terms :	T/T, Western Union,Paypal	Supply Ability :	100000 Piece/Pieces per Month

Place of Origin:	Guangdong, China (Mainland)	Brand Name:	TM
Certification:	CE/RoHS/ISO9001	Model Number:	OEM

Detail Information
Color:	Customize	Functions:	Customize
Dimensions:	Customize	MOQ:	500
ODM:	YES	OEM:	YES
High Light:	ODM Waterproof RJ45 Cable , Outdoor Waterproof RJ45 Cable , Waterproof Male To Female RJ45 Cable

Product Description

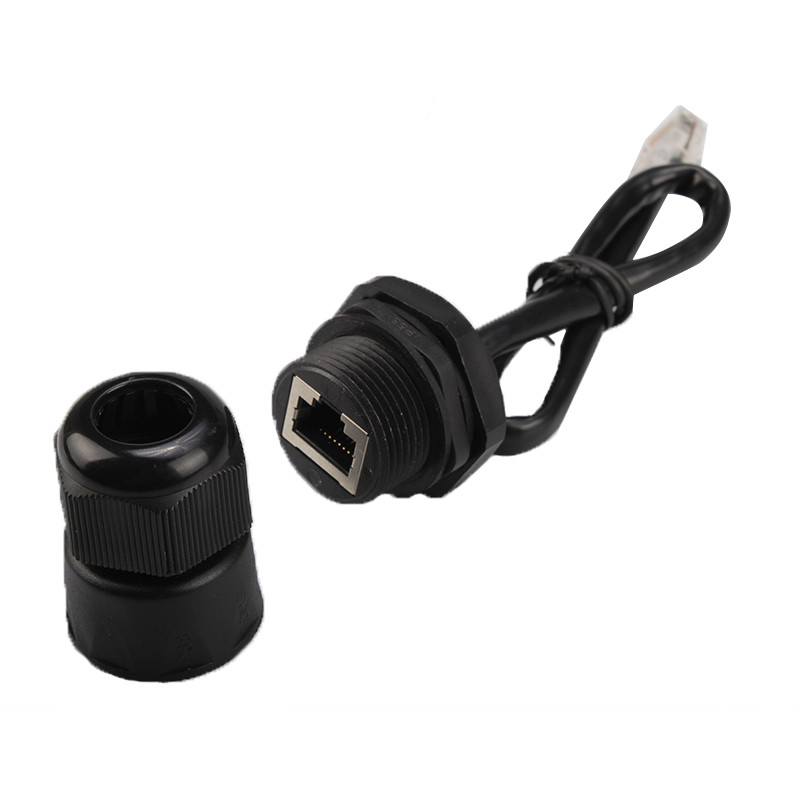

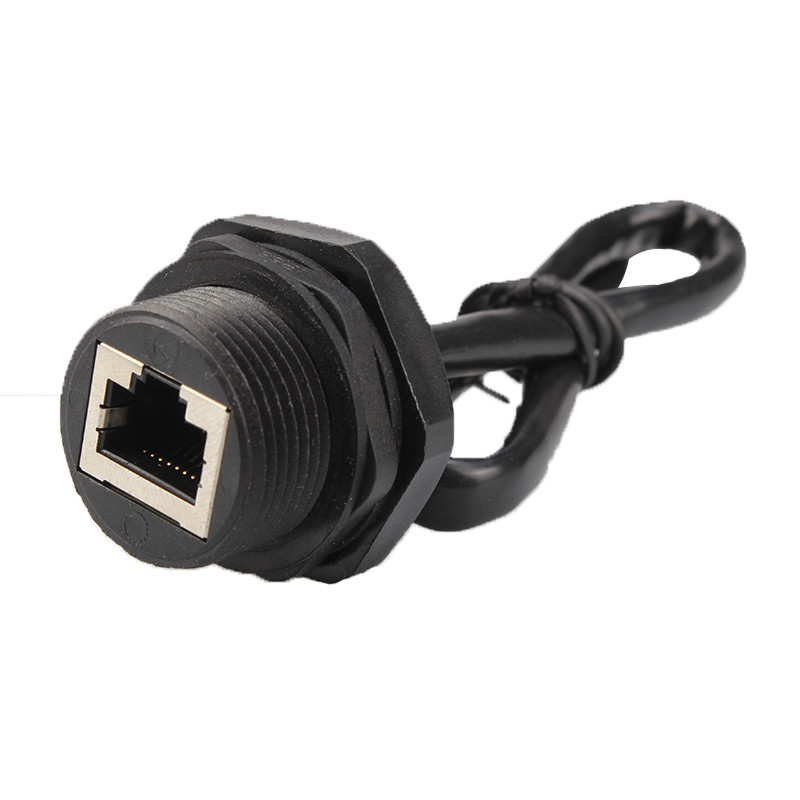

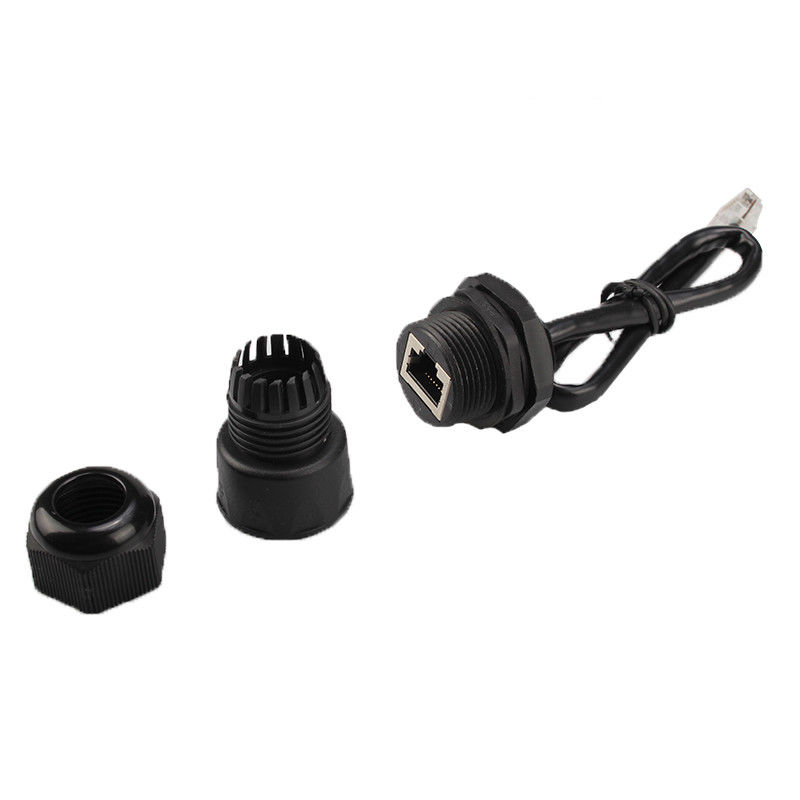

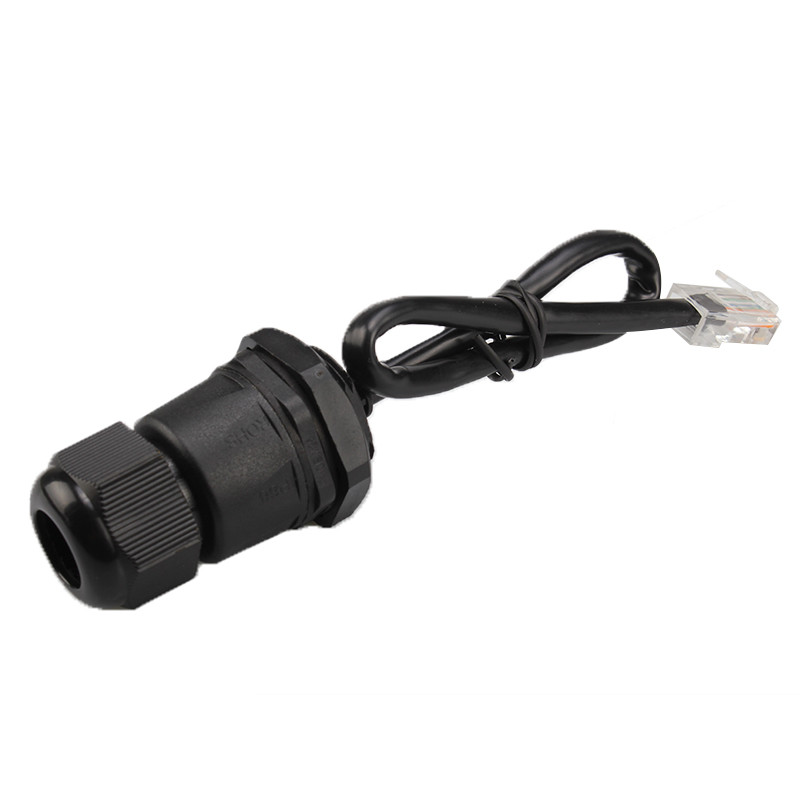

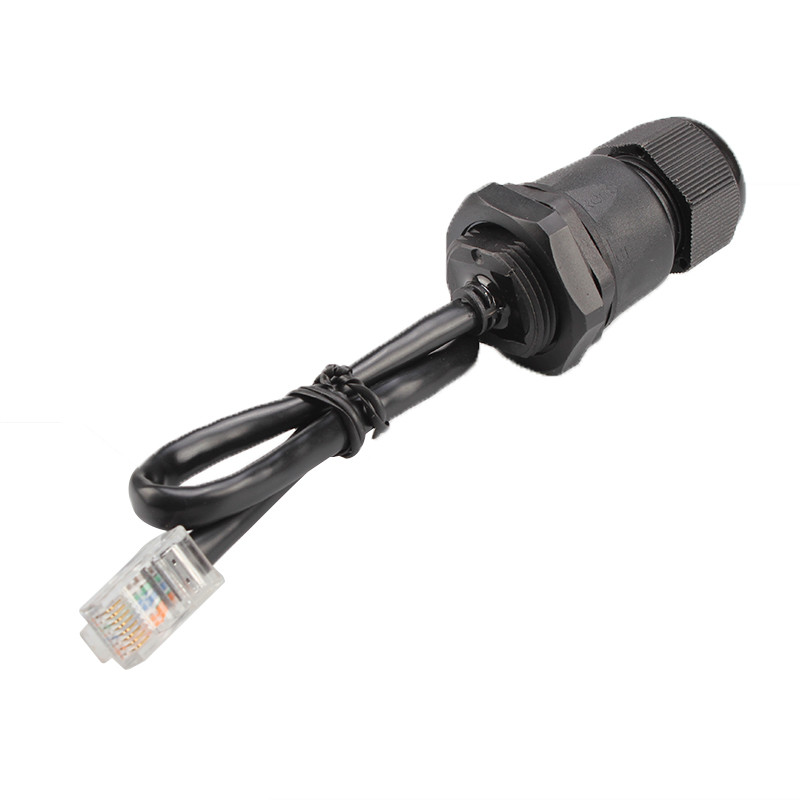

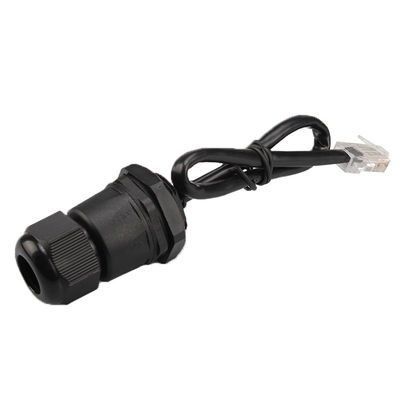

RJ45 Male to Female Network Cable With Waterproof Sets For outdoors

RJ45 Male to Female Network Cable (TMCABLE060245)Attributes:

Model:	TMCABLE060245
Place of Origin:	Guangdong of China
Certification:	UL,Rohs,Reach,ISO9001
Product Type :	RJ45 F/M Network Cable
Jack Type:	RJ45
Number of Positions :	8
Terminals per Port:	8
LED Option:	No
Shielded EMI Tabs:	No
Voltage rating:	125 V
Current rating:	1.5 A
Contact resistance:	30mΩ
Insulation resistance:	500 MΩ MIN @ 500V DC
Dielectric resistance:	1000V AC RMS 50Hz. 1MIN
Durrability:	750 CYCLES MIN
Minimal Order:	100pcs
Manner of packing :	50pcs/tray,500pcs/case
Delivery Time:	20 Days
Supply Ability:	5KK/year

RJ45 Male to Female Network Cable (TMCABLE060245)Materials:

Housing : ABS,UL94V-0 ( RoHS )
Contact Finish: T=0.30 mm GOLD PLATING 6U" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
All materials mates with modulat plug conforming to FCC part 68. subpart F.

Shielding Shell: Stainless Steel.

RJ45 Male to Female Network Cable (TMCABLE060245)Product Structure:
RJ45 Modular Jack
Connector Length: 27.6 mm
Connector Width: 14.40 mm
Connector Height: 16.00 mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without led, let know the connection status
With Shield,can be customized as required
We Support Custom service as required

RJ45 Male to Female Network Cable (TMCABLE060245)Mechnical Drawing:
