Home ProductsRJ45 Extension CableUL94V 0 RJ45 Extension Cable 8p8c Female Socket To Cold Pressed Terminal
UL94V 0 RJ45 Extension Cable 8p8c Female Socket To Cold Pressed Terminal
UL94V 0 RJ45 Extension Cable 8p8c Female Socket To Cold Pressed Terminal UL94V 0 RJ45 Extension Cable 8p8c Female Socket To Cold Pressed Terminal UL94V 0 RJ45 Extension Cable 8p8c Female Socket To Cold Pressed Terminal UL94V 0 RJ45 Extension Cable 8p8c Female Socket To Cold Pressed Terminal UL94V 0 RJ45 Extension Cable 8p8c Female Socket To Cold Pressed Terminal
Contact Now

UL94V 0 RJ45 Extension Cable 8p8c Female Socket To Cold Pressed Terminal

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 1pcs/bag Delivery Time : 20 Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 300K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMCABLE060131

Detail Information
Number Of Positions: 8 Terminals Per Port: 8
LED Option: No Shielded EMI Tabs: No
Cable Color: Black Durrability: 750 CYCLES MIN
Minimal Order: 1000 Pcs Package: 1pcs/bag
High Light:

UL94V 0 RJ45 Extension Cable

,

UL94V 0 Ethernet Patch Cable

,

TMCABLE060131 RJ45 Extension Cable

Product Description

UL94V 0 RJ45 Extension Cable 8p8c Female Socket To Cold Pressed Terminal



Ethernet RJ45 Patch Cable 8p8c Female Socket To Cold Pressed Terminal Extension



Ethernet Patch Cable 8p8c Female Socket To Cold pressed terminal Extension CableTMCABLE060131



Materials:



CONNECTOR :
Housing:PBT,BLACK,UL94V-0
Contact material:OD=0.2*0.35mm flat needle nickel plating, tin plating, contact area gold plating UL94V-0 ( RoHS )
Gold plating:Fu”Optional
Shielding Shell: NO
CABLE: UTP 24AWG*4P(7/0.20BC) OD5.4mm BLACK PVC( RoHS )
Contact material:Copper PVC
MOLDING: PVC Black UL94V-0(RoHS)
Shielding: Without
All materials mates with modulat plug conforming to FCC part 68. subpart F


Product Structure:


RJ45 CABLE

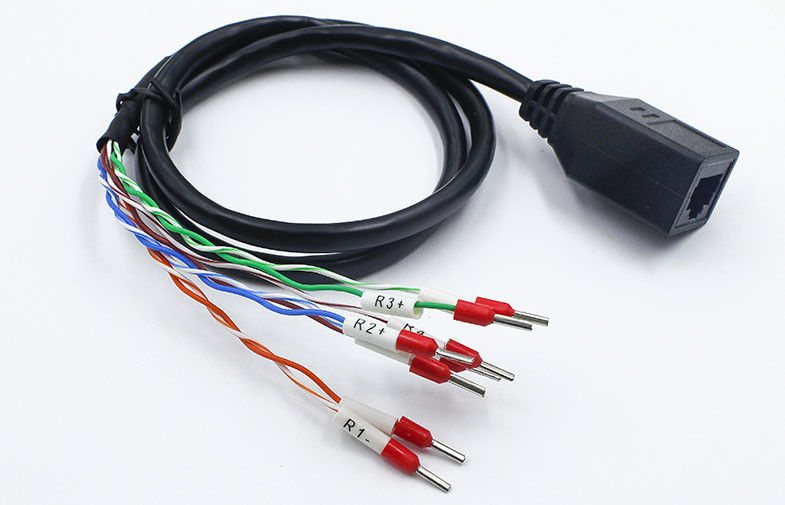

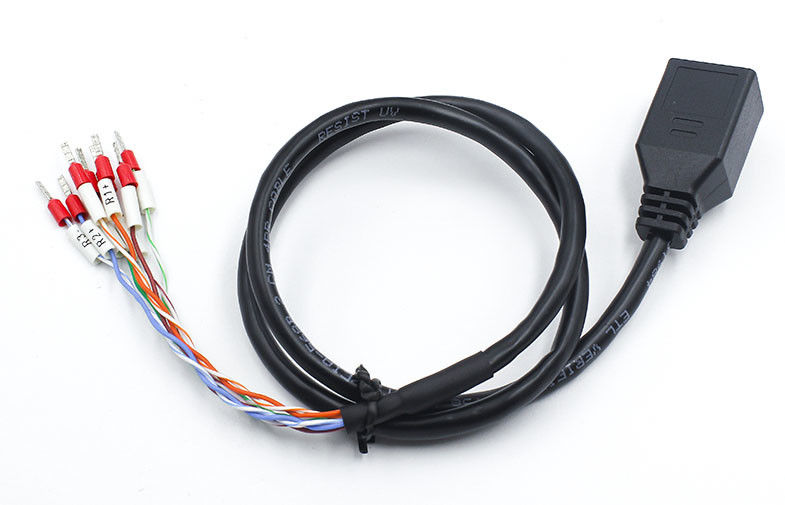

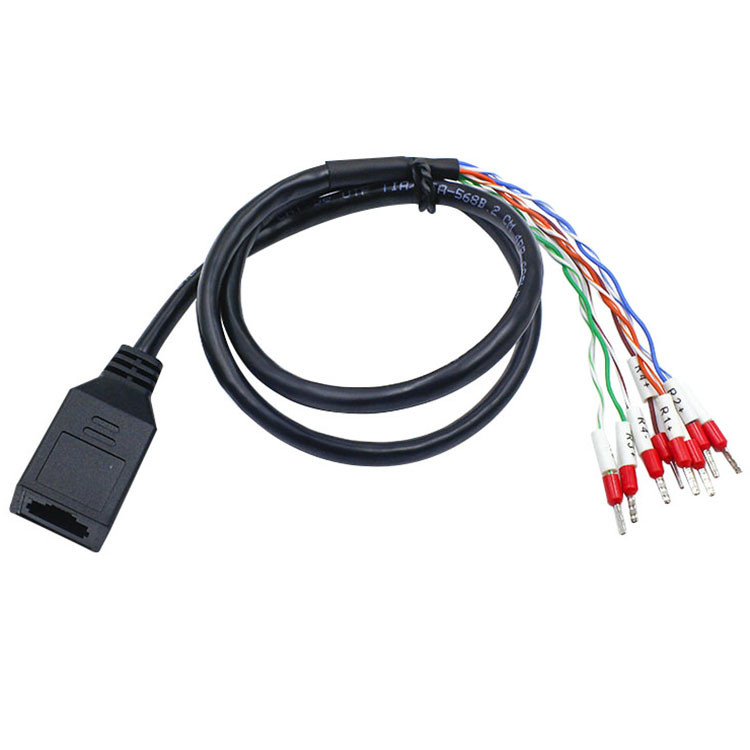

One Jack to Cold-pressed Terminal CABLE
CABLE Length: 600 mm

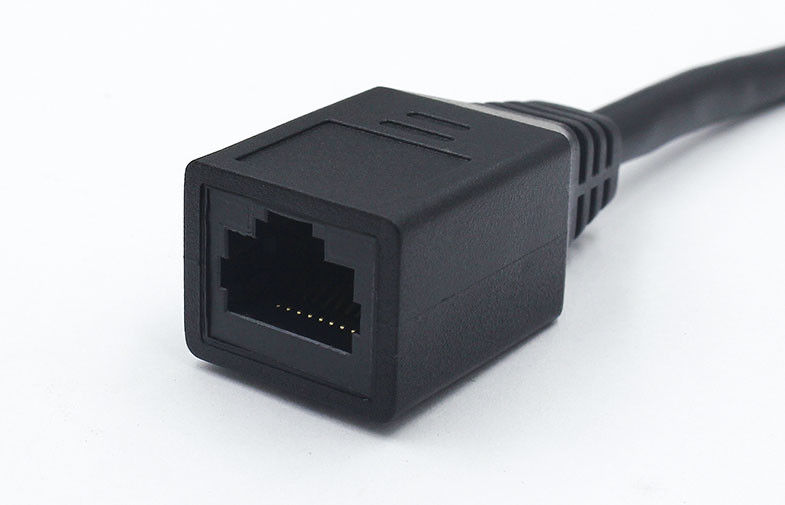

RJ45 Connector: 8P8C ( 8 positions 8 contacts )

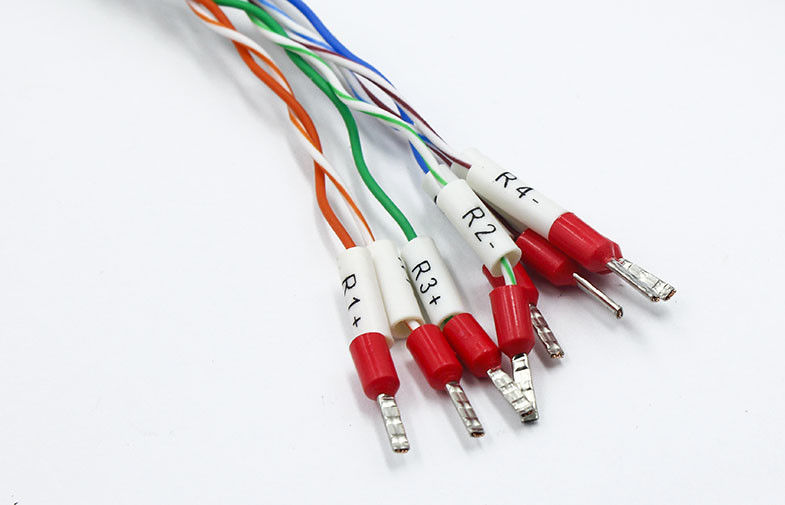

Cold-pressed Terminal: Red and Blue 8P8C ( 8 positions 8 contacts )
180°Orientation
Without LED, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required



RJ45 Connector Cable(TMCABLE060131) Attributes:



Model: TMCABLE060131
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Connector Cable
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded: No
Cable Color: Black
Durrability: 750 CYCLES MIN
Minimal Order: 1000 pcs
Package: 1pcs/bag
Delivery Time: 20 Days
Supply Ability: 3KK/year



RJ45 Connector Cable (TMCABLE060131) Mechnical Drawing:

UL94V 0 RJ45 Extension Cable 8p8c Female Socket To Cold Pressed Terminal 0
