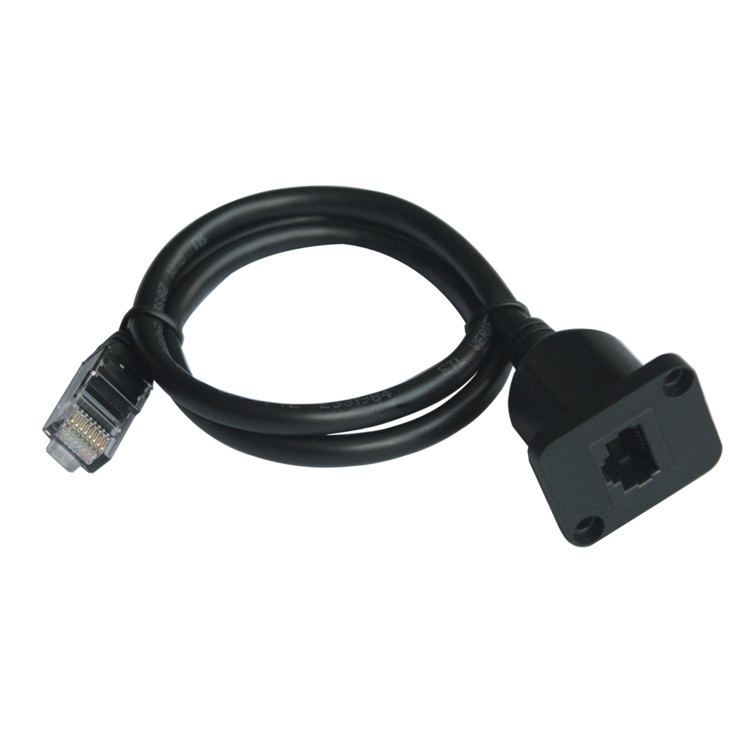

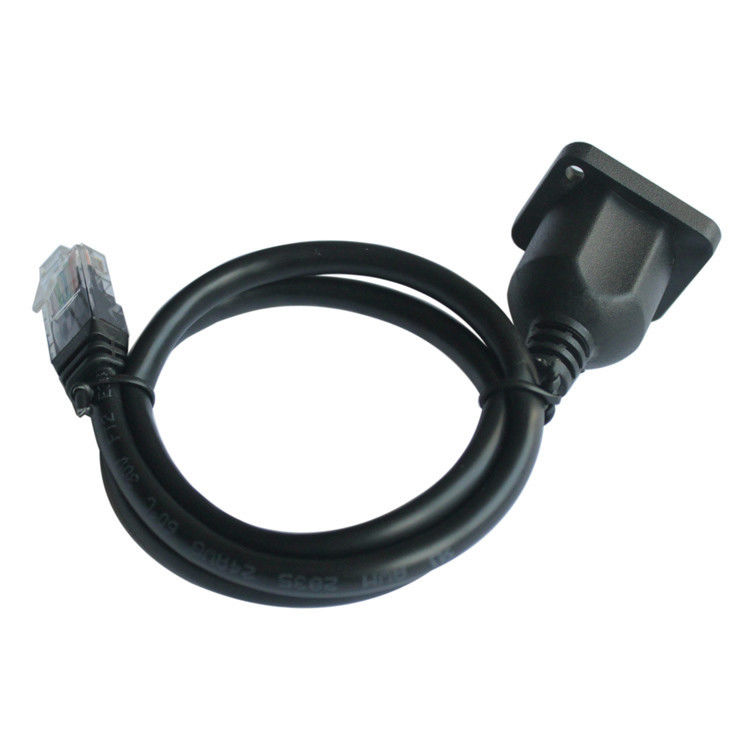

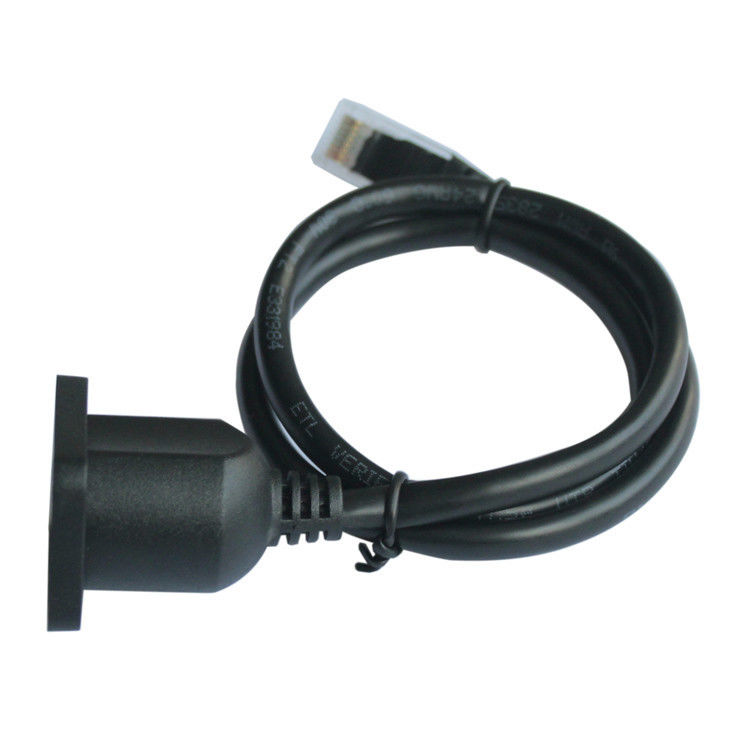

180 Degree RJ45 Extension Cable 8P8C Female Socket To Phone Plug

Product Description

180 Degree RJ45 Extension Cable 8P8C Female Socket To Phone Plug

180 Degree RJ45 Patch Cable 8p8c Female Socket To Phone Plug Extension

180 Degree Ethernet Patch Cable 8p8c Female Socket To Phone Plug Extension Cable TMCABLE060077

RJ45 Connector Cable(TMCABLE060077) Attributes:

RJ45 Connector Cable (TMCABLE060077) Mechnical Drawing:

Materials:

CONNECTOR P1(RJ45 JACK):
Housing:PBT,BLACK,UL94V-0 ( RoHS )
Holder:LCP,BLACK,UL94V-0 ( RoHS )
Contact material:OD=0.2*0.35mm flat needle nickel plating, tin plating, contact area gold plating( RoHS )
Gold plating:Fu”(Optional)
Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all
CONNECTOR P2(US PLUG):
Housing:PC,UL94V-0 ( RoHS )
Contact material:T=0.3mm Copper alloy nickel plating, contact area gold plating( RoHS )
Gold plating:Fu”(Optional)
Shielding Shell: Without
CABLE: UTP 24AWG*4P(7/0.20BC) OD5.5mm BLACK PVC( RoHS )
MOLDING: PVC Black UL94V-0( RoHS )
Shielding: Without
All materials mates with modulat plug conforming to FCC part 68. subpart F.

Product Structure:

RJ45 CABLE
One plug to one jack Cable
CABLE Length: 600 mm
RJ45 Connector Lock hole spacing: 19*24 mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without LED, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required
