Network Webcam Camera RCA RJ45 DC Terminal Line Monitor PCB Video Power Module

Product Description

Network Webcam Camera Monitor PCB Video Power Module RCA RJ45 DC Terminal Line TMCABLE060185

Materials:

CONNECTOR P1(RJ45 JACK):

Housing:PBT,BLACK,UL94V-0( RoHS )

Contact material:OD=0.2*0.35mm flat needle nickel plating, tin plating, contact area gold plating( RoHS )

Gold plating:Fu”OptionalShielding Shell: NO

CONNECTOR P2(DC5.5*2.1 JACK):

Housing:PBT,BLACK,UL94V-0( RoHS )

Contact material:Copper alloy( RoHS )

Shielding Shell: Copper alloy with Nickel Plating over all

CABLE: 28AWG*(2P+2C)+26AWG*2C copper OD5.0mm BLACK PVC( RoHS )

MOLDING: PVC Black UL94V-0(RoHS)

All materials mates with modulat plug conforming to FCC part 68. subpart F.

1. Product Structure:

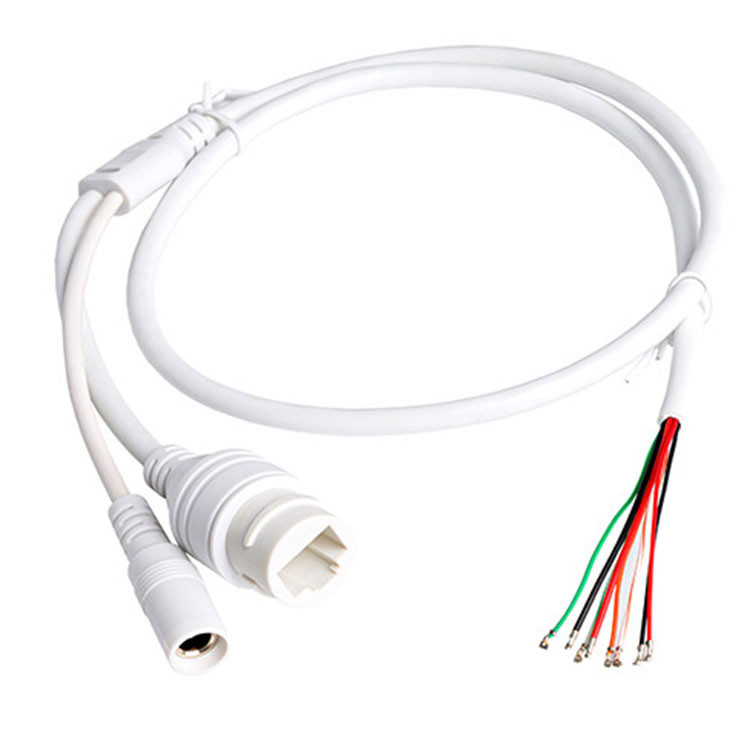

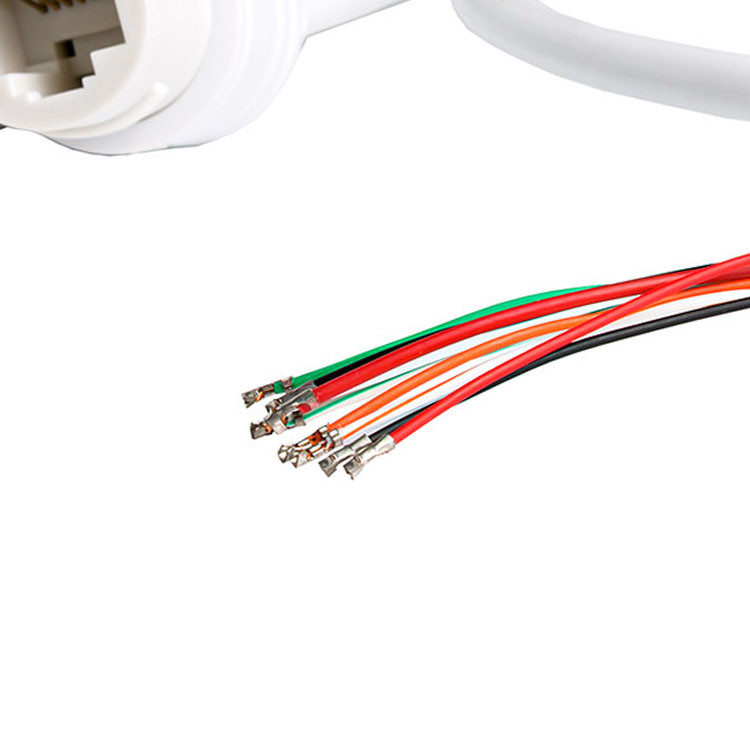

RJ45 AND DC TO 1.25 TERMINAL CABLE

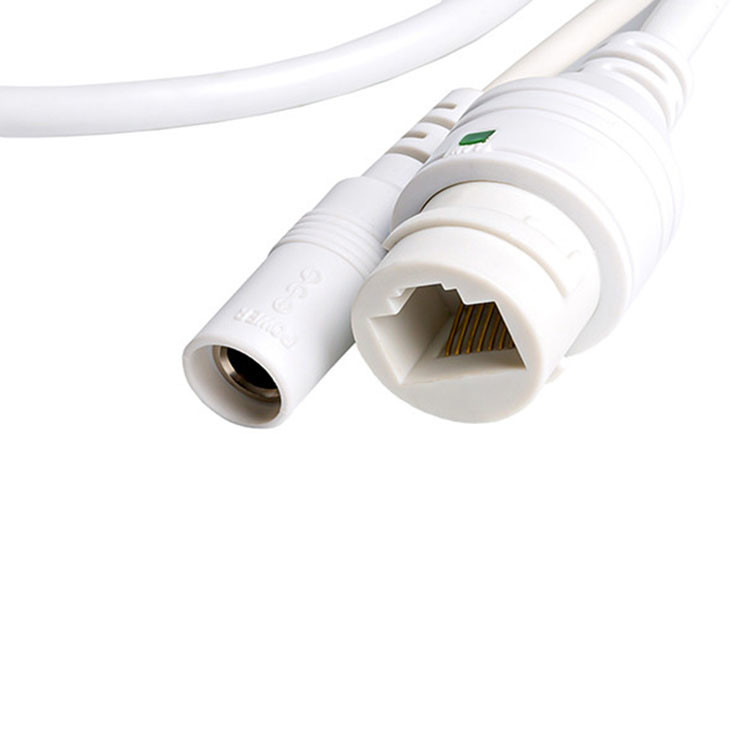

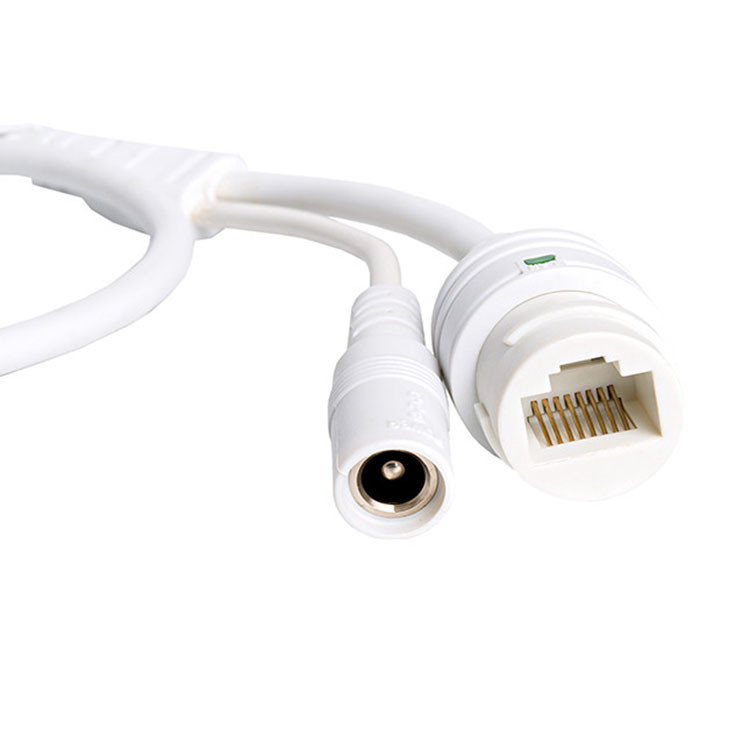

RJ45 Jack to DC Jack and us plug CABLE

CABLE Length: 700 mm

Connector: 8P8C ( 8 positions 8 contacts )

With LED GREEN, let know the connection status

Without Shield,can be customized as required

We Support Custom service as required

2. RJ45 Connector Cable(TMCABLE060185) Attributes:

RJ45 Connector Cable (TMCABLE060185) Mechnical Drawing:
