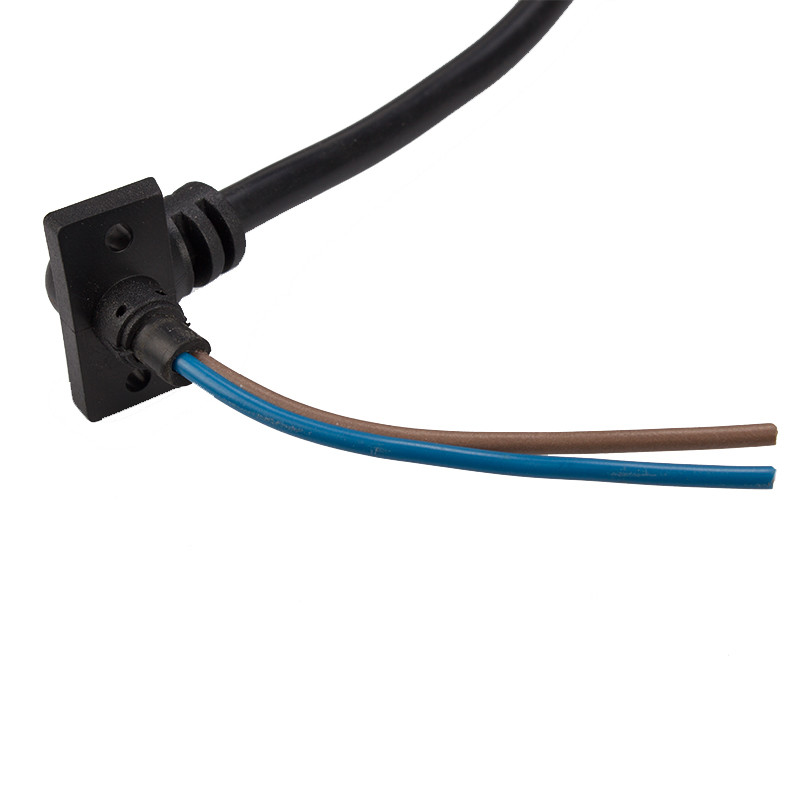

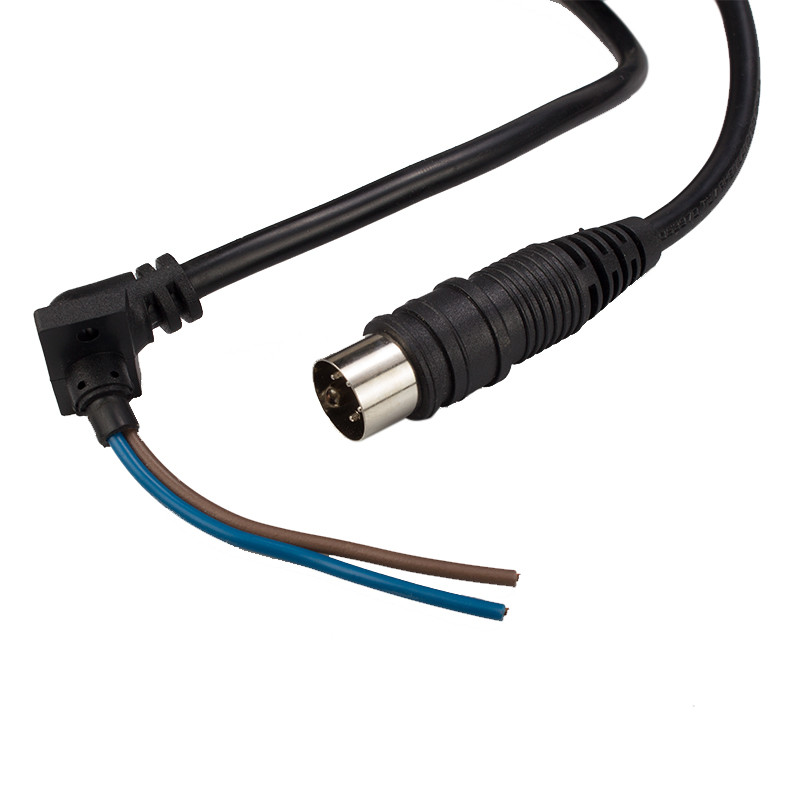

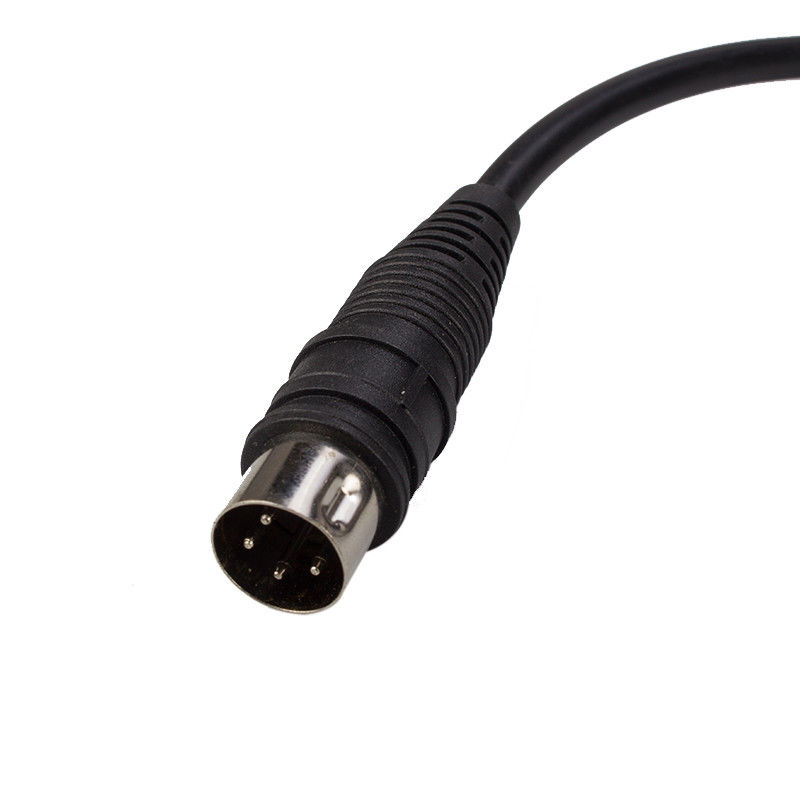

300V DIN Male Cable 4PIN To 2PIN For Medical Equipment
300V DIN Male Cable 4PIN To 2PIN For Medical Equipment 300V DIN Male Cable 4PIN To 2PIN For Medical Equipment 300V DIN Male Cable 4PIN To 2PIN For Medical Equipment
Contact Now

300V DIN Male Cable 4PIN To 2PIN For Medical Equipment

Minimum Order Quantity : 100pcs Price : Supportive
Packaging Details : 50pcs/tray Delivery Time : 20 Days
Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMCABLE020035

Detail Information
Product Type : Motor Cable Power Cord Jack Type: Din Connector Male
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Durrability: 750 CYCLES MIN
High Light:

300V DIN Male Cable

,

DIN Male Cable 4PIN To 2PIN

,

DIN Connector Cable For Medical Equipment

Product Description

300/300V Din Connector Male 4PIN To 2PIN Cable-Tail Black Motor Cable Power Cord To Power the Medical Equipment



Motor Cable Power Cord (TMCABLE020035) Attributes:

Model: TMCABLE020035
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : Motor Cable Power Cord
Jack Type: Din Connector Male
Number of Positions : 4
Terminals per Port: 4
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 300 V
Current rating: 2 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 100pcs
Manner of packing : 50pcs/tray,500pcs/case
Delivery Time: 20 Days
Supply Ability: 5KK/year



300/300V Din Connector Male 4PIN To 2PIN Cable-Tail Black Motor Cable Power Cord To Power the Medical Equipment

Motor Cable Power Cord (TMCABLE020035) Materials:

Din Connector Molding: PVC BLACK

CABLE:3 24/0.20BC(ID2.3m)*2C OD:5.9mm Black PVC Cover 80P


Motor Cable Power Cord (TMCABLE020035) Product Structure:
Din Connector 4PIN To 2PIN Cable-Tail

1 x 1 Port / Single Port / One Port
Din Connector 4PIN To 2PIN Cable-Tail Cable Length: 1500±20 mm/Customizable
Din:4P4C ( 4 positions 4 contacts )

180°Orientation
Without LED, let know the connection status
With Dust Cover,can be customized as required
We Support Custom service as required



Motor Cable Power Cord (TMCABLE020035) Mechnical Drawing:

300V DIN Male Cable 4PIN To 2PIN For Medical Equipment 1
