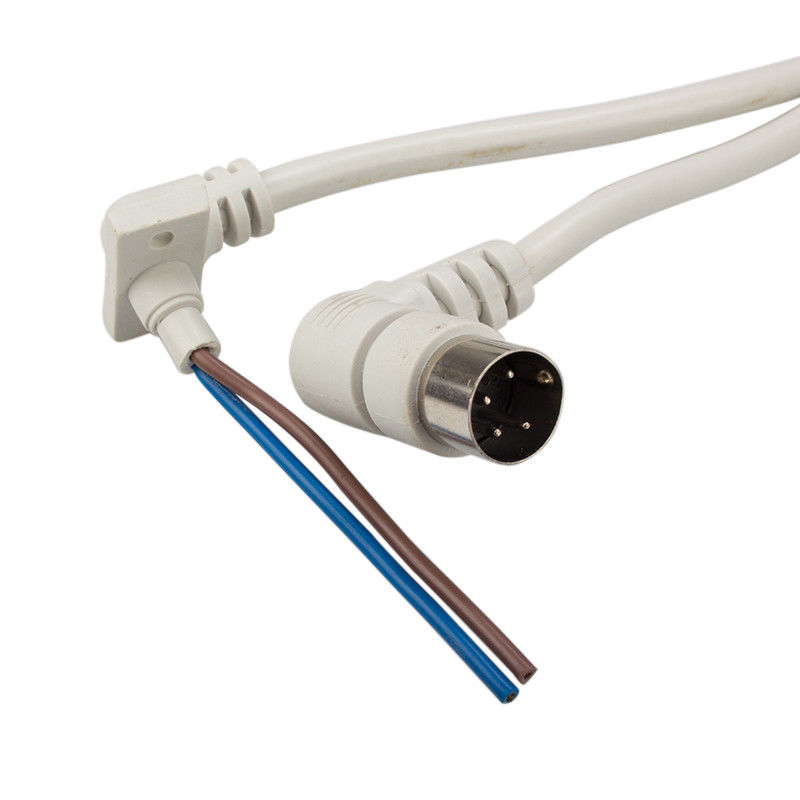

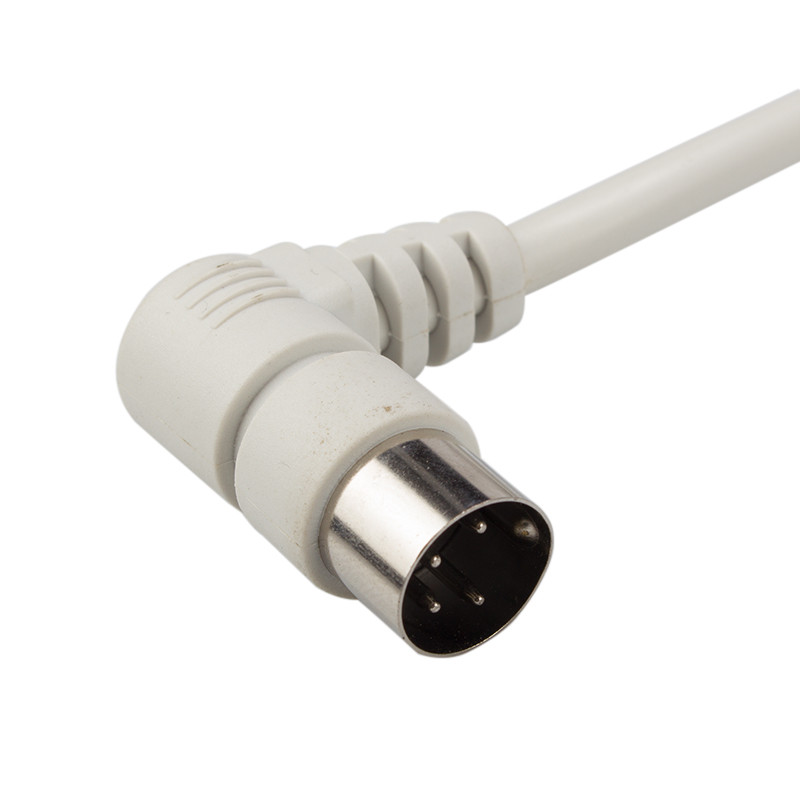

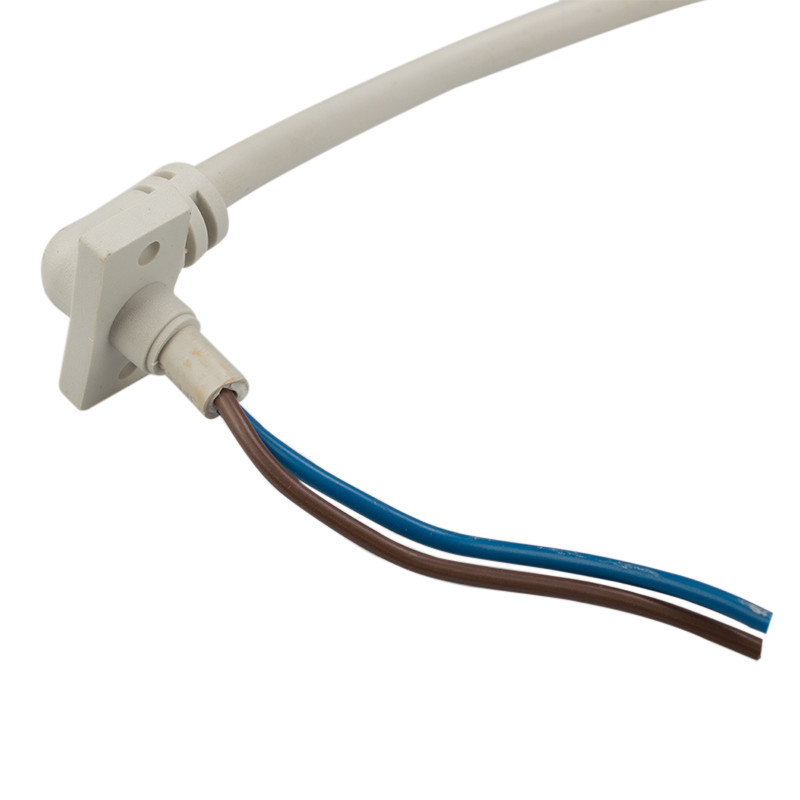

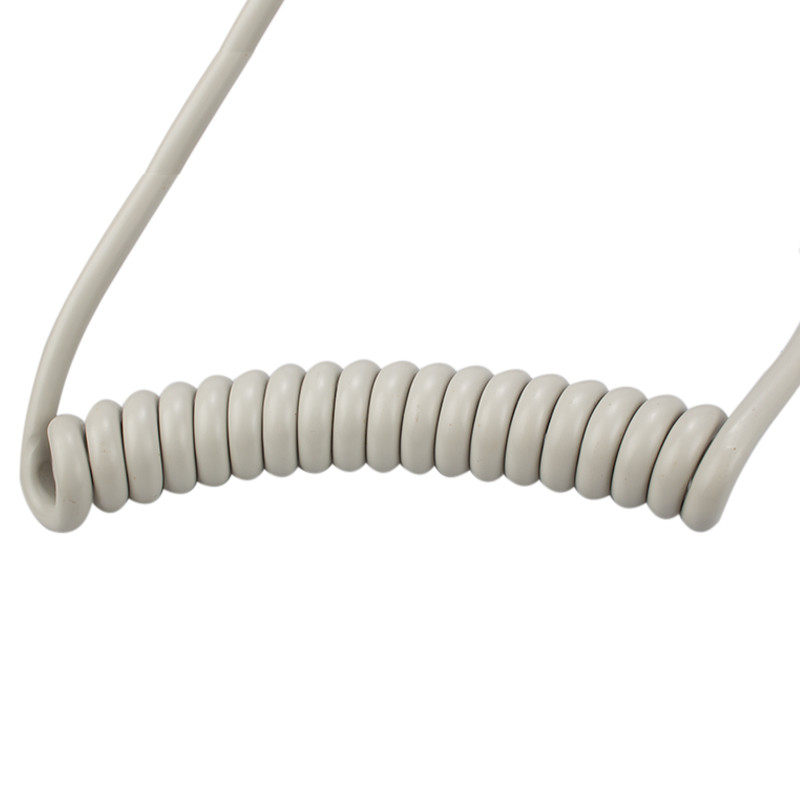

Right Angle Male 4PIN To 2PIN Spring Motor DIN Connector Cable
Right Angle Male 4PIN To 2PIN Spring Motor DIN Connector Cable Right Angle Male 4PIN To 2PIN Spring Motor DIN Connector Cable Right Angle Male 4PIN To 2PIN Spring Motor DIN Connector Cable Right Angle Male 4PIN To 2PIN Spring Motor DIN Connector Cable
Contact Now

Right Angle Male 4PIN To 2PIN Spring Motor DIN Connector Cable

Minimum Order Quantity : 100pcs Price : Supportive
Packaging Details : 50pcs/tray Delivery Time : 20 Days
Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMCABLE020073

Detail Information
Product Type : Right Angle Spring Motor Cable Power Cord Jack Type: Din Connector Male
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Durrability: 750 CYCLES MIN
High Light:

Spring Motor DIN Connector Cable

,

4PIN To 2PIN DIN Connector Cable

,

Right Angle DIN Male Connector

Product Description

Right Angle Male 4PIN Din Connector To 2PIN Cable-Tail Power the Medical Equipment White Spring Motor Cable Power Cord



a>Right Angle Spring Motor Cable Power Cord (TMCABLE020073) Attributes:

Model: TMCABLE020073
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : Right Angle Spring Motor Cable Power Cord
Jack Type: Din Connector Male
Number of Positions : 4
Terminals per Port: 4
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 300 V
Current rating: 2 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 100pcs
Manner of packing : 50pcs/tray,500pcs/case
Delivery Time: 20 Days
Supply Ability: 5KK/year



Right Angle Male 4PIN Din Connector To 2PIN Cable-Tail Power the Medical Equipment White Spring Motor Cable Power Cord

Right Angle Spring Motor Cable Power Cord (TMCABLE020073) Materials:

Din Connector Molding: PVC White

CABLE:3 24/0.20BC(ID2.3m)*2C OD:5.9mm Black PVC Cover 80P


Right Angle Spring Motor Cable Power Cord (TMCABLE020073) Product Structure:
Right Angle 4PIN Din Connector To 2PIN Cable-Tail

1 x 1 Port / Single Port / One Port
Din Connector 4PIN To 2PIN Cable-Tail Cable Length: 1500±20 mm/Customizable
Din:4P4C ( 4 positions 4 contacts )

90°Orientation
Without LED, let know the connection status
With Dust Cover,can be customized as required
We Support Custom service as required



Right Angle Spring Motor Cable Power Cord (TMCABLE020073) Mechnical Drawing:

Right Angle Male 4PIN To 2PIN Spring Motor DIN Connector Cable 1
