5PIN To 6PIN 180 Degree DIN Male Cable For Medical Equipment
5PIN To 6PIN 180 Degree DIN Male Cable For Medical Equipment 5PIN To 6PIN 180 Degree DIN Male Cable For Medical Equipment 5PIN To 6PIN 180 Degree DIN Male Cable For Medical Equipment
Contact Now

5PIN To 6PIN 180 Degree DIN Male Cable For Medical Equipment

Minimum Order Quantity : 100pcs Price : Supportive
Packaging Details : 50pcs/tray Delivery Time : 20 Days
Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMCABLE020074

Detail Information
Product Type : Motor Cable Power Cord Jack Type: Din Connector Male
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Durrability: 750 CYCLES MIN
High Light:

180 Degree DIN Male Cable

,

Medical Equipment DIN Male Cable

,

5PIN To 6PIN DIN Connector Cable

Product Description

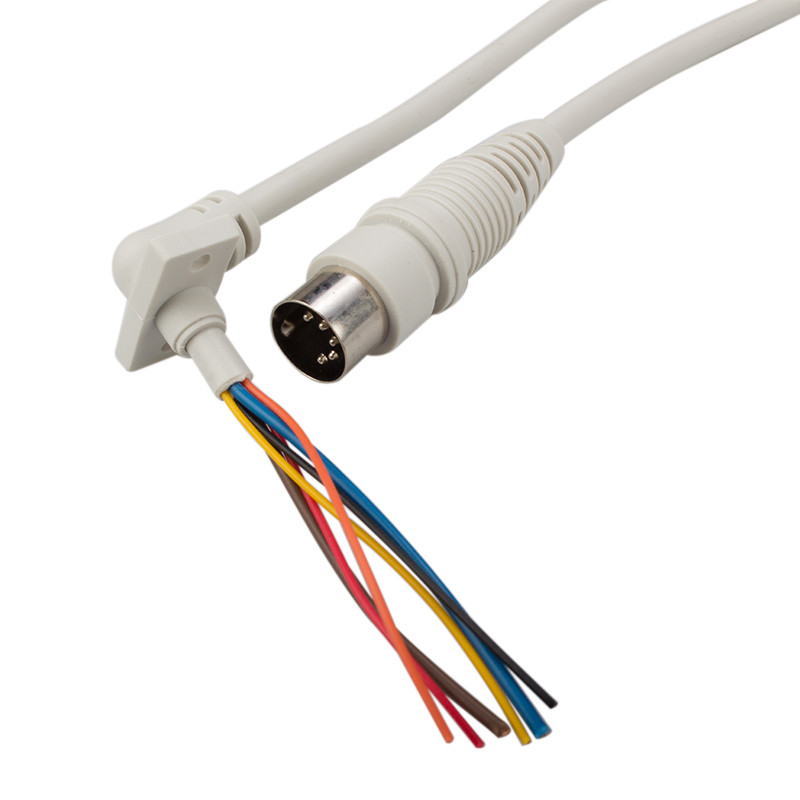

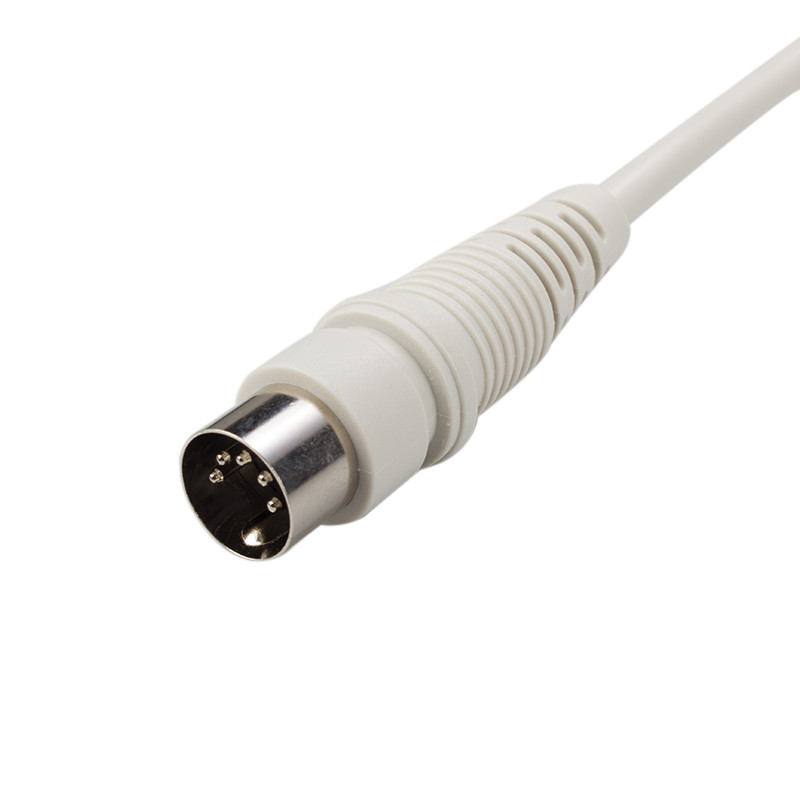

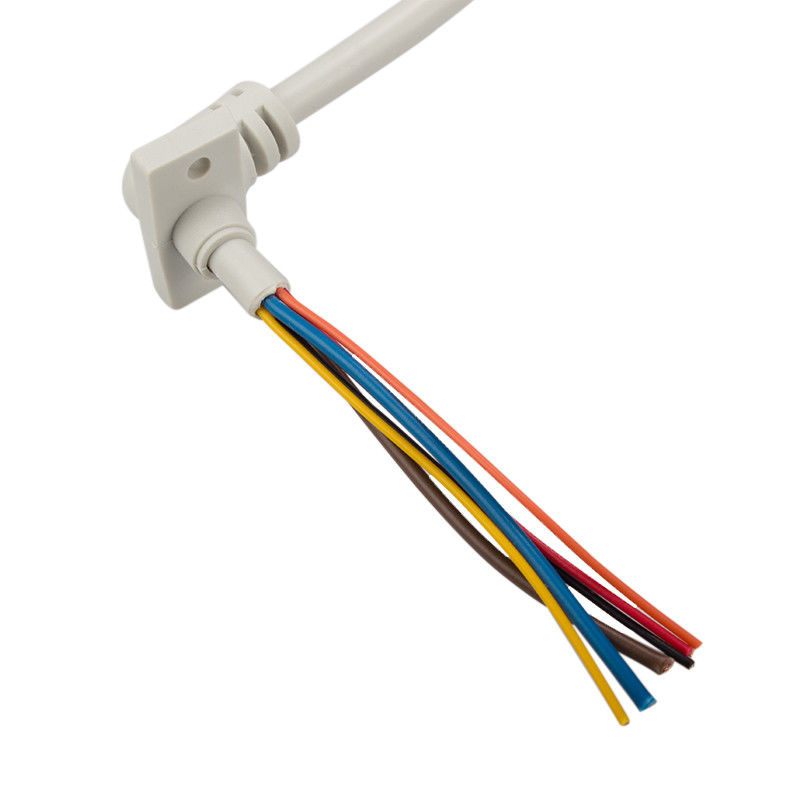

Male 5PIN 180° Din Connector To 6PIN Cable-Tail Power the Medical Equipment White Motor Cable Power Cord



Motor Cable Power Cord(TMCABLE020074) Attributes:

Model: TMCABLE020074
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : Motor Cable Power Cord
Jack Type: Din Connector Male
Number of Positions : 5/6
Terminals per Port: 5/6
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 300 V
Current rating: 2 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 100pcs
Manner of packing : 50pcs/tray,500pcs/case
Delivery Time: 20 Days
Supply Ability: 5KK/year



Male 5PIN 180° Din Connector To 6PIN Cable-Tail Power the Medical Equipment White Motor Cable Power Cord

Motor Cable Power Cord (TMCABLE020074) Materials:

Din Connector Molding: PVC White

CABLE:3 24/0.20BC(ID2.3m)*2C OD:5.9mm Black PVC Cover 80P


Motor Cable Power Cord (TMCABLE020074) Product Structure:
5PIN Din Connector To 6PIN Cable-Tail

1 x 1 Port / Single Port / One Port
Din Connector 5PIN To 6PIN Cable-Tail Cable Length: 1500±20 mm/Customizable
Din:5P5C ( 5 positions 5 contacts )

180°Orientation
Without LED, let know the connection status
With Dust Cover,can be customized as required
We Support Custom service as required



Motor Cable Power Cord (TMCABLE020074) Mechnical Drawing:

5PIN To 6PIN 180 Degree DIN Male Cable For Medical Equipment 1
