Home ProductsRJ45 Waterproof Coupler6P6C F/F Waterproof RJ11 Connector Threaded 90 Degrees 125V

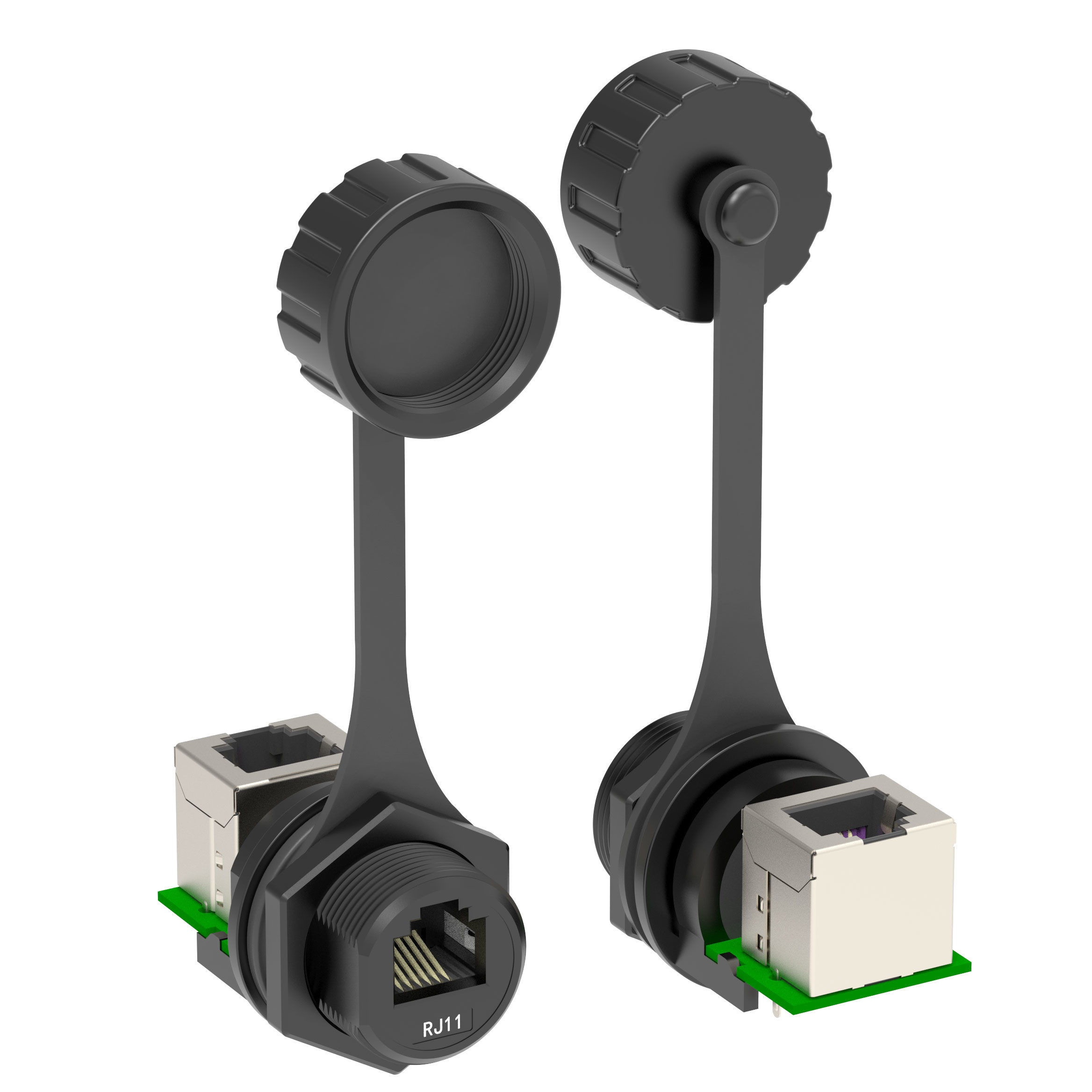

6P6C F/F Waterproof RJ11 Connector Threaded 90 Degrees 125V
6P6C F/F Waterproof RJ11 Connector Threaded 90 Degrees 125V
Contact Now

6P6C F/F Waterproof RJ11 Connector Threaded 90 Degrees 125V

Minimum Order Quantity : 500 Price : Supportive
Packaging Details : Vacuum package , ESD package,Carton package Delivery Time : 20days
Payment Terms : T/T, Western Union,Paypal Supply Ability : 100000 Piece/Pieces per Month
Place of Origin: Guangdong, China (Mainland) Brand Name: TM
Certification: CE/RoHS/ISO9001 Model Number: OEM

Detail Information
Supplier Type: Manufacturer Color: Customize
MOQ: 500 ODM: YES
OEM: YES Voltage Rating: 125V
High Light:

6P6C Waterproof RJ11 Connector

,

Threaded Waterproof RJ11 Connector

,

125V RJ11 Modular Connector

Product Description

6P6C F/F Waterproof RJ11 Connector Threaded 90 degrees



Waterproof RJ11 Connector (TMPMWRJ1010) Attributes:

Model: TMPMWRJ1010
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ11 Modular Connector
Jack Type: RJ11
Number of Positions : 6
Terminals per Port: 6
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 40mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Manner of packing : 50pcs/tray,500pcs/case
Delivery Time: 20 Days
Supply Ability: 5KK/year



Waterproof RJ11 Connector (TMPMWRJ1010) Mechnical Drawing:

6P6C F/F Waterproof RJ11 Connector Threaded 90 Degrees 125V 0



Materials:

Housing : ABS,UL94V-0 ( RoHS )
Contact Finish: T=.35 mm Phosphor Bronze gold plating(Fu” ~50u”Optional) over nickel in contact.
Shielding Shell: Stainless Steel
All materials mates with modulat plug conforming to FCC part 68. subpart F.

Operating Temperature:-20°C~+75X

Current Rating:1.5A

Voltage Rating:125V AC

Withstand Voltage:1000V AC

Insulation Resistance:1000MQ

Contact Resistance:30mQ

Service life:750 cycle Min




Product Structure:
RJ11 Modular Jack
1 x 1 Port / Single Port / One Port
RJ11 Connector Width: 28.71 mm
RJ11 Connector Height: 43.20 mm
6P6C ( 6 positions 6 contacts )
180°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required
