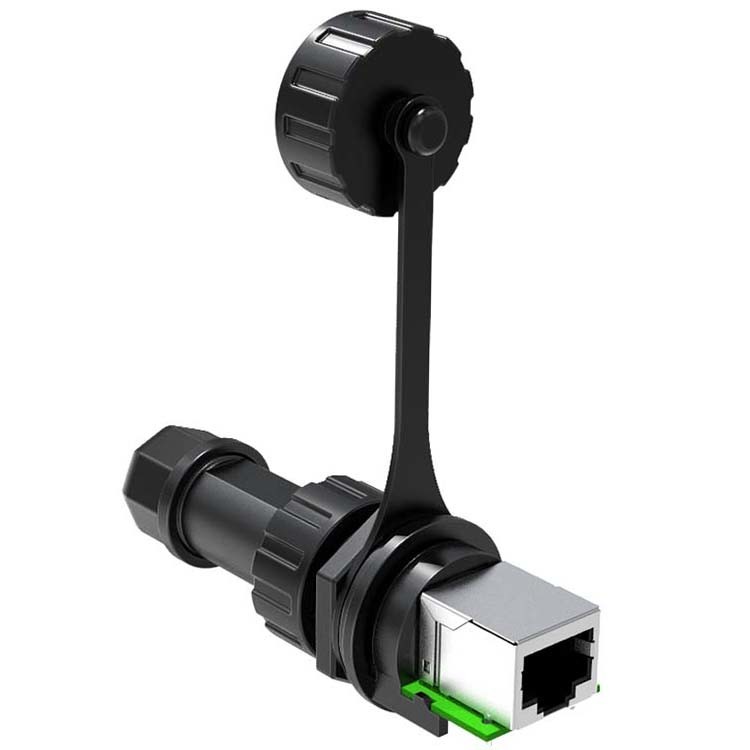

Female To Male RJ45 Network Cable Coupler With Waterproof Sets Panel Mount

Product Description

Female To Male RJ45 Network Cable With Waterproof Sets Panel Mount

RJ45 plug to Female Network Cable With Waterproof Sets-Panel Mount

Ethernet couplers can be divided into different types according to their different characteristics and applications. Generally, they can be classified as unshielded or shielded Ethernet couplers, indoor or outdoor RJ45 couplers, and inline Ethernet couplers or ladder couplers. What's more, it can also be divided into CAT5 couplers, CAT5E couplers, CAT6 couplers, CAT6A couplers, CAT7 couplers, etc. according to categories.

RJ45 plug to Female Network Cable (TMCABLE060245)Attributes:

RJ45 plug to Female Network Cable (TMCABLE060245)Materials:

Housing : ABS,UL94V-0 ( RoHS )
Contact Finish: T=0.30 mm GOLD PLATING 6U" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
All materials mates with modulat plug conforming to FCC part 68. subpart F.

Shielding Shell: Stainless Steel.

RJ45 plug to Female Network Cable (TMCABLE060245)Product Structure:
RJ45 Modular Jack
Connector Length: 27.6 mm
Connector Width: 14.40 mm
Connector Height: 16.00 mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without led, let know the connection status
With Shield,can be customized as required
We Support Custom service as required

RJ45 plug to Female Network Cable (TMCABLE060245)Mechnical Drawing:
