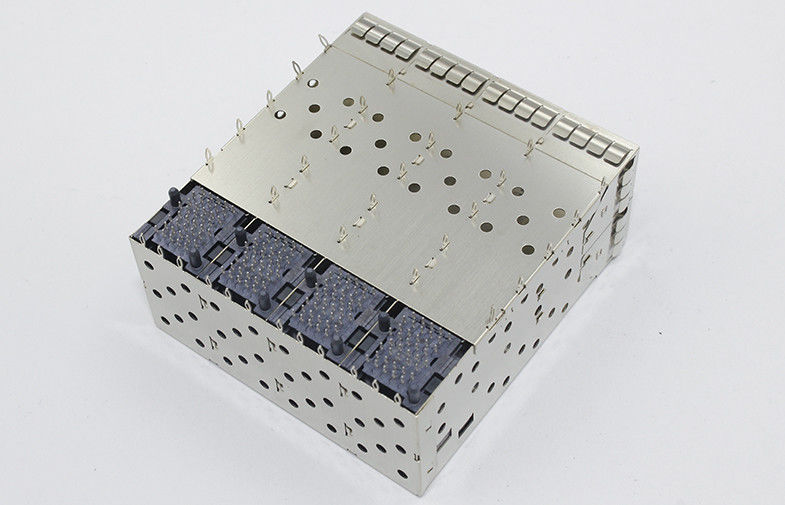

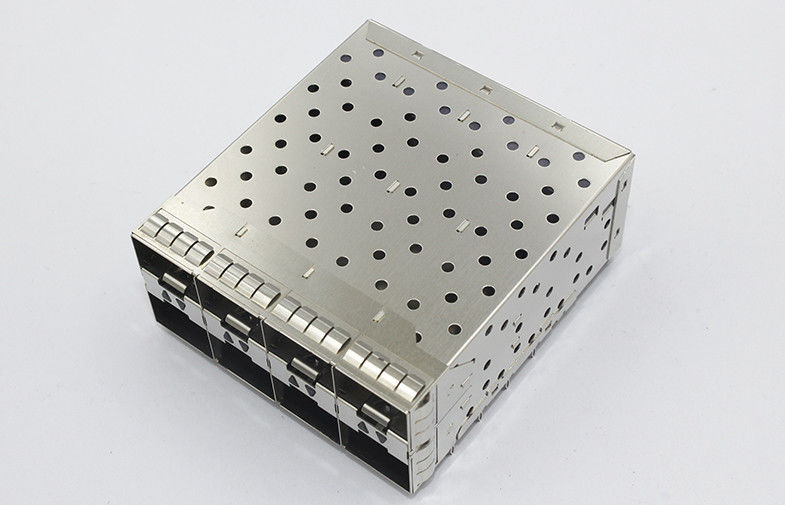

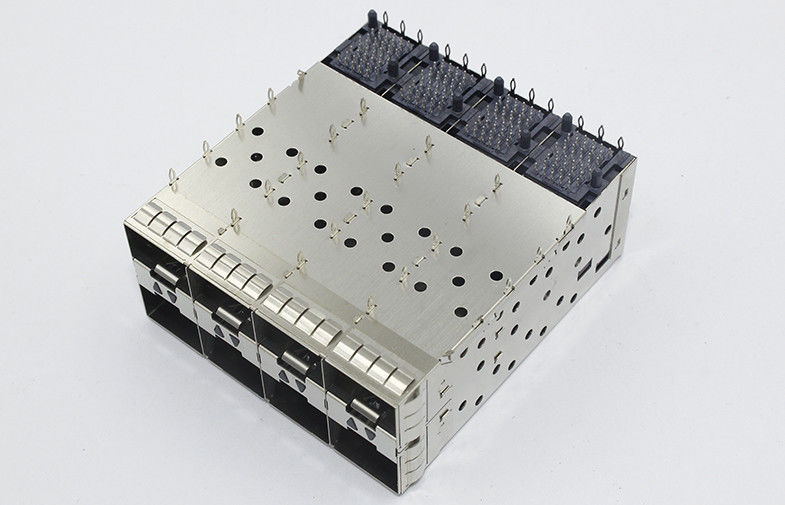

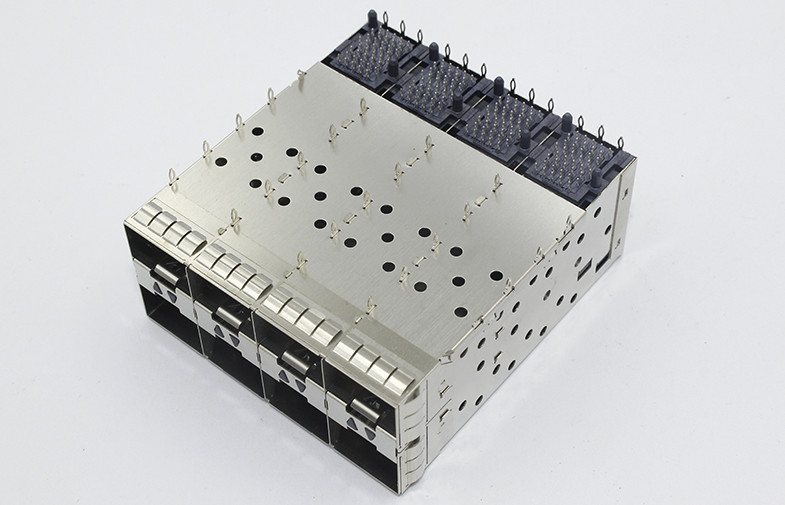

UL Rohs SFP Cage Connector 2x4 Integrated / 0.5 A QSFP Cage TMSFPX24EXXX4
UL Rohs SFP Cage Connector 2x4 Integrated / 0.5 A QSFP Cage TMSFPX24EXXX4 UL Rohs SFP Cage Connector 2x4 Integrated / 0.5 A QSFP Cage TMSFPX24EXXX4 UL Rohs SFP Cage Connector 2x4 Integrated / 0.5 A QSFP Cage TMSFPX24EXXX4
Contact Now

UL Rohs SFP Cage Connector 2x4 Integrated / 0.5 A QSFP Cage TMSFPX24EXXX4

Minimum Order Quantity : 500 piece Price : Supportive
Packaging Details : Tray in Carton Delivery Time : 3 work days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 100kpcs /day
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMSFPX24EXXX4

Detail Information
Product Type : SFP+ Cage Connector Shielded EMI Tabs: YES
Operation Voltage: 3.3 V Operation Current: 0.5 A
Differential Impedance: 100Ω+/-10Ω DWV: 300V AC
Insulation Resistance: 1000MΩ MIN Contact Resistance: 35 MILLIOHM MAX
Durrability: 250 MATING CYCLES MIN Mounting: Press-fit Pins
Operating Temperature: -40℃ TO +85℃ Storage Temperature: -55℃ TO +105℃
Process Characteristics: 260℃ FOR 10 SECONDS Tray Packaging: Cage And Connector Assembly
Bulk Packaging: Dust Cover Delivery Time: 20 Days
Supply Ability: 5KK/year
High Light:

sfp module connector

,

sfp port connector

,

2x4 Integrated SFP Cage Connector

Product Description

2x4 Integrated SFP+ Cage Connector with Inner Outer Light pipe Press Fit Mounting TMSFPX24EXXX4







SFP + Cage Connector (TMSFPX24EXXX4)Structure



Construction: One-piece stamped and formed metal cage
Light pipe: With inner outer light pipe
Heat Sink: Without, support custom as required
EMI Spring: With
Mounting Type: Press Fit
Integrated Connector: With
Cage Length: 63.25mm
Cage Width: 57.00mm
Cage Height: 25.40mm
Press fit Pin length: 2.7mm
Pore Number: 8 port in stacked structer



SFP + Cage Connector(TMSFPX24EXXX4) Attributes

Model: TMSFPX24EXXX4
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : SFP Cage Connector
Shielded EMI Tabs: YES
Operation voltage: 3.3 V
Operation current: 0.5 A
Differential impedance: 100Ω+/-10Ω
DWV: 300V AC
Insulation resistance: 1000MΩ MIN
Contact resistance: 35 MILLIOHM MAX
Durrability: 250 MATING CYCLES MIN
Mounting: Press-fit pins
Operating temperature: -40℃ TO +85℃
Storage temperature: -55℃ TO +105℃
Process characteristics: 260℃ FOR 10 SECONDS
Tray packaging: Cage and connector assembly
Bulk packaging: Dust cover
Delivery Time: 20 Days
Supply Ability: 500K/year



SFP + Cage Connector(TMSFPX24EXXX4)Applications:

Networking equipment

Router/Switch

Data/Communications

High-end servers

Networking

Fibre Channel and Gigabit Ethernet

Servers

Storage

Telecommunications

Switches

Telecommunications hardware



SFP + Cage Connector(TMSFPX24EXXX4) Mechnical Drawing:

UL Rohs SFP Cage Connector 2x4 Integrated / 0.5 A QSFP Cage TMSFPX24EXXX4 0UL Rohs SFP Cage Connector 2x4 Integrated / 0.5 A QSFP Cage TMSFPX24EXXX4 1UL Rohs SFP Cage Connector 2x4 Integrated / 0.5 A QSFP Cage TMSFPX24EXXX4 2UL Rohs SFP Cage Connector 2x4 Integrated / 0.5 A QSFP Cage TMSFPX24EXXX4 3UL Rohs SFP Cage Connector 2x4 Integrated / 0.5 A QSFP Cage TMSFPX24EXXX4 4UL Rohs SFP Cage Connector 2x4 Integrated / 0.5 A QSFP Cage TMSFPX24EXXX4 5UL Rohs SFP Cage Connector 2x4 Integrated / 0.5 A QSFP Cage TMSFPX24EXXX4 6
