Home ProductsRJ45 Plug Connector2x4 Integrated Sfp Connector 1000MΩ MIN Insulation Resistance TMSFPX24EXXX3

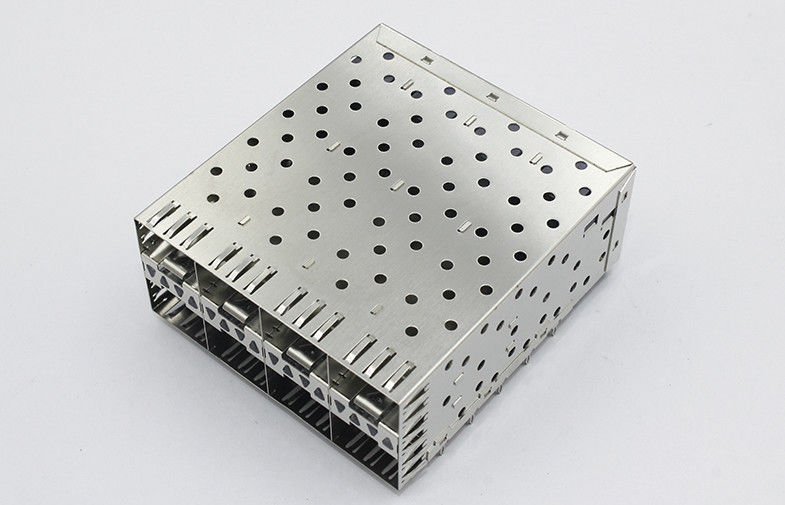

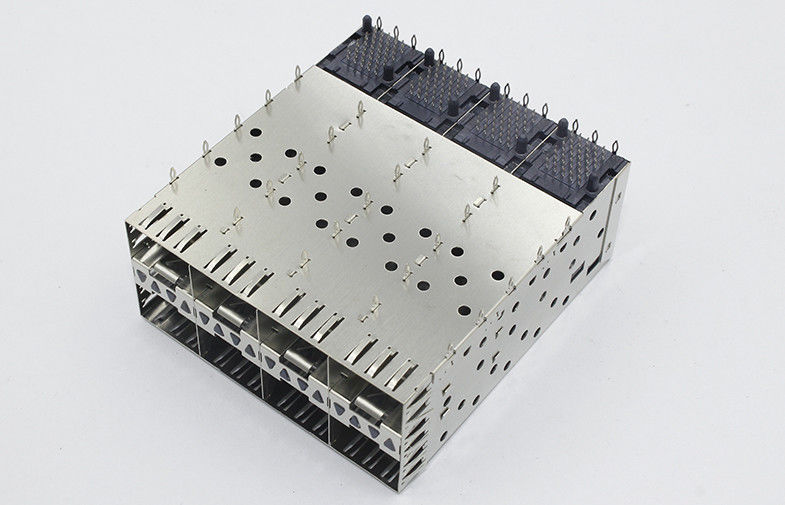

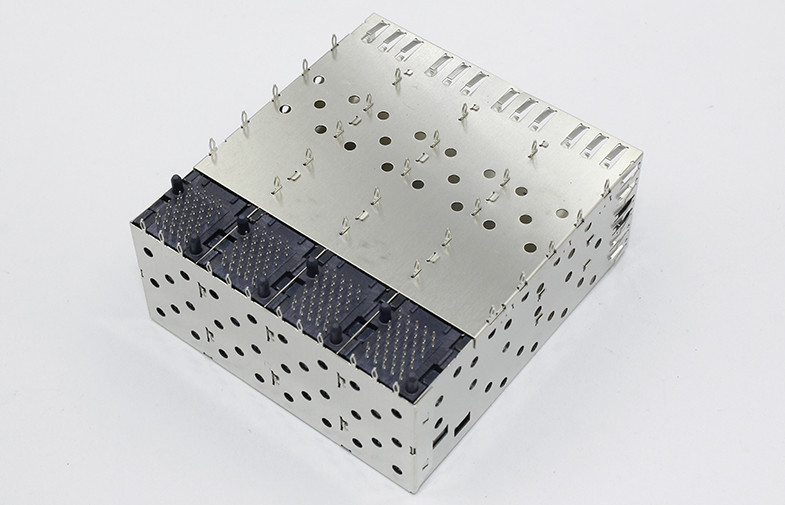

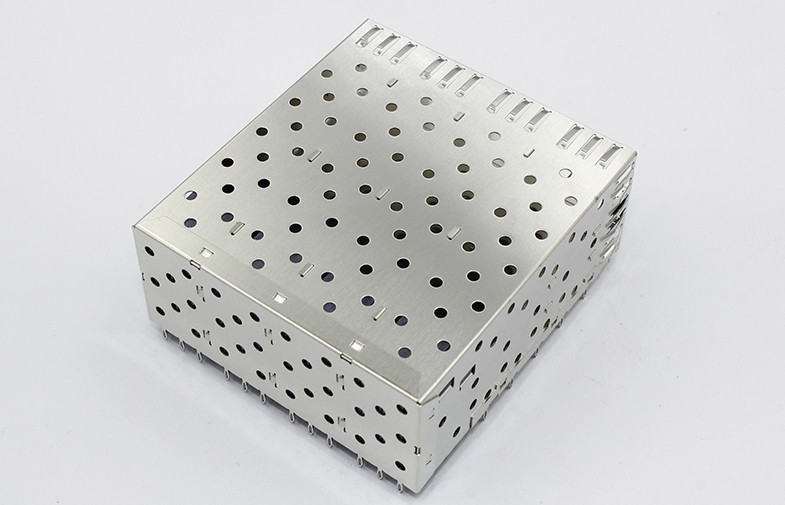

2x4 Integrated Sfp Connector 1000MΩ MIN Insulation Resistance TMSFPX24EXXX3
2x4 Integrated Sfp Connector 1000MΩ MIN Insulation Resistance TMSFPX24EXXX3 2x4 Integrated Sfp Connector 1000MΩ MIN Insulation Resistance TMSFPX24EXXX3 2x4 Integrated Sfp Connector 1000MΩ MIN Insulation Resistance TMSFPX24EXXX3 2x4 Integrated Sfp Connector 1000MΩ MIN Insulation Resistance TMSFPX24EXXX3
Contact Now

2x4 Integrated Sfp Connector 1000MΩ MIN Insulation Resistance TMSFPX24EXXX3

Minimum Order Quantity : 500 piece Price : Supportive
Packaging Details : Tray in Carton Delivery Time : 3 work days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 100kpcs /day
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMSFPX24EXXX3

Detail Information
Product Type : SFP Cage Connector Shielded EMI Tabs: YES
Operation Voltage: 3.3 V Operation Current: 0.5 A
Differential Impedance: 100Ω+/-10Ω DWV: 300V AC
Insulation Resistance: 1000MΩ MIN Contact Resistance: 35 MILLIOHM MAX
Durrability: 250 MATING CYCLES MIN Mounting: Press-fit Pins
Operating Temperature: -40℃ TO +85℃ Storage Temperature: -55℃ TO +105℃
Process Characteristics: 260℃ FOR 10 SECONDS Tray Packaging: Cage And Connector Assembly
Bulk Packaging: Dust Cover Delivery Time: 20 Days
Supply Ability: 5KK/year
High Light:

sfp module connector

,

sfp port connector

,

2x4 Integrated Sfp Connector

Product Description

2x4 Integrated sfp copper connector with Inner Outer Light pipe Press Fit Mounting TMSFPX24EXXX3







SFP Cage Connector(TMSFPX24EXXX3)Applications:



Servers

Storage

Telecommunications

Switches

Telecommunications hardware





SFP Cage Connector(TMSFPX24EXXX3) Attributes

Model: TMSFPX24EXXX3
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : SFP Cage Connector
Shielded EMI Tabs: YES
Operation voltage: 3.3 V
Operation current: 0.5 A
Differential impedance: 100Ω+/-10Ω
DWV: 300V AC
Insulation resistance: 1000MΩ MIN
Contact resistance: 35 MILLIOHM MAX
Durrability: 250 MATING CYCLES MIN
Mounting: Press-fit pins
Operating temperature: -40℃ TO +85℃
Storage temperature: -55℃ TO +105℃
Process characteristics: 260℃ FOR 10 SECONDS
Tray packaging: Cage and connector assembly
Bulk packaging: Dust cover
Delivery Time: 20 Days
Supply Ability: 500K/year





Tag:

sfp module connector

sfp port connector

sfp cage assembly
