2 X 6 Sfp Module Connector 300V AC TMSFPX26EXXX3 Dust Cover Packaging
2 X 6 Sfp Module Connector 300V AC TMSFPX26EXXX3 Dust Cover Packaging 2 X 6 Sfp Module Connector 300V AC TMSFPX26EXXX3 Dust Cover Packaging 2 X 6 Sfp Module Connector 300V AC TMSFPX26EXXX3 Dust Cover Packaging 2 X 6 Sfp Module Connector 300V AC TMSFPX26EXXX3 Dust Cover Packaging
Contact Now

2 X 6 Sfp Module Connector 300V AC TMSFPX26EXXX3 Dust Cover Packaging

Minimum Order Quantity : 500 piece Price : Supportive
Packaging Details : Tray in Carton Delivery Time : 3 work days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 100kpcs /day
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMSFPX26EXXX3

Detail Information
Product Type : SFP+ Cage Connector Shielded EMI Tabs: YES
Operation Voltage: 3.3 V Operation Current: 0.5 A
Differential Impedance: 100Ω+/-10Ω DWV: 300V AC
Insulation Resistance: 1000MΩ MIN Contact Resistance: 35 MILLIOHM MAX
Durrability: 250 MATING CYCLES MIN Mounting: Press-fit Pins
Operating Temperature: -40℃ TO +85℃ Storage Temperature: -55℃ TO +105℃
Process Characteristics: 260℃ FOR 10 SECONDS Tray Packaging: Cage And Connector Assembly
Bulk Packaging: Dust Cover Delivery Time: 20 Days
Supply Ability: 5KK/year
High Light:

sfp module connector

,

sfp cage assembly

,

2x6 Sfp Module Connector

Product Description

2x6 sfp module connector with Inner Outer Light pipe Press Fit Mounting TMSFPX26EXXX3

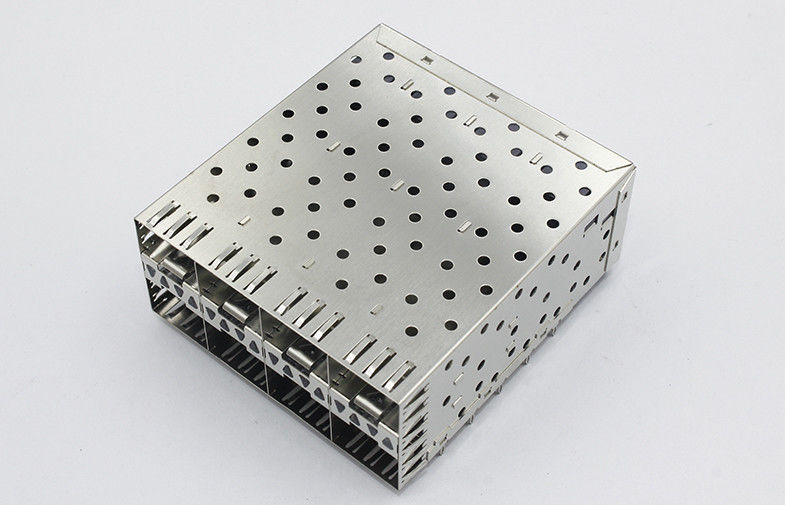

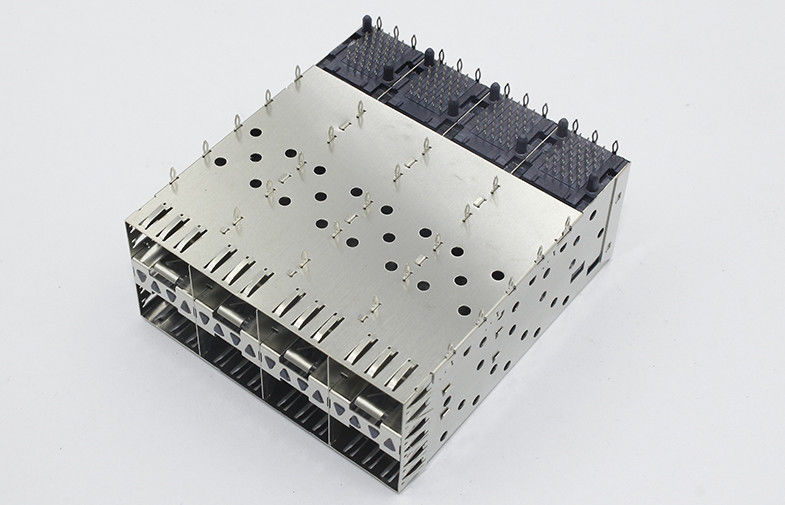

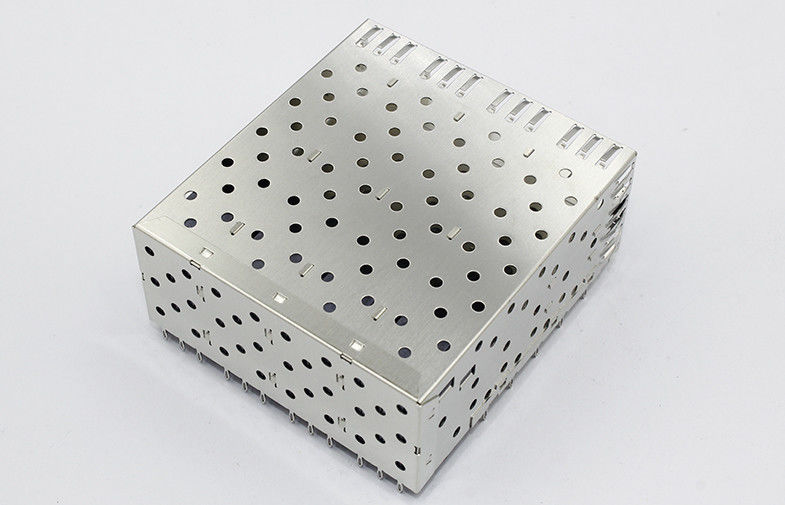

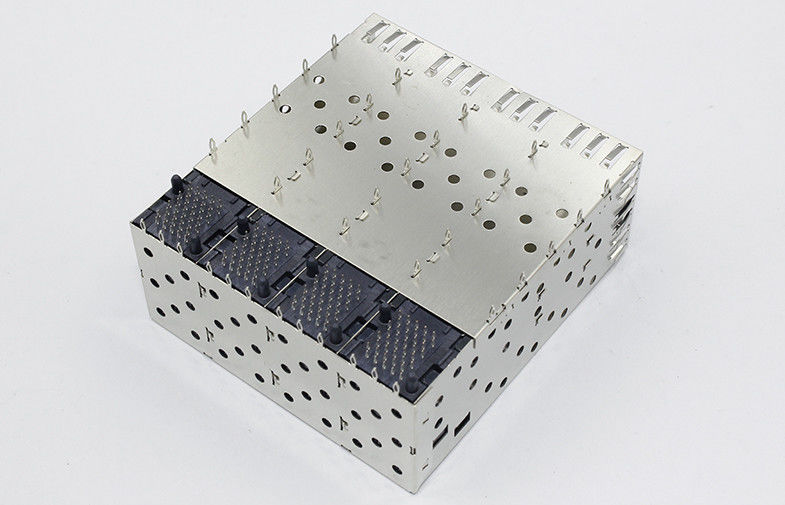

SFP Cage Connector (TMSFPX26EXXX3)Structure

Construction: One-piece stamped and formed metal cage
Light pipe: With inner outer light pipe
Heat Sink: Without, support custom as required
EMI Spring: With
Mounting Type: Press Fit
Integrated Connector: With
Cage Length: 63.25mm
Cage Width: 86.00mm
Cage Height: 25.40mm
Press fit Pin length: 2.7mm
Pore Number: 12 port in stacked structer



SFP Cage Connector(TMSFPX26EXXX3) Attributes

Model: TMSFPX26EXXX3
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : SFP Cage Connector
Shielded EMI Tabs: YES
Operation voltage: 3.3 V
Operation current: 0.5 A
Differential impedance: 100Ω+/-10Ω
DWV: 300V AC
Insulation resistance: 1000MΩ MIN
Contact resistance: 35 MILLIOHM MAX
Durrability: 250 MATING CYCLES MIN
Mounting: Press-fit pins
Operating temperature: -40℃ TO +85℃
Storage temperature: -55℃ TO +105℃
Process characteristics: 260℃ FOR 10 SECONDS
Tray packaging: Cage and connector assembly
Bulk packaging: Dust cover
Delivery Time: 20 Days
Supply Ability: 500K/year



Yong Lian (tianmu)Electronics Limited is a pofessional engaged in Network Conector development and manufacturin design, development, poducton and sales of dversitled manutacturer. Ater years of hard devolopment, company has acumulated rich expriene and tchnolgy products by the majority of coustomers praise.



The leading products of the company include: phone jack, network sockets,networktransformers, crystal head, telephone, network peripheral cable adapter first class.



The product widerly used in indstry control,network switch,routers, set top boxes,digital dquipment and telephone&network equipment. The company had under control a large number of employees continuously seeking after improvements and practiced a set of perfect quality management systerm.To make every effort to provide the customer with the best quality and service, and continuously improve

the comprehensive quality of enterprise.
