Home ProductsRJ45 Plug Connector2x6 Sfp Cage Assembly 35 Milliohm Max Contact Resistance Tmsfpx26exxx4
2x6 Sfp Cage Assembly 35 Milliohm Max Contact Resistance Tmsfpx26exxx4
2x6 Sfp Cage Assembly 35 Milliohm Max Contact Resistance Tmsfpx26exxx4 2x6 Sfp Cage Assembly 35 Milliohm Max Contact Resistance Tmsfpx26exxx4 2x6 Sfp Cage Assembly 35 Milliohm Max Contact Resistance Tmsfpx26exxx4
Contact Now

2x6 Sfp Cage Assembly 35 Milliohm Max Contact Resistance Tmsfpx26exxx4

Minimum Order Quantity : 500 piece Price : Supportive
Packaging Details : Tray in Carton Delivery Time : 3 work days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 100kpcs /day
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMSFPX26EXXX4

Detail Information
Product Type : SFP+ Cage Connector Shielded EMI Tabs: YES
Operation Voltage: 3.3 V Operation Current: 0.5 A
Differential Impedance: 100Ω+/-10Ω DWV: 300V AC
Insulation Resistance: 1000MΩ MIN Contact Resistance: 35 MILLIOHM MAX
Durrability: 250 MATING CYCLES MIN Mounting: Press-fit Pins
Operating Temperature: -40℃ TO +85℃ Storage Temperature: -55℃ TO +105℃
Process Characteristics: 260℃ FOR 10 SECONDS Tray Packaging: Cage And Connector Assembly
Bulk Packaging: Dust Cover Delivery Time: 20 Days
Supply Ability: 5KK/year
High Light:

sfp module connector

,

sfp cage assembly

Product Description

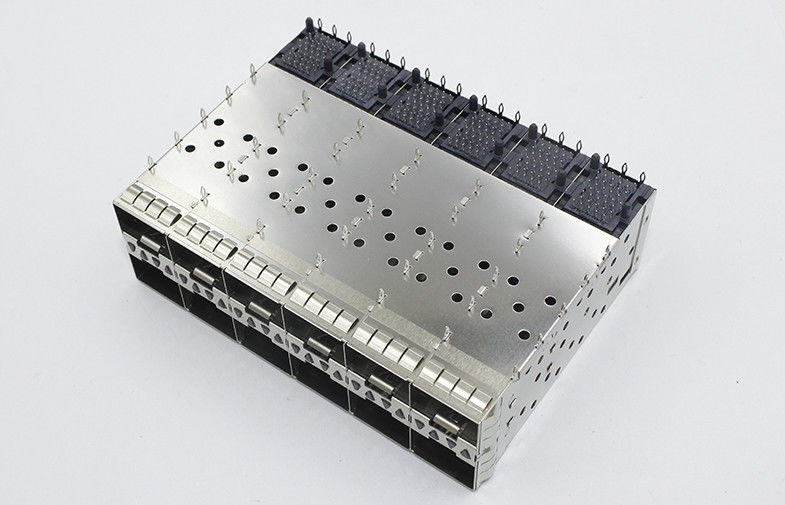

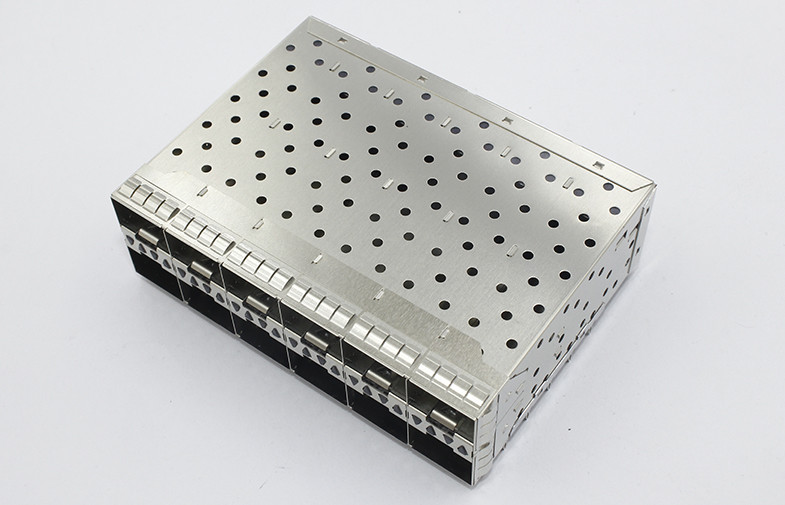

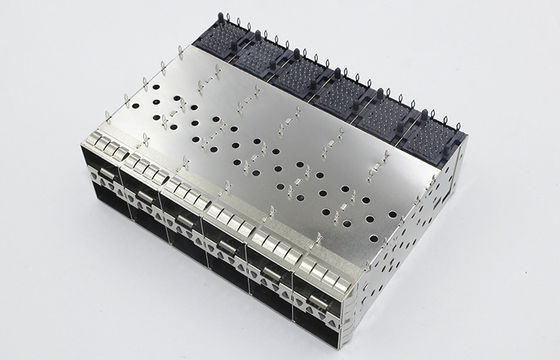

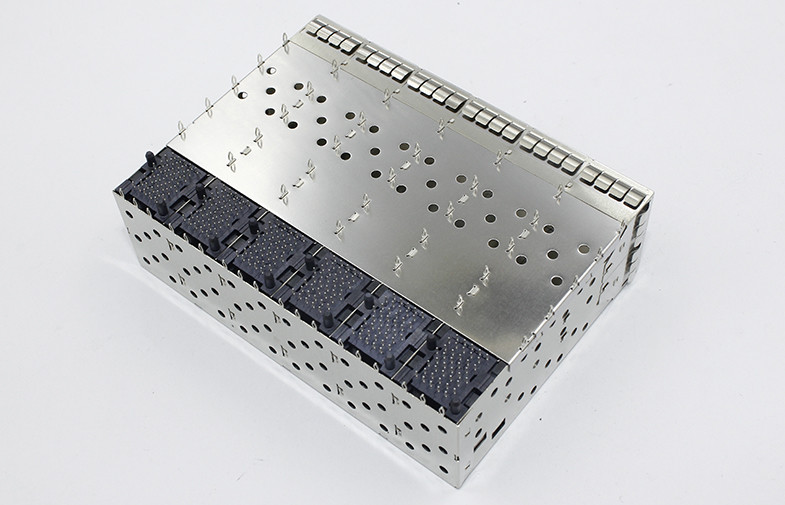

2x6 Integrated SFP+ Cage Connector with Inner Outer Light pipe Press Fit Mounting TMSFPX26EXXX4







SFP + Cage Connector(TMSFPX26EXXX4) Attributes

Model: TMSFPX26EXXX4
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : SFP+ Cage Connector
Shielded EMI Tabs: YES
Operation voltage: 3.3 V
Operation current: 0.5 A
Differential impedance: 100Ω+/-10Ω
DWV: 300V AC
Insulation resistance: 1000MΩ MIN
Contact resistance: 35 MILLIOHM MAX
Durrability: 250 MATING CYCLES MIN
Mounting: Press-fit pins
Operating temperature: -40℃ TO +85℃
Storage temperature: -55℃ TO +105℃
Process characteristics: 260℃ FOR 10 SECONDS
Tray packaging: Cage and connector assembly
Bulk packaging: Dust cover
Delivery Time: 20 Days
Supply Ability: 500K/year



SFP + Cage Connector(TMSFPX26EXXX4)Applications:

Networking equipment

Router/Switch

Data/Communications

High-end servers

Networking

Fibre Channel and Gigabit Ethernet

Servers

Storage

Telecommunications

Switches

Telecommunications hardware



SFP + Cage Connector(TMSFPX26EXXX4) Mechnical Drawing:

2x6 Sfp Cage Assembly 35 Milliohm Max Contact Resistance Tmsfpx26exxx4 02x6 Sfp Cage Assembly 35 Milliohm Max Contact Resistance Tmsfpx26exxx4 12x6 Sfp Cage Assembly 35 Milliohm Max Contact Resistance Tmsfpx26exxx4 22x6 Sfp Cage Assembly 35 Milliohm Max Contact Resistance Tmsfpx26exxx4 32x6 Sfp Cage Assembly 35 Milliohm Max Contact Resistance Tmsfpx26exxx4 42x6 Sfp Cage Assembly 35 Milliohm Max Contact Resistance Tmsfpx26exxx4 5
