2x8 Integrated SFP Cage Connector With Inner Outer Light Pipe Press Fit Mounting

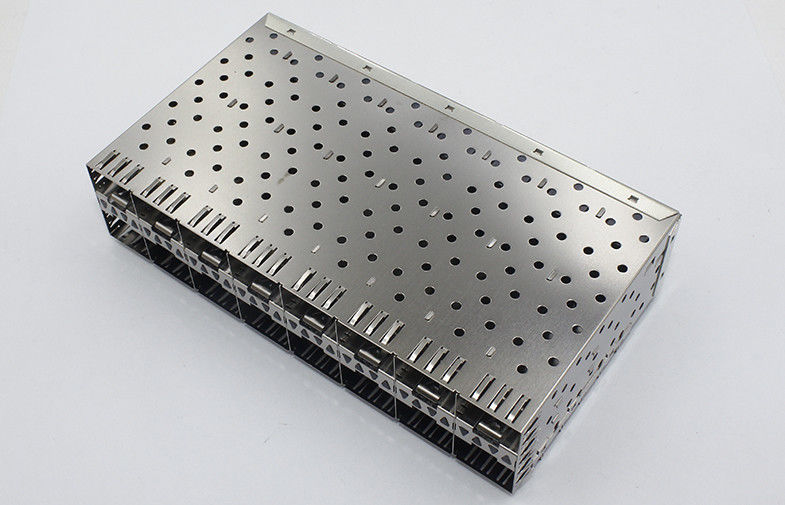

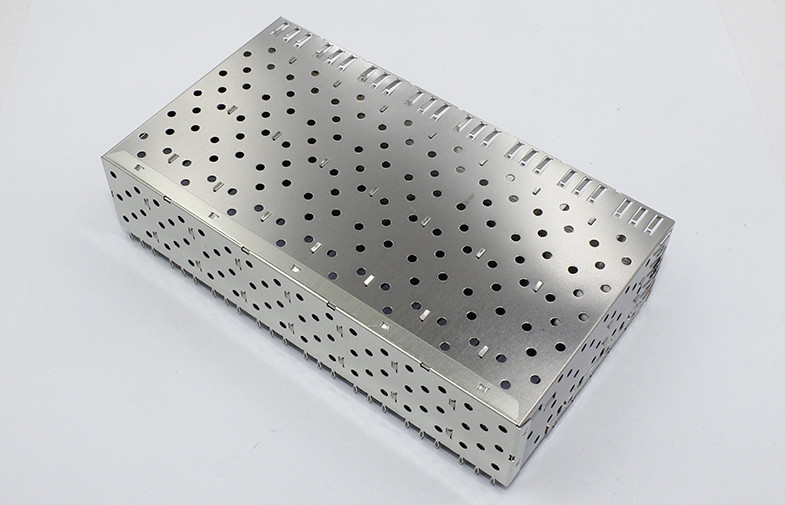

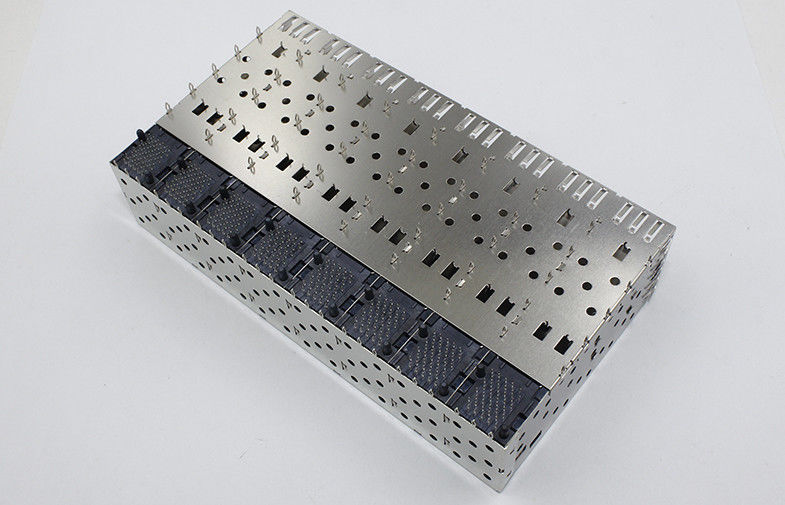

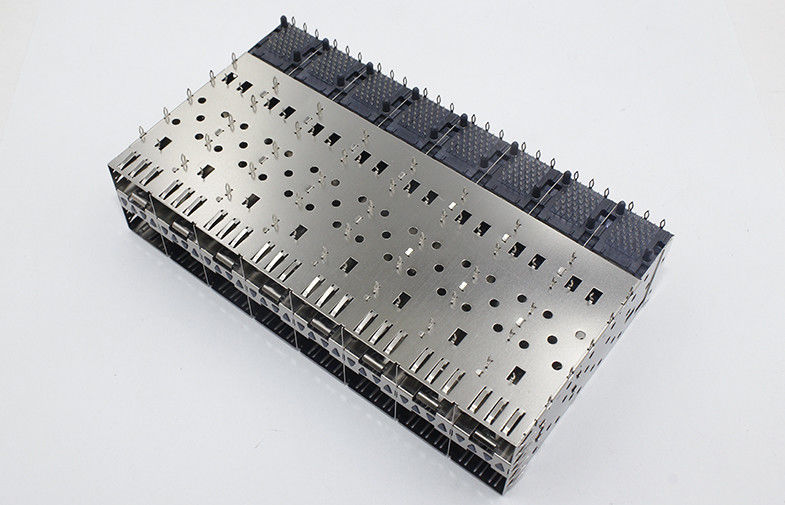

2x8 Integrated SFP Cage Connector With Inner Outer Light Pipe Press Fit Mounting 2x8 Integrated SFP Cage Connector With Inner Outer Light Pipe Press Fit Mounting 2x8 Integrated SFP Cage Connector With Inner Outer Light Pipe Press Fit Mounting 2x8 Integrated SFP Cage Connector With Inner Outer Light Pipe Press Fit Mounting
Contact Now

2x8 Integrated SFP Cage Connector With Inner Outer Light Pipe Press Fit Mounting

Minimum Order Quantity : 500 piece Price : Supportive
Packaging Details : Tray in Carton Delivery Time : 3 work days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 100kpcs /day
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMSFPX28EXXX3

Detail Information
Product Type : SFP Cage Connector Shielded EMI Tabs: YES
Operation Voltage: 3.3 V Operation Current: 0.5 A
Differential Impedance: 100Ω+/-10Ω DWV: 300V AC
Insulation Resistance: 1000MΩ MIN Contact Resistance: 35 MILLIOHM MAX
Durrability: 250 MATING CYCLES MIN Mounting: Press-fit Pins
Operating Temperature: -40℃ TO +85℃ Storage Temperature: -55℃ TO +105℃
Process Characteristics: 260℃ FOR 10 SECONDS Tray Packaging: Cage And Connector Assembly
Bulk Packaging: Dust Cover Delivery Time: 20 Days
Supply Ability: 5KK/year
High Light:

sfp module connector

,

sfp port connector

,

2x8 Integrated SFP Cage Connector

Product Description

   2x8 Integrated SFP Cage Connector with Inner Outer Light pipe Press Fit Mounting TMSFPX28EXXX3





Tian Mu satisfies costomers demand to the maximum extant for the purpose of sustainable operation. meet customer demand with clients to achieve win-win results.Forecast future, The company will continue insists on the theory of "take the talented person as a fundamental, take the market as the guaidnce,take the quality as the guarantee,take the survice as an objective "Create enterprise-class communications.



We will embrace change and make constant innovations create the glorious future with the all customer.





SFP Cage Connector (TMSFPX28EXXX3)Structure

Construction: One-piece stamped and formed metal cage
Light pipe: With inner outer light pipe
Heat Sink: Without, support custom as required
EMI Spring: With
Mounting Type: Press Fit
Integrated Connector: With
Cage Length: 63.25mm
Cage Width: 114.50mm
Cage Height: 25.40mm
Press fit Pin length: 2.7mm
Pore Number: 16 port in stacked structer



SFP Cage Connector(TMSFPX28EXXX3) Attributes

Model: TMSFPX28EXXX3
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : SFP Cage Connector
Shielded EMI Tabs: YES
Operation voltage: 3.3 V
Operation current: 0.5 A
Differential impedance: 100Ω+/-10Ω
DWV: 300V AC
Insulation resistance: 1000MΩ MIN
Contact resistance: 35 MILLIOHM MAX
Durrability: 250 MATING CYCLES MIN
Mounting: Press-fit pins
Operating temperature: -40℃ TO +85℃
Storage temperature: -55℃ TO +105℃
Process characteristics: 260℃ FOR 10 SECONDS
Tray packaging: Cage and connector assembly
Bulk packaging: Dust cover
Delivery Time: 20 Days
Supply Ability: 500K/year



SFP Cage Connector(TMSFPX28EXXX3)Applications:

Networking equipment

Router/Switch

Data/Communications

High-end servers

Networking

Fibre Channel and Gigabit Ethernet

Servers

Storage

Telecommunications

Switches

Telecommunications hardware
