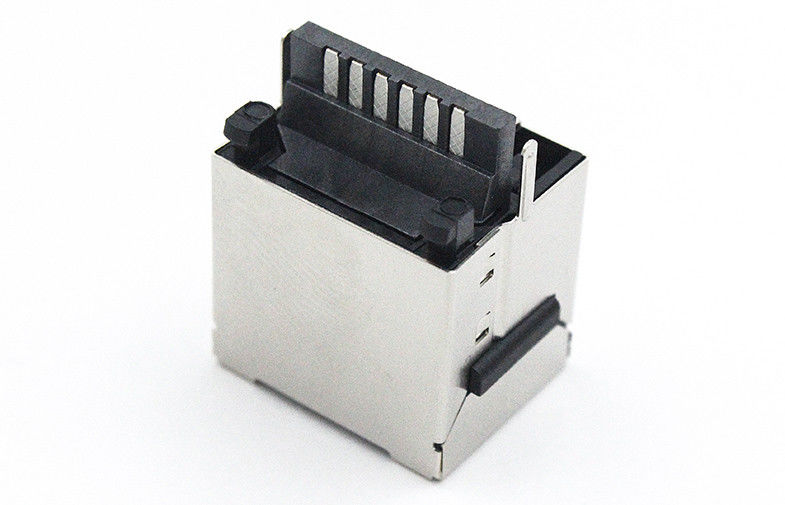

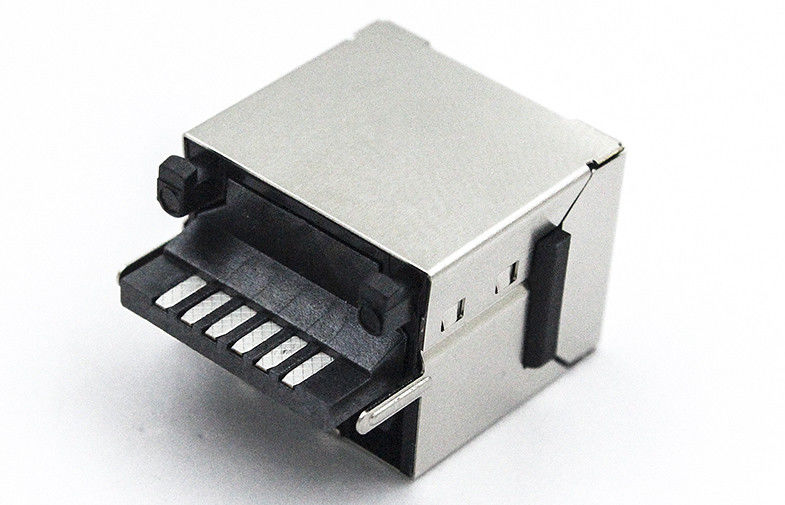

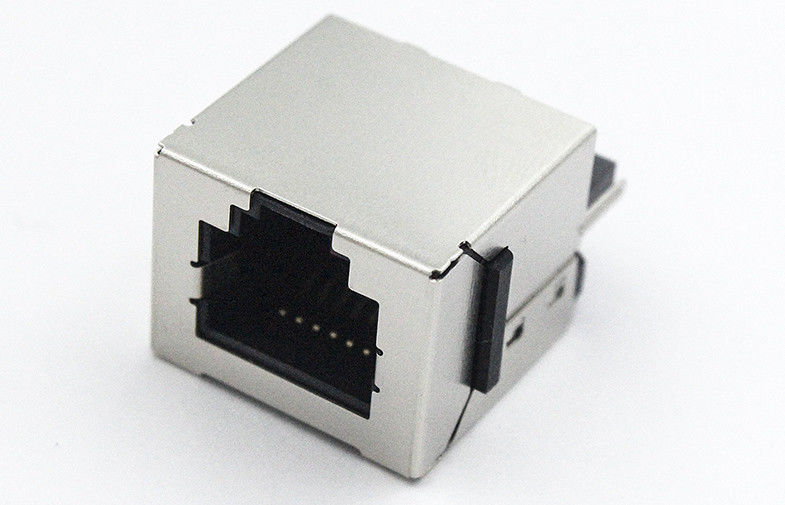

Rj11 Rj45 Jack 6p6c 180 Degree Phone Plug Single Port Without Transformer TM52M511EBX11
Rj11 Rj45 Jack 6p6c 180 Degree Phone Plug Single Port Without Transformer TM52M511EBX11 Rj11 Rj45 Jack 6p6c 180 Degree Phone Plug Single Port Without Transformer TM52M511EBX11 Rj11 Rj45 Jack 6p6c 180 Degree Phone Plug Single Port Without Transformer TM52M511EBX11
Contact Now

Rj11 Rj45 Jack 6p6c 180 Degree Phone Plug Single Port Without Transformer TM52M511EBX11

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 90pcs/tray,1800pcs/carton Delivery Time : 15 Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM52M511EBX11

Detail Information
Product Type : RJ11 Modular Connector Jack Type: RJ11
Number Of Positions: 6 Terminals Per Port: 6
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
Minimal Order: 100pcs Package: 90pcs/tray,1800pcs/carton
Carton Size: 40*28.5*16.5cm
High Light:

rj11 pcb mount connector

,

rj11 modular socket

,

6P6C 180 Degree Phone Plug

Product Description

            Rj11 Rj45 jack 6p6c 180 Degree Phone Plug Single Port Without Transformer TM52M511EBX11



Materials:


Housing:PBT,UL94V-0 ( RoHS )
Insert: PBT,UL94V-0 ( RoHS )
Contact Finish: φ0.46 mm Phosphor Bronze gold plating Fu”(Optional) over nickel
Shielding Shell: With
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Product Structure:


RJ11 Modular Jack
1 x 1 Port / Single Port / One Port
Connector Length: 15.6 mm
Connector Width: 16.0 mm
Connector Height: 12.85 mm
Termimal Solder Pin Length: 0 mm
6P6C ( 6 positions 6 contacts )
180°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required



RJ11 Without Transformer (TM52M511EBX11) Attributes:



Model: TM52M511EBX11
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ11 Modular Connector
Jack Type: RJ11
Number of Positions : 6
Terminals per Port: 6
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 90pcs/tray,1800pcs/carton
Carton size: 40*28.5*16.5cm
Delivery Time: 15 Days
Supply Ability: 5KK/year



RJ45 Female Connector (TM52M511EBX11) Mechnical Drawing:

Rj11 Rj45 Jack 6p6c 180 Degree Phone Plug Single Port Without Transformer TM52M511EBX11 0Rj11 Rj45 Jack 6p6c 180 Degree Phone Plug Single Port Without Transformer TM52M511EBX11 1Rj11 Rj45 Jack 6p6c 180 Degree Phone Plug Single Port Without Transformer TM52M511EBX11 2Rj11 Rj45 Jack 6p6c 180 Degree Phone Plug Single Port Without Transformer TM52M511EBX11 3
