180 Degree Rj11 6p6c Connector By Ear PBT Black Without Transformer TM52T511SBX1B

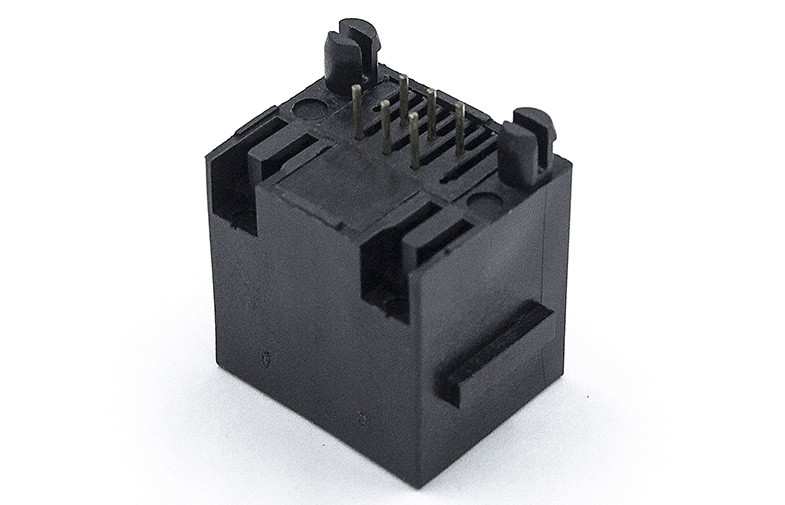

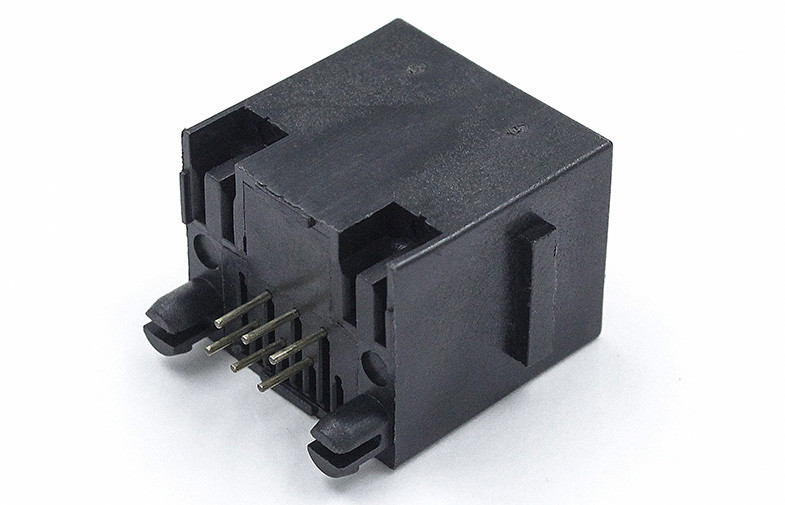

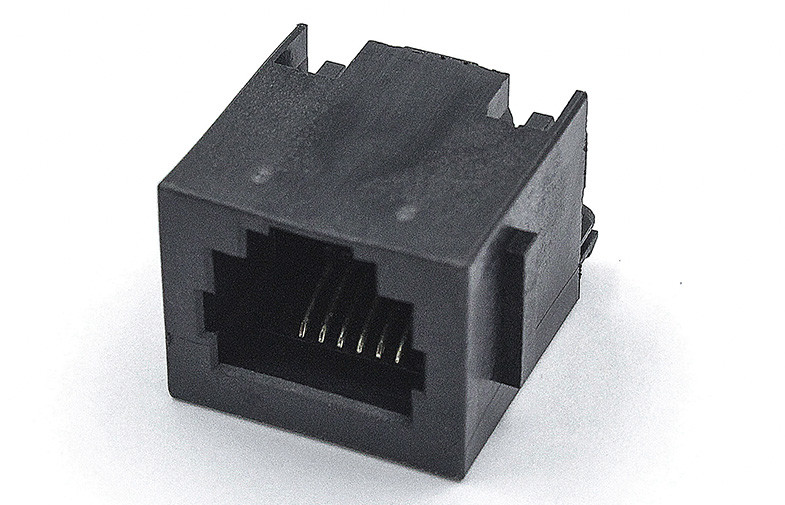

180 Degree Rj11 6p6c Connector By Ear PBT Black Without Transformer TM52T511SBX1B 180 Degree Rj11 6p6c Connector By Ear PBT Black Without Transformer TM52T511SBX1B 180 Degree Rj11 6p6c Connector By Ear PBT Black Without Transformer TM52T511SBX1B
Contact Now

180 Degree Rj11 6p6c Connector By Ear PBT Black Without Transformer TM52T511SBX1B

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 90pcs/tray,1800pcs/carton Delivery Time : 15 Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM52T511SBX1B

Detail Information
LED Option: No Jack Type: RJ11
Number Of Positions: 6 Terminals Per Port: 6
Shielded EMI Tabs: No Voltage Rating: 125 V
Current Rating: 1.5 A Contact Resistance: 30mΩ
Insulation Resistance: 500 MΩ MIN @ 500V DC Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN Minimal Order: 2520pcs
Package: 70pcs/tray,2520pcs/carton
High Light:

rj11 pcb mount connector

,

rj11 modular socket

,

180 Degree RJ11 6P6C Connector

Product Description

 6p6c 180 Degree RJ11 Jack with Ear PBT Black RJ11 Connector without transformer TM52T511SBX1B



Materials:


Housing:PBT,UL94V-0 ( RoHS )
Insert: PBT,UL94V-0 ( RoHS )
Contact Finish: φ0.46 mm Phosphor Bronze gold plating Fu”(Optional) over nickel
Shielding Shell: Without
All materials mates with modulat plug conforming to FCC part 68. subpart F.



Product Structure:



RJ11 Modular Jack
1 x 1 Port / Single Port / One Port
Connector Length: 15.6 mm
Connector Width: 16.0 mm
Connector Height: 12.85 mm
Termimal Solder Pin Length: 3.1 mm
6P6C ( 6 positions 6 contacts )
180°Orientation
Without LED, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required



RJ11 Without Transformer (TM52T511SBX1B) Attributes:



Model: TM52T511SBX1B
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ11 Modular Connector
Jack Type: RJ11
Number of Positions : 6
Terminals per Port: 6
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 70pcs/tray,2520pcs/carton
Carton size: 39*27.5*30cm
Delivery Time: 15 Days
Supply Ability: 5KK/year



RJ45 Female Connector (TM52T511SBX1B) Mechnical Drawing:

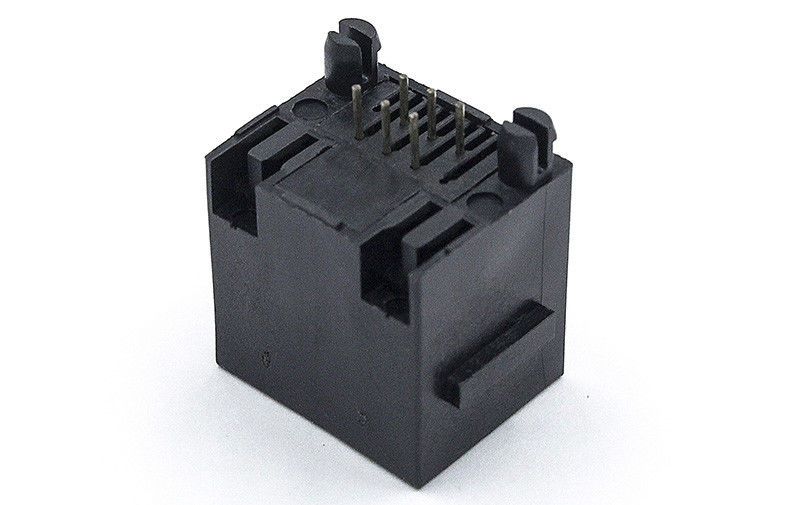

180 Degree Rj11 6p6c Connector By Ear PBT Black Without Transformer TM52T511SBX1B 0180 Degree Rj11 6p6c Connector By Ear PBT Black Without Transformer TM52T511SBX1B 0180 Degree Rj11 6p6c Connector By Ear PBT Black Without Transformer TM52T511SBX1B 2180 Degree Rj11 6p6c Connector By Ear PBT Black Without Transformer TM52T511SBX1B 3180 Degree Rj11 6p6c Connector By Ear PBT Black Without Transformer TM52T511SBX1B 4180 Degree Rj11 6p6c Connector By Ear PBT Black Without Transformer TM52T511SBX1B 5
