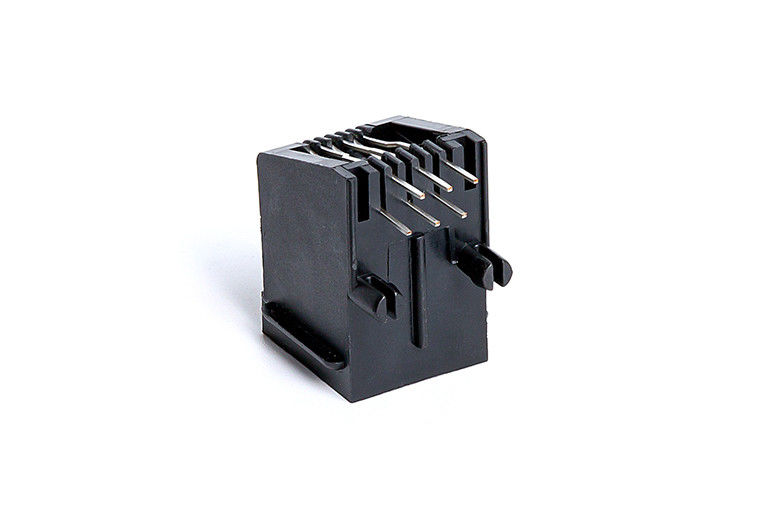

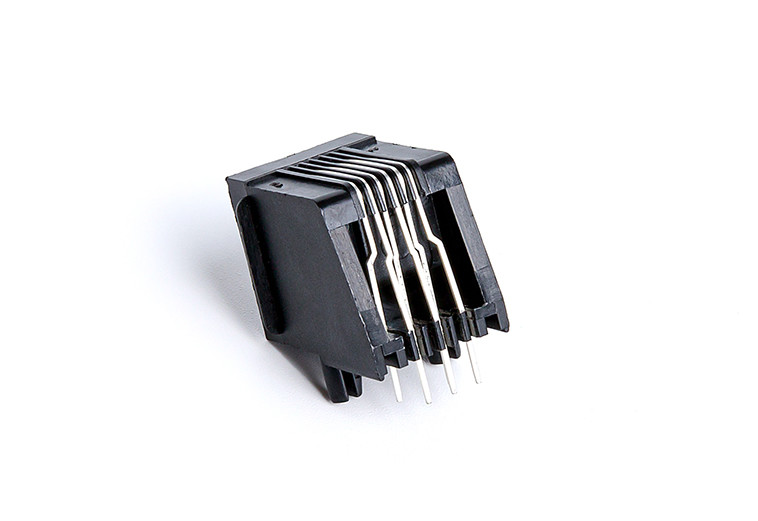

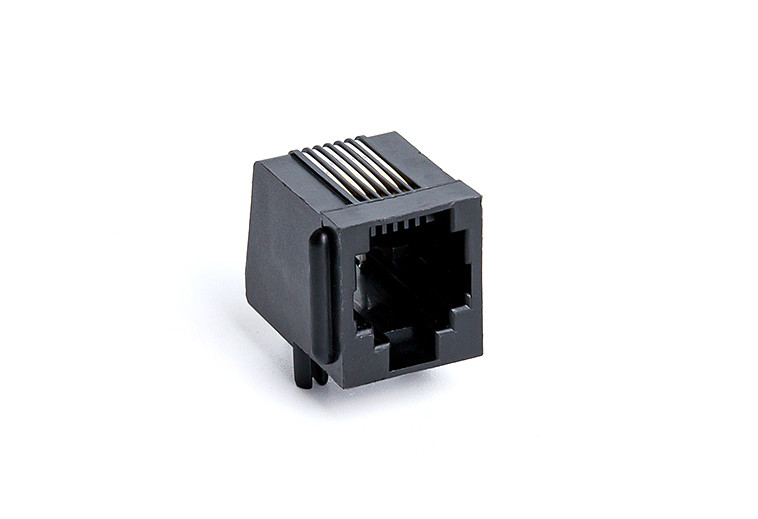

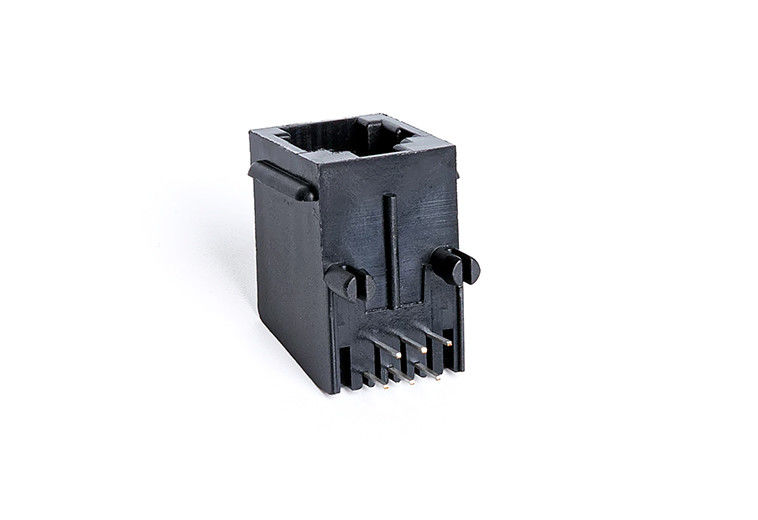

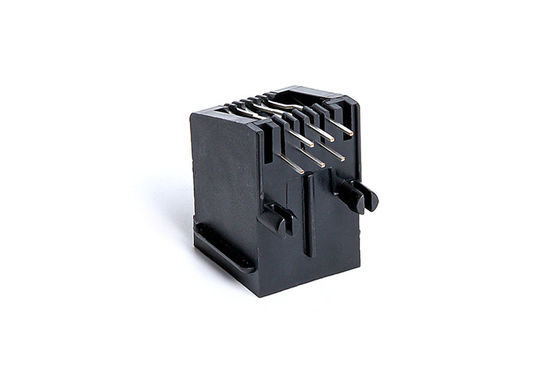

PBT Black RJ11 PCB Jack / Mini Rj11 Connector Without Led TM571511SBX1B
PBT Black RJ11 PCB Jack / Mini Rj11 Connector Without Led TM571511SBX1B PBT Black RJ11 PCB Jack / Mini Rj11 Connector Without Led TM571511SBX1B PBT Black RJ11 PCB Jack / Mini Rj11 Connector Without Led TM571511SBX1B PBT Black RJ11 PCB Jack / Mini Rj11 Connector Without Led TM571511SBX1B
Contact Now

PBT Black RJ11 PCB Jack / Mini Rj11 Connector Without Led TM571511SBX1B

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 70pcs/tray Delivery Time : 15 Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM571511SBX1B

Detail Information
Product Type : RJ11 Modular Connector Jack Type: RJ11
Number Of Positions: 6 Terminals Per Port: 6
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
Minimal Order: 500pcs Package: 70pcs/tray
High Light:

rj11 pcb mount connector

,

rj11 modular plug

,

PBT Black RJ11 PCB Jack

Product Description

PBT black single port 6 positions 6 contacts rj11 jack unshiled without led TM571511SBX1B



Materials:



Housing:PBT,UL94V-0 ( RoHS )
Contact Finish: φ0.46 mm Phosphor Bronze gold plating Fu”(Optional) over nickel
Shielding Shell: Without
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Product Structure:


RJ11 PCB Jack
1 x 1 Port / Single Port / One Port
Connector Length: 20.6 mm
Connector Width: 13.21 mm
Connector Height: 15.5 mm
Termimal Solder Pin Length: 3.6 mm
6P6C ( 6 positions 6 contacts )
90°Orientation
Without LED, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required


RJ11 Without Transformer (TM571511SBX1B) Attributes:

Model: TM571511SBX1B
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ11 Modular Connector
Jack Type: RJ11
Number of Positions : 6
Terminals per Port: 6
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 70pcs/tray
Delivery Time: 15 Days
Supply Ability: 5KK/year



RJ45 Female Connector (TM571511SBX1B) Mechnical Drawing:

PBT Black RJ11 PCB Jack / Mini Rj11 Connector Without Led TM571511SBX1B 0PBT Black RJ11 PCB Jack / Mini Rj11 Connector Without Led TM571511SBX1B 1PBT Black RJ11 PCB Jack / Mini Rj11 Connector Without Led TM571511SBX1B 2PBT Black RJ11 PCB Jack / Mini Rj11 Connector Without Led TM571511SBX1B 3PBT Black RJ11 PCB Jack / Mini Rj11 Connector Without Led TM571511SBX1B 4PBT Black RJ11 PCB Jack / Mini Rj11 Connector Without Led TM571511SBX1B 5
