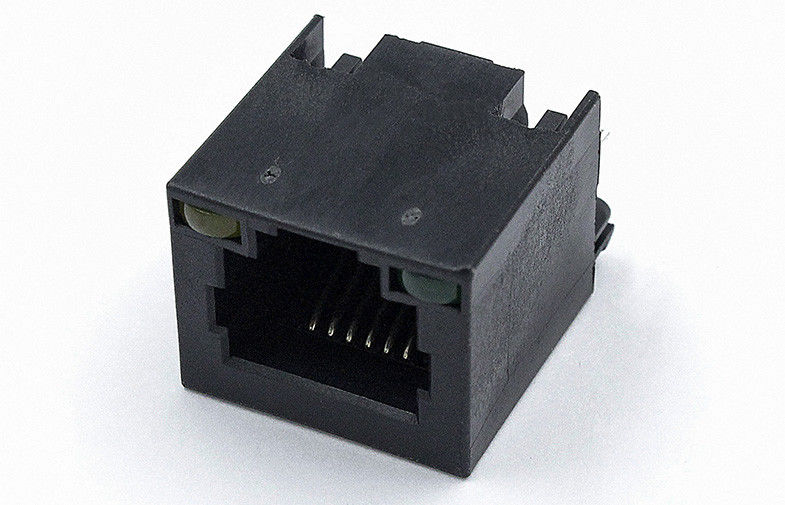

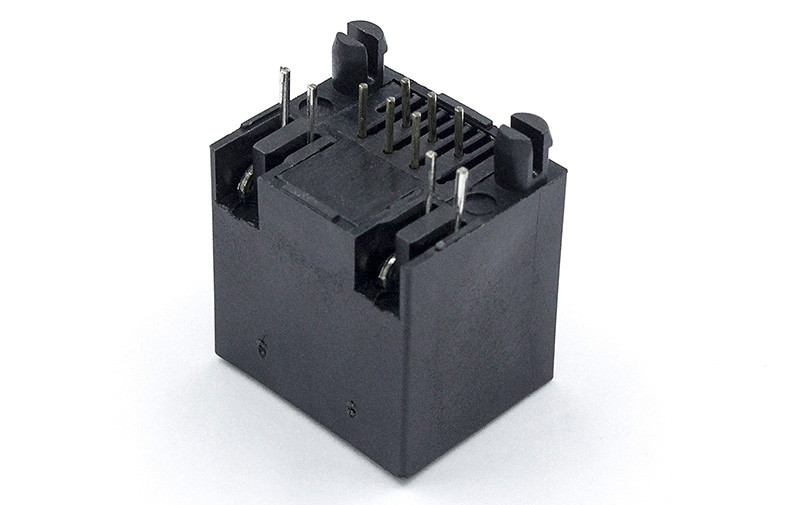

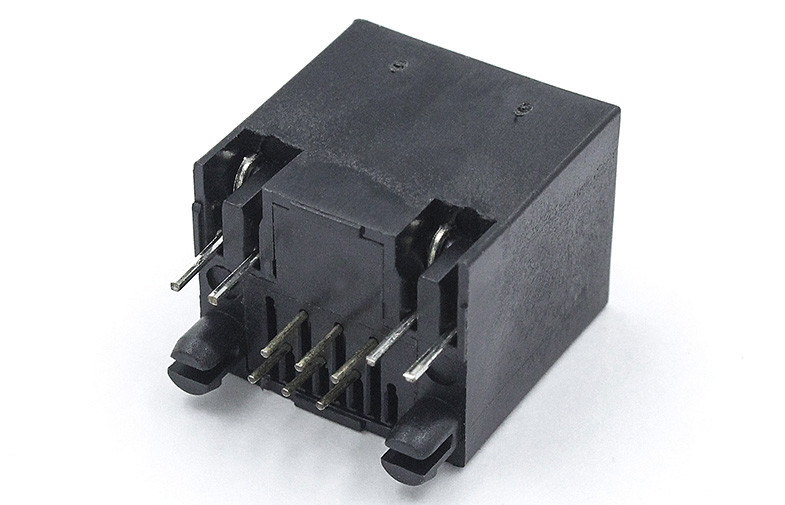

Rj11 Pcb Mount Connector With Leds Ear Tab Down 6p6c 180 Degree TM52T511SX111
Rj11 Pcb Mount Connector With Leds Ear Tab Down 6p6c 180 Degree TM52T511SX111 Rj11 Pcb Mount Connector With Leds Ear Tab Down 6p6c 180 Degree TM52T511SX111 Rj11 Pcb Mount Connector With Leds Ear Tab Down 6p6c 180 Degree TM52T511SX111
Contact Now

Rj11 Pcb Mount Connector With Leds Ear Tab Down 6p6c 180 Degree TM52T511SX111

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 90pcs/tray,1800pcs/carton Delivery Time : 15 Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM52T511SX111

Detail Information
Number Of Positions: 6 Terminals Per Port: 6
Product Type : RJ11 Modular Connector LED Option: LEFT YELLOW,RIGHT GREEN
Jack Type: RJ11 Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
Minimal Order: 2520pcs Package: 100pcs/tray,4000pcs/carton
Carton Size: 39*27.5*30cm
High Light:

rj11 pcb mount connector

,

rj11 modular socket

,

RJ11 PCB Mount Connector With LEDs

Product Description

Tab Down 6p6c 180 Degree RJ11 Jack with Ear and leds TM52T511SX111



Materials:


Housing:PBT,UL94V-0 ( RoHS )
Insert: PBT,UL94V-0 ( RoHS )
Contact Finish: φ0.46 mm Phosphor Bronze gold plating Fu”(Optional) over nickel
Shielding Shell: Without
All materials mates with modulat plug conforming to FCC part 68. subpart F.



Product Structure:



RJ11 Modular Jack
1 x 1 Port / Single Port / One Port
Connector Length: 15.6 mm
Connector Width: 16.0 mm
Connector Height: 12.85 mm
Termimal Solder Pin Length: 3.1 mm
6P6C ( 6 positions 6 contacts )
180°Orientation
With LED left yellow,right green, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required



 RJ11 Without Transformer (TM52T511SX111) Attributes:



Model: TM52T511SX111
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ11 Modular Connector
Jack Type: RJ11
Number of Positions : 6
Terminals per Port: 6
LED Option: LEFT YELLOW,RIGHT GREEN
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 100pcs/tray,4000pcs/carton
Carton size: 39*27.5*30cm
Delivery Time: 15 Days
Supply Ability: 5KK/year



RJ45 Female Connector (TM52T511SX111) Mechnical Drawing:

Rj11 Pcb Mount Connector With Leds Ear Tab Down 6p6c 180 Degree TM52T511SX111 0Rj11 Pcb Mount Connector With Leds Ear Tab Down 6p6c 180 Degree TM52T511SX111 1

Rj11 Pcb Mount Connector With Leds Ear Tab Down 6p6c 180 Degree TM52T511SX111 2Rj11 Pcb Mount Connector With Leds Ear Tab Down 6p6c 180 Degree TM52T511SX111 3Rj11 Pcb Mount Connector With Leds Ear Tab Down 6p6c 180 Degree TM52T511SX111 4
