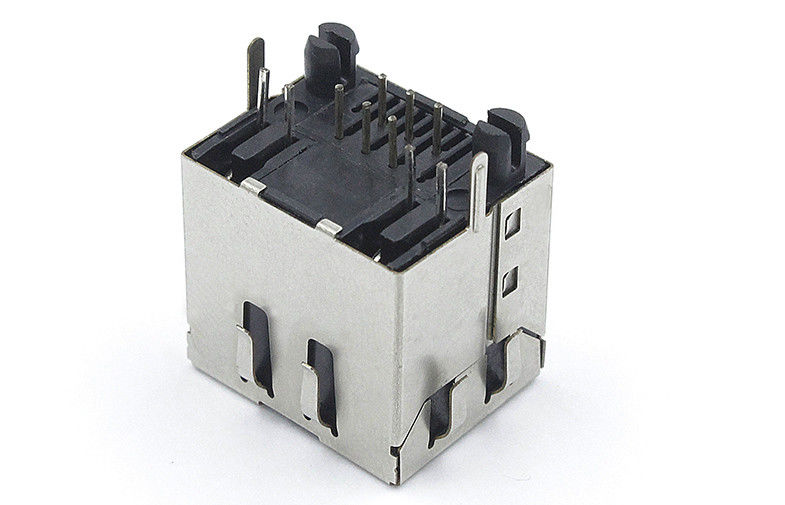

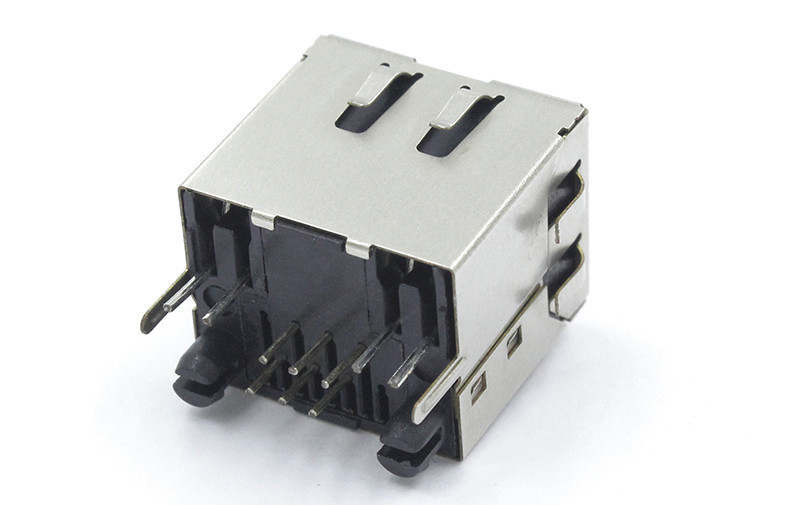

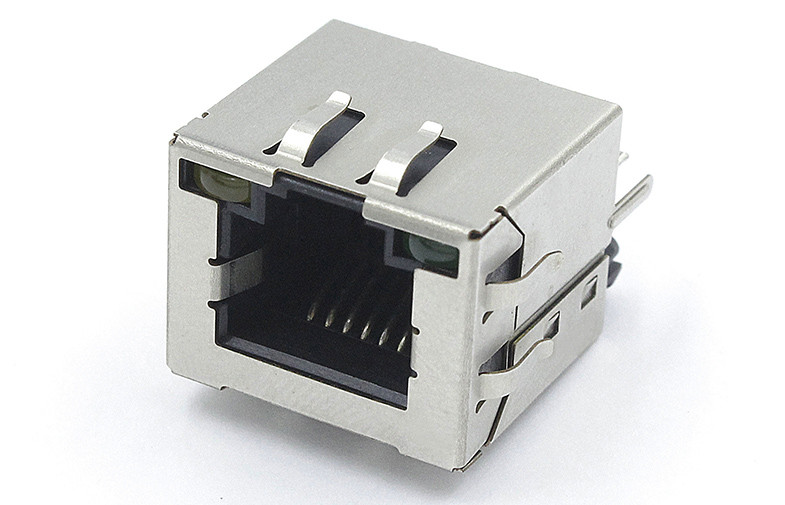

Single Port RJ11 PCB Jack 6 Pins 6 Contacts Shiled EMI Leds TM-52T6611ET2L1
Single Port RJ11 PCB Jack 6 Pins 6 Contacts Shiled EMI Leds TM-52T6611ET2L1 Single Port RJ11 PCB Jack 6 Pins 6 Contacts Shiled EMI Leds TM-52T6611ET2L1 Single Port RJ11 PCB Jack 6 Pins 6 Contacts Shiled EMI Leds TM-52T6611ET2L1
Contact Now

Single Port RJ11 PCB Jack 6 Pins 6 Contacts Shiled EMI Leds TM-52T6611ET2L1

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 90pcs/tray,1800pcs/carton Delivery Time : 15 Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM-52T6611ET2L1

Detail Information
Number Of Positions: 6 Terminals Per Port: 6
LED Option: No Shielded EMI Tabs: YES
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
Minimal Order: 2520pcs Package: 70pcs/tray,2520pcs/carton
Carton Size: 39*27.5*30cm
High Light:

rj11 modular socket

,

rj11 modular plug

,

Shiled EMI LEDs RJ11 PCB Jack

Product Description

                     Single Port 6 pins 6 Contacts RJ11 Jack with shiled EMI and Leds TM-52T6611ET2L1



Materials:


Housing:PBT,UL94V-0 ( RoHS )
Insert: PBT,UL94V-0 ( RoHS )
Contact Finish: φ0.46 mm Phosphor Bronze gold plating Fu”(Optional) over nickel
Shielding Shell: With
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Product Structure:


RJ11 Modular Jack
1 x 1 Port / Single Port / One Port
Connector Length: 15.8 mm
Connector Width: 16.6 mm
Connector Height: 13.3 mm
Termimal Solder Pin Length: 3.1 mm
6P6C ( 6 positions 6 contacts )
180°Orientation
Without LED, let know the connection status
With Shield,can be customized as required



RJ11 Without Transformer (TM-52T6611ET2L1) Attributes:



Model: TM-52T6611ET2L1
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ11 Modular Connector
Jack Type: RJ11
Number of Positions : 6
Terminals per Port: 6
LED Option: No
Shielded EMI Tabs: YES
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 2520pcs
Package: 70pcs/tray,2520pcs/carton
Carton size: 39*27.5*30cm
Delivery Time: 15 Days
Supply Ability: 5KK/year



RJ45 Female Connector (TM-52T6611ET2L1) Mechnical Drawing:

Single Port RJ11 PCB Jack 6 Pins 6 Contacts Shiled EMI Leds TM-52T6611ET2L1 0Single Port RJ11 PCB Jack 6 Pins 6 Contacts Shiled EMI Leds TM-52T6611ET2L1 1Single Port RJ11 PCB Jack 6 Pins 6 Contacts Shiled EMI Leds TM-52T6611ET2L1 2Single Port RJ11 PCB Jack 6 Pins 6 Contacts Shiled EMI Leds TM-52T6611ET2L1 3
