Unshiled RJ11 PCB Jack / Rj11 Female Jack SGS ISO Approval TM53B511SXX4B

Name: Unshiled RJ11 PCB Jack / Rj11 Female Jack SGS ISO Approval TM53B511SXX4B
Brand: TM
SKU: TM53B511SXX4B
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (179 reviews)

Minimum Order Quantity :	500/1000/2000 pcs	Price :	Supportive
Packaging Details :	100pcs/tray	Delivery Time :	15 Days
Payment Terms :	T/T, Western Union, ,Paypal	Supply Ability :	500K/year

Place of Origin:	Guangdong of China	Brand Name:	TM
Certification:	UL,Rohs,Reach,ISO9001	Model Number:	TM53B511SXX4B

Detail Information
LED Option:	No	Product Type :	RJ11 Modular Connector
Shielded EMI Tabs:	No	Jack Type:	RJ11
Number Of Positions:	6	Terminals Per Port:	6
Voltage Rating:	125 V	Current Rating:	1.5 A
Contact Resistance:	30mΩ	Insulation Resistance:	500 MΩ MIN @ 500V DC
Dielectric Resistance:	1000V AC RMS 50Hz. 1MIN	Durrability:	750 CYCLES MIN
Minimal Order:	500pcs	Package:	100pcs/tray
High Light:	rj11 pcb mount connector , rj11 modular plug , Unshiled RJ11 PCB Jack SGS

Product Description

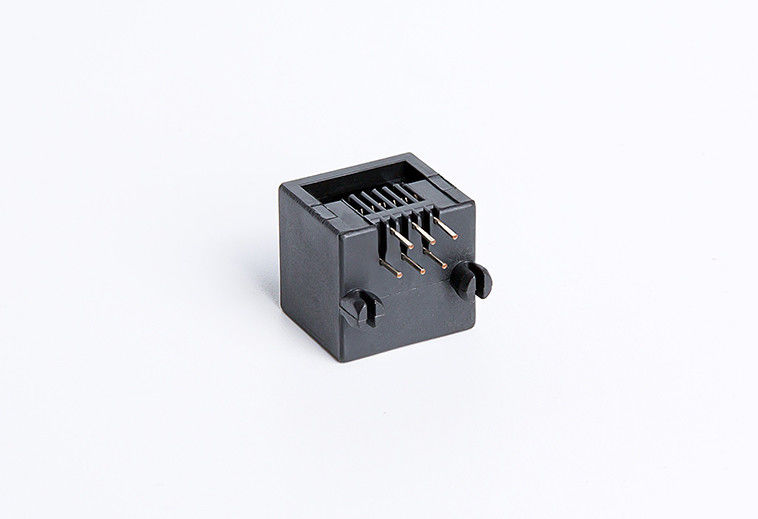

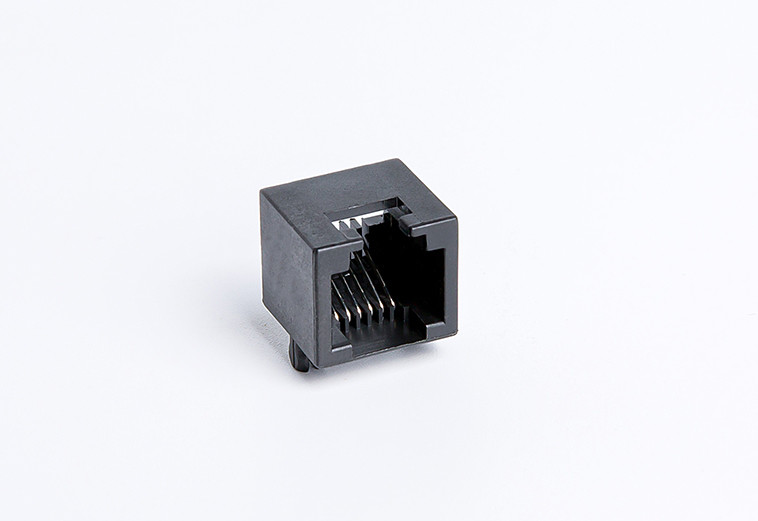

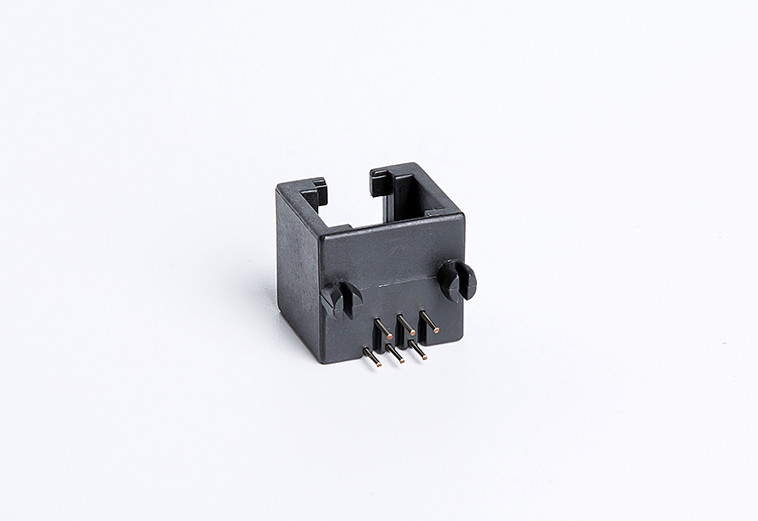

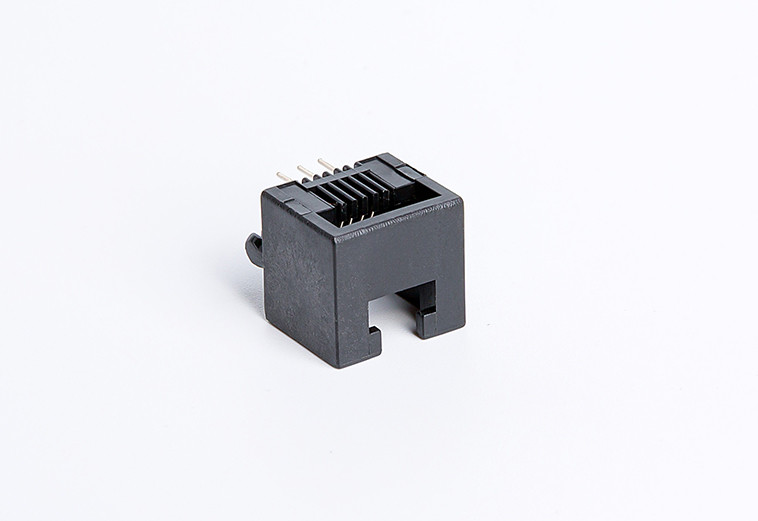

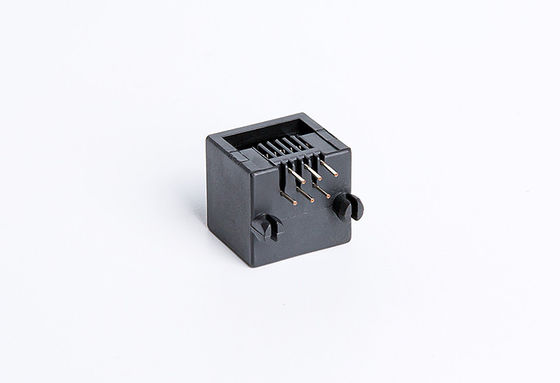

Unshiled SGS ISO Approval Mini single port 6 positions 6 contacts female rj11 connector TM53B511SXX4B

Materials:

Housing:PBT,UL94V-0 ( RoHS )
Contact Finish: φ0.46 mm Phosphor Bronze gold plating Fu”(Optional) over nickel
Shielding Shell: Without
All materials mates with modulat plug conforming to FCC part 68. subpart F.

Product Structure:

RJ11 Modular Jack
1 x 1 Port / Single Port / One Port
Connector Length: 12.0 mm
Connector Width: 13.1 mm
Connector Height: 11.5 mm
Termimal Solder Pin Length: 3.0 mm
6P6C ( 6 positions 6 contacts )
90°Orientation
Without LED, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required

RJ11 Without Transformer (TM53B511SXX4B) Attributes:

Model:	TM53B511SXX4B
Place of Origin:	Guangdong of China
Certification:	UL,Rohs,Reach,ISO9001
Product Type :	RJ11 Modular Connector
Jack Type:	RJ11
Number of Positions :	6
Terminals per Port:	6
LED Option:	No
Shielded EMI Tabs:	No
Voltage rating:	125 V
Current rating:	1.5 A
Contact resistance:	30mΩ
Insulation resistance:	500 MΩ MIN @ 500V DC
Dielectric resistance:	1000V AC RMS 50Hz. 1MIN
Durrability:	750 CYCLES MIN
Minimal Order:	1pcs
Package:	100pcs/tray
Delivery Time:	20 Days
Supply Ability:	5KK/year

RJ11 Female Connector (TM53B511SXX4B) Mechnical Drawing:

Unshiled RJ11 PCB Jack / Rj11 Female Jack SGS ISO Approval TM53B511SXX4B 0
