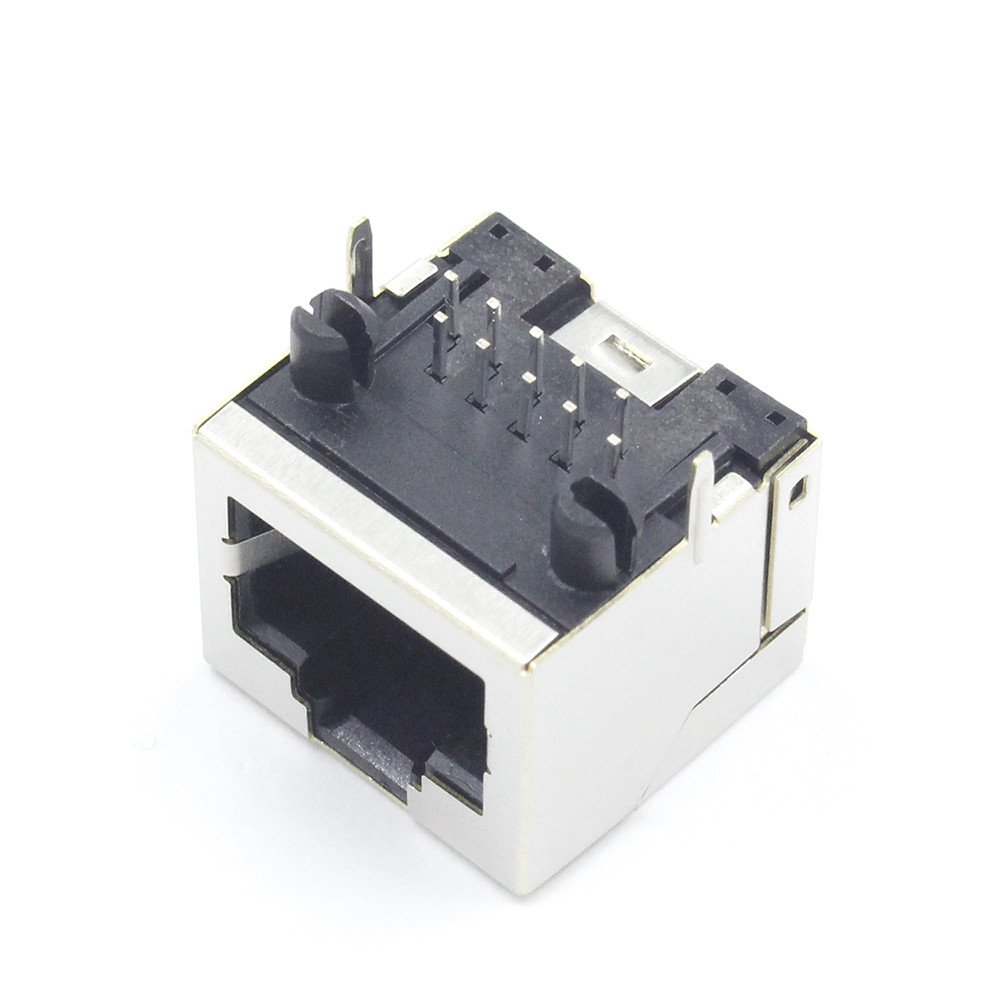

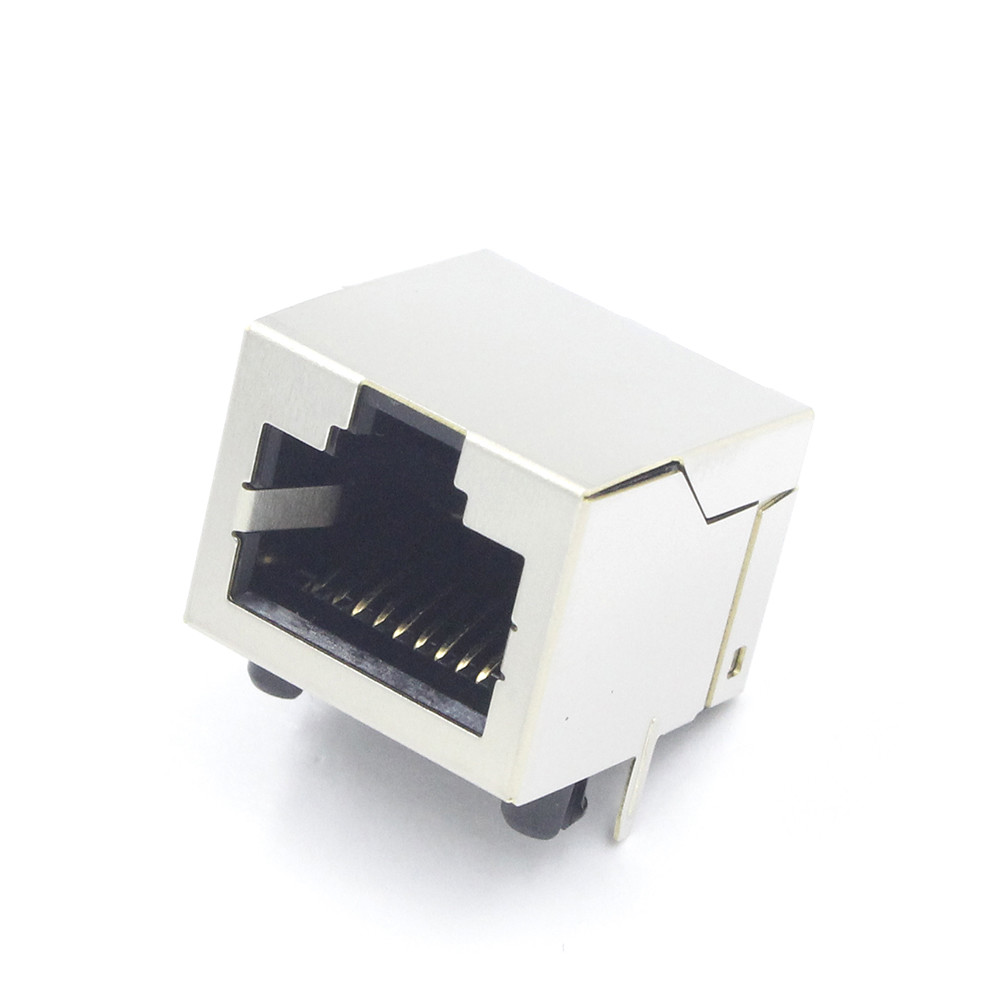

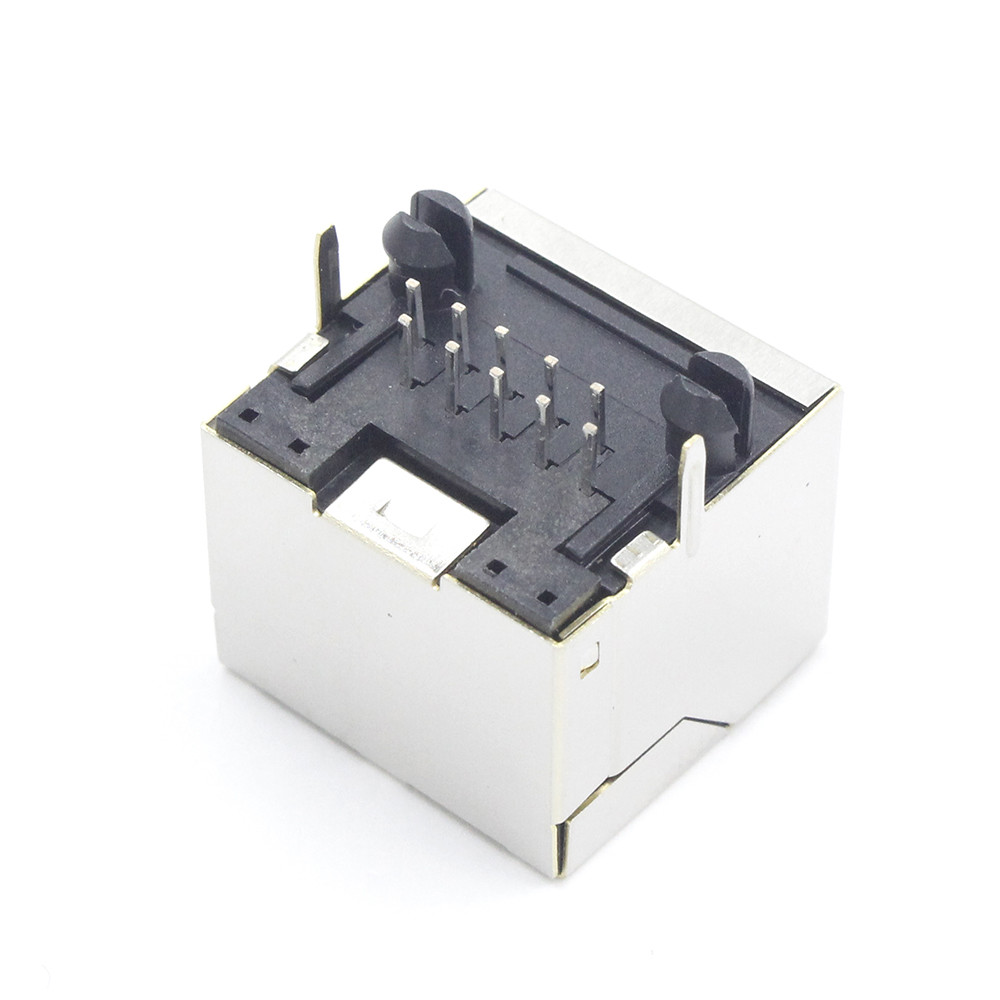

Hot Sale Female 10 Pin RJ45 Connector Shield Without Led Transformer TM5JA011EXX41 14.80 Mm
Hot Sale Female 10 Pin RJ45 Connector Shield Without Led Transformer TM5JA011EXX41 14.80 Mm Hot Sale Female 10 Pin RJ45 Connector Shield Without Led Transformer TM5JA011EXX41 14.80 Mm Hot Sale Female 10 Pin RJ45 Connector Shield Without Led Transformer TM5JA011EXX41 14.80 Mm
Contact Now

Hot Sale Female 10 Pin RJ45 Connector Shield Without Led Transformer TM5JA011EXX41 14.80 Mm

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 90pcs/tray,1800pcs/carton Delivery Time : 20Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM5JA011EXX41

Detail Information
Shielded EMI Tabs: No Current Rating: 1.5 A
Number Of Positions: 10 Terminals Per Port: 10
LED Option: No Voltage Rating: 125 V
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
Minimal Order: 500PCS Package: 90pcs/tray,1800pcs/carton
Keywords: 10 Pin Rj45 Connector/rj45 Female Connector/rj45 Jack/rj45 Socket
High Light:

10 pin ethernet connector

,

cat5e rj45 connector

,

Female 10 Pin RJ45 Connector Shield

Product Description

Hot sale Female 10 Pin RJ45 Connector Shield Without Led Transformer TM5JA011EXX41 14.80 Mm



Materials:

Housing : PBT,UL94V-0 ( RoHS )
Contact Finish: T=0.35mm Phosphor Bronze,CONTACT AREA-SELECTIVE GOLD PLATING 6u”,TAILS PLATING TIN OVER NICKEL( RoHS )
Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Product Structure:

RJ45 Jack
1 x 1 Port / Single Port / One Port
Latch Up
Connector Length: 14.80 mm
Connector Width: 16.80 mm
Connector Height: 14.90 mm
Termimal Solder Pin Length: 3.2 mm
10P10C ( 10 positions 10 contacts )
90°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required


RJ45 Without Transformer (TM5JA011EXX41) Attributes:



Model: TM5JA011EXX41
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ48 Modular Connector
Jack Type: RJ48
Number of Positions : 10
Terminals per Port: 10
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 90pcs/tray,1800pcs/carton
Delivery Time: 20 Days
Supply Ability: 5KK/year



RJ45 Female Connector (TM5JA011EXX41) Mechnical Drawing:

Hot Sale Female 10 Pin RJ45 Connector Shield Without Led Transformer TM5JA011EXX41 14.80 Mm 0Hot Sale Female 10 Pin RJ45 Connector Shield Without Led Transformer TM5JA011EXX41 14.80 Mm 1Hot Sale Female 10 Pin RJ45 Connector Shield Without Led Transformer TM5JA011EXX41 14.80 Mm 2Hot Sale Female 10 Pin RJ45 Connector Shield Without Led Transformer TM5JA011EXX41 14.80 Mm 3
