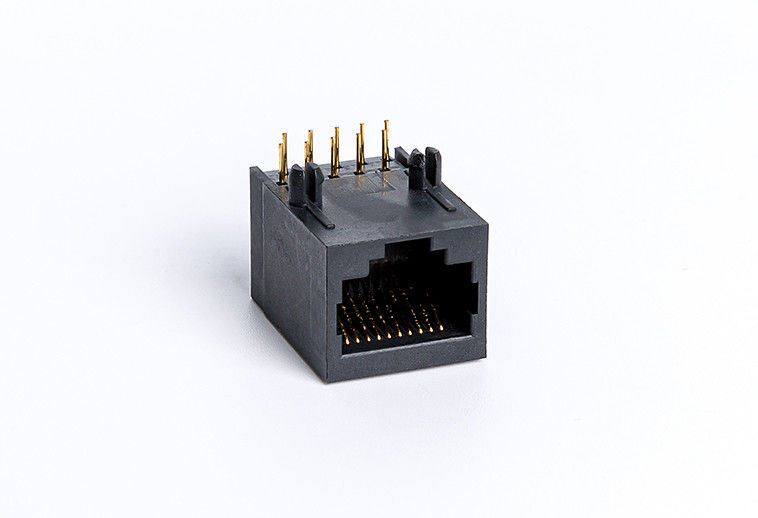

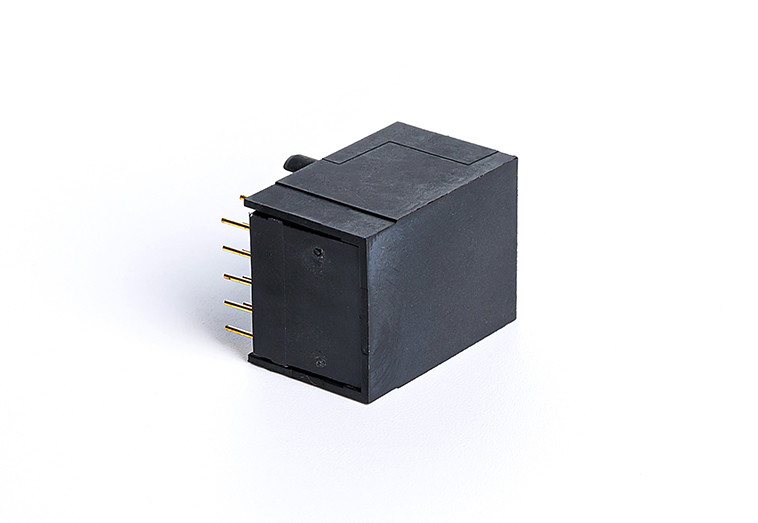

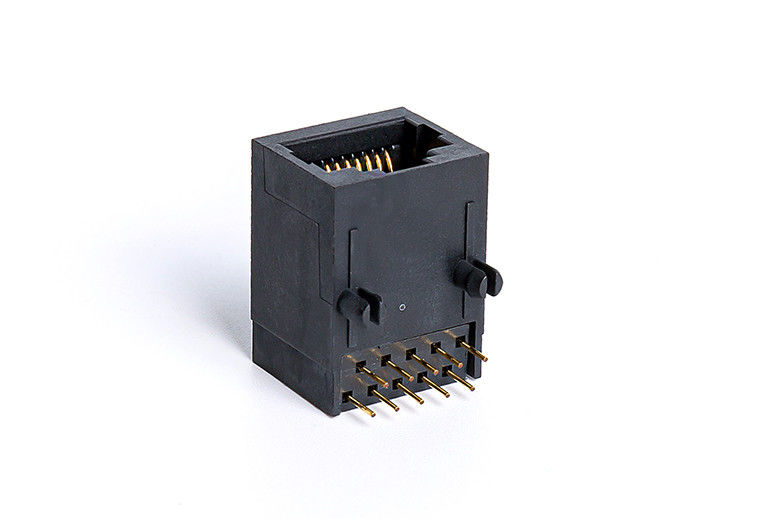

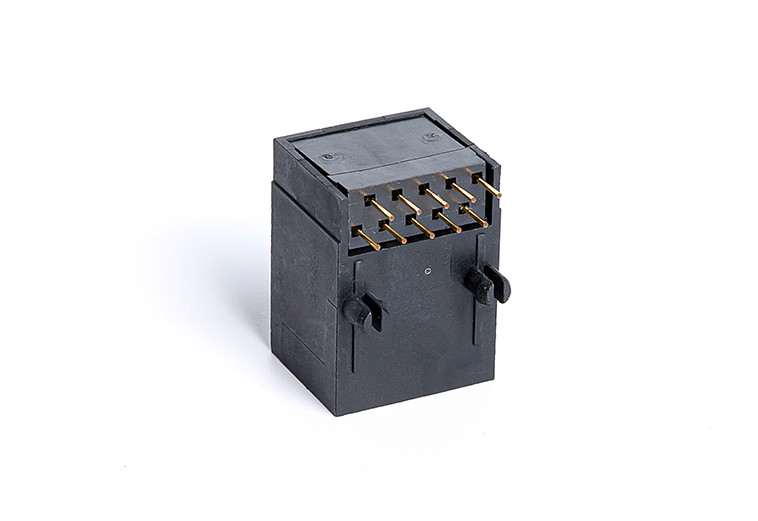

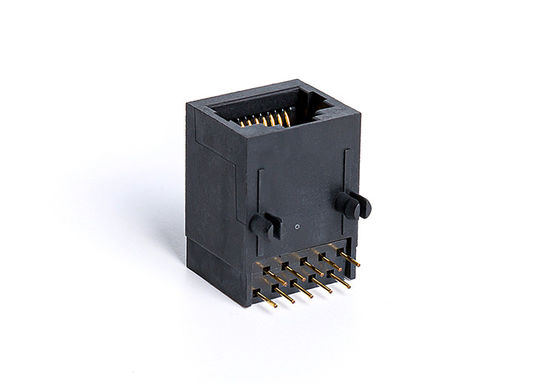

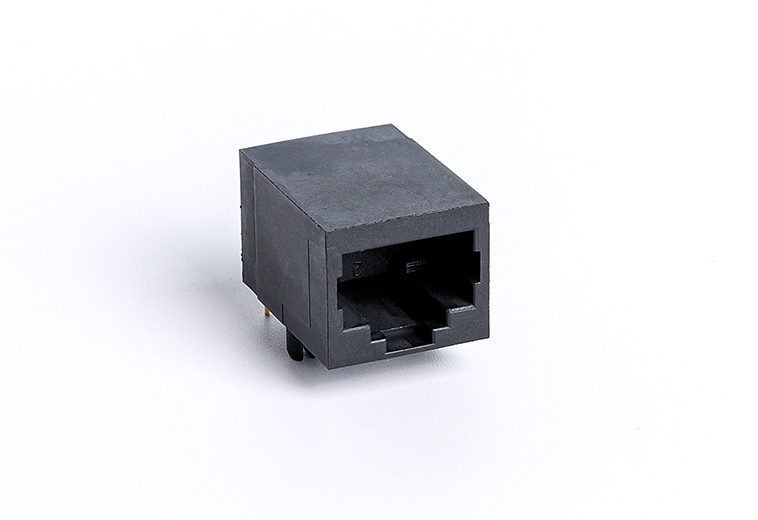

10 Pin RJ45 with 90 Degree Vertical Modular Female PCB Jack cat5e rj45 connector Price TM59A011SXX11
10 Pin RJ45 with 90 Degree Vertical Modular Female PCB Jack cat5e rj45 connector Price TM59A011SXX11 10 Pin RJ45 with 90 Degree Vertical Modular Female PCB Jack cat5e rj45 connector Price TM59A011SXX11 10 Pin RJ45 with 90 Degree Vertical Modular Female PCB Jack cat5e rj45 connector Price TM59A011SXX11 10 Pin RJ45 with 90 Degree Vertical Modular Female PCB Jack cat5e rj45 connector Price TM59A011SXX11 10 Pin RJ45 with 90 Degree Vertical Modular Female PCB Jack cat5e rj45 connector Price TM59A011SXX11
Contact Now

10 Pin RJ45 with 90 Degree Vertical Modular Female PCB Jack cat5e rj45 connector Price TM59A011SXX11

Minimum Order Quantity : 1/500/1000/2000 pcs Price : Supportive
Packaging Details : 100pcs/tray,5000pcs/carton Delivery Time : 15Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM59A011SXX11

Detail Information
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
Minimal Order: 1PCS Package: 100pcs/tray,5000pcs/carton
Keywords: 10 Pin Rj45 Connector/rj45 Female Connector/rj45 Jack/rj45 Socket
High Light:

10 pin ethernet connector

,

cat5e rj45 connector

Product Description

10 Pin RJ45 with 90 Degree Vertical Modular Female PCB Jack cat5e rj45 connector Price TM59A011SXX11



Materials:

Housing : PBT,UL94V-0 ( RoHS )
Contact Finish: φ0.46 mm Phosphor Bronze gold plating Fu” (Optional) over nickel( RoHS )
Shielding Shell: No
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Product Structure:
1 x 1 Port / Single Port / One Port
Connector Length: 20.6 mm
Connector Width: 15.30 mm
Connector Height: 13.30 mm
Termimal Solder Pin Length: 3.20 mm
10P10C ( 10 positions 10 contacts )
90°Orientation
Without LED, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required



RJ45 Without Transformer (TM59A011SXX11) Attributes:

Model: TM59A011SXX11
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 10
Terminals per Port: 10
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 100pcs/tray,5000pcs/carton
Delivery Time: 20 Days
Supply Ability:

5KK/year



RJ45 Female Connector () Mechnical Drawing:

10 Pin RJ45 with 90 Degree Vertical Modular Female PCB Jack cat5e rj45 connector Price TM59A011SXX11 0

10 Pin RJ45 with 90 Degree Vertical Modular Female PCB Jack cat5e rj45 connector Price TM59A011SXX11 110 Pin RJ45 with 90 Degree Vertical Modular Female PCB Jack cat5e rj45 connector Price TM59A011SXX11 210 Pin RJ45 with 90 Degree Vertical Modular Female PCB Jack cat5e rj45 connector Price TM59A011SXX11 310 Pin RJ45 with 90 Degree Vertical Modular Female PCB Jack cat5e rj45 connector Price TM59A011SXX11 410 Pin RJ45 with 90 Degree Vertical Modular Female PCB Jack cat5e rj45 connector Price TM59A011SXX11 5
