Factory supply good quality rj45 10 Pin connector with black Top Entry Thru-Hole

Product Description

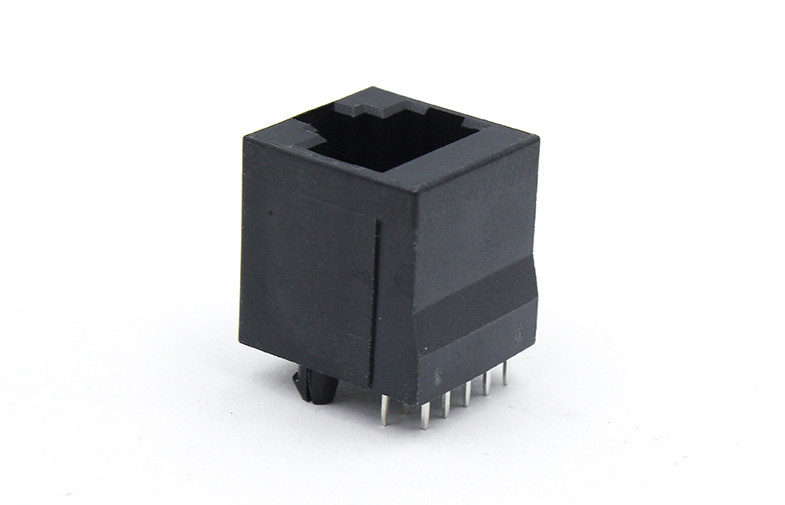

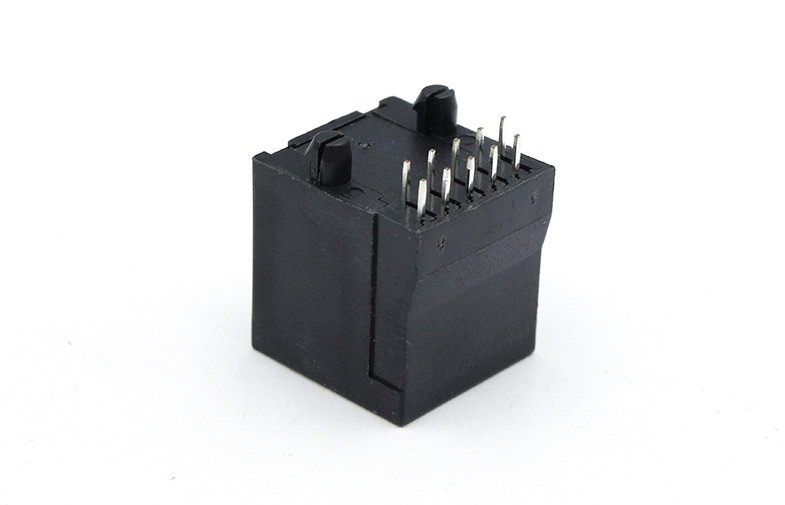

Factory supply good quality rj45 10 Pin connector with black Top Entry Thru-Hole

TM52D011SXX42 is Top Entry 10 Pin rj45 Connector Top Entry Thru-Hole without shield.with Locating Pegs,spacing:11.43 mm.Length X Width X Height:15.26 X 16.56 X 16.29 mm.

Alias:RJ48/RJ50 Connector

Materials:

Housing : PBT,UL94V-0 ( RoHS )
Contact Finish: T=0.35mm Phosphor Bronze,CONTACT AREA-SELECTIVE GOLD PLATING 6u”,TAILS PLATING TIN OVER NICKEL( RoHS )
Shielding Shell: without
All materials mates with modulat plug conforming to FCC part 68. subpart F.

Product Structure:

RJ45 Jack
1 x 1 Port / Single Port / One Port
Connector Length: 16.29 mm
Connector Width: 15.26 mm
Connector Height: 15.78 mm
Termimal Solder Pin Length: 3.2 mm
10P10C ( 10 positions 10 contacts )
180°Orientation
Without LED, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required

RJ45 Female Connector (TM52D011SXX42) Mechnical Drawing:
