rj45 10 pin connector Free sample 180 Degree Shield Socket Network Connector TM52D011EXX41
rj45 10 pin connector Free sample 180 Degree Shield Socket Network Connector TM52D011EXX41 rj45 10 pin connector Free sample 180 Degree Shield Socket Network Connector TM52D011EXX41
Contact Now

rj45 10 pin connector Free sample 180 Degree Shield Socket Network Connector TM52D011EXX41

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 90pcs/tray,2340pcs/carton Delivery Time : 20Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM52D011EXX41

Detail Information
Jack Type: RJ45 Alias: RJ48/RJ50 JACK
PCB Mount Angle: 180° Angle PCB Mount Type: Thru-Hole
Gold Plating: Customization，Start From 3U Number Of Positions: 10
Terminals Per Port: 10 LED Option: No
Shielded EMI Tabs: No Voltage Rating: 125 V
Current Rating: 1.5 A Insulation Resistance: 500 MΩ MIN @ 500V DC
Contact Resistance: 30mΩ Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN Minimal Order: 500PCS
Package: 90pcs/tray,2340pcs/carton
High Light:

cat5e rj45 connector

,

rj45 network jack

Product Description

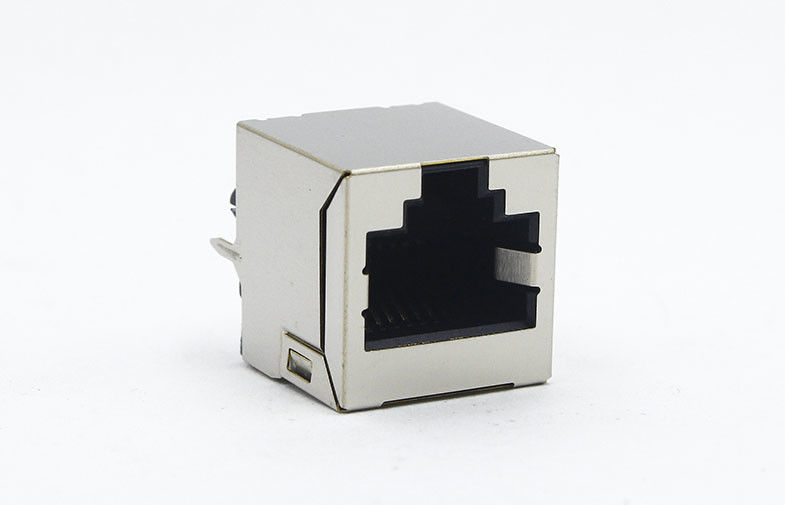

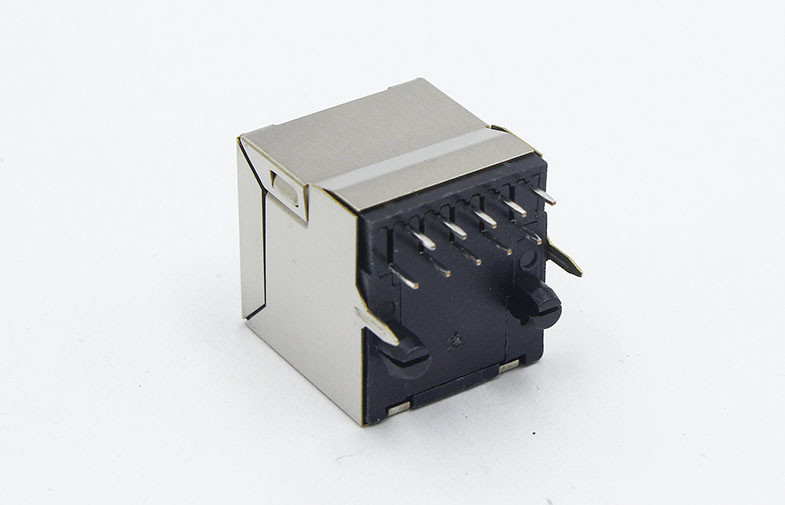

rj45 10 pin connector Free sample 180 Degree Shield Socket Network Connector TM52D011EXX41



TM52D011EXX41 is Top Entry 10 Pin rj45 Connector with shield Top Entry Thru-Hole .with Locating Pegs,spacing:11.43 mm.Length X Width X Height:15.86 X 17.16 X 16.59 mm.

Alias:RJ48/RJ50 Connector



Materials:
Housing : PBT,UL94V-0 ( RoHS )
Contact Finish: T=0.35mm Phosphor Bronze,CONTACT AREA-SELECTIVE GOLD PLATING 6u”,TAILS PLATING TIN OVER NICKEL( RoHS )
Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all


Product Structure:

RJ45 Jack
1 x 1 Port / Single Port / One Port
Latch Down
Connector Length: 16.59 mm
Connector Width: 15.86 mm
Connector Height: 16.38 mm
Termimal Solder Pin Length: 3.2 mm
10P10C ( 10 positions 10 contacts )
180°Orientation
Without LED, let know the connection status
We Support Custom service as required



RJ45 Female Connector (TM52D011EXX41) Mechnical Drawing:

rj45 10 pin connector Free sample 180 Degree Shield Socket Network Connector TM52D011EXX41 0rj45 10 pin connector Free sample 180 Degree Shield Socket Network Connector TM52D011EXX41 110 Pin rj45 Connector with shieldrj45 10 pin connector Free sample 180 Degree Shield Socket Network Connector TM52D011EXX41 3rj45 10 pin connector Free sample 180 Degree Shield Socket Network Connector TM52D011EXX41 4rj45 10 pin connector Free sample 180 Degree Shield Socket Network Connector TM52D011EXX41 5
