Home Products10 Pin RJ45 Connectortop quality PCB modular jack ethernet rj45 10 pin rj45 connector TM56A011EXX11

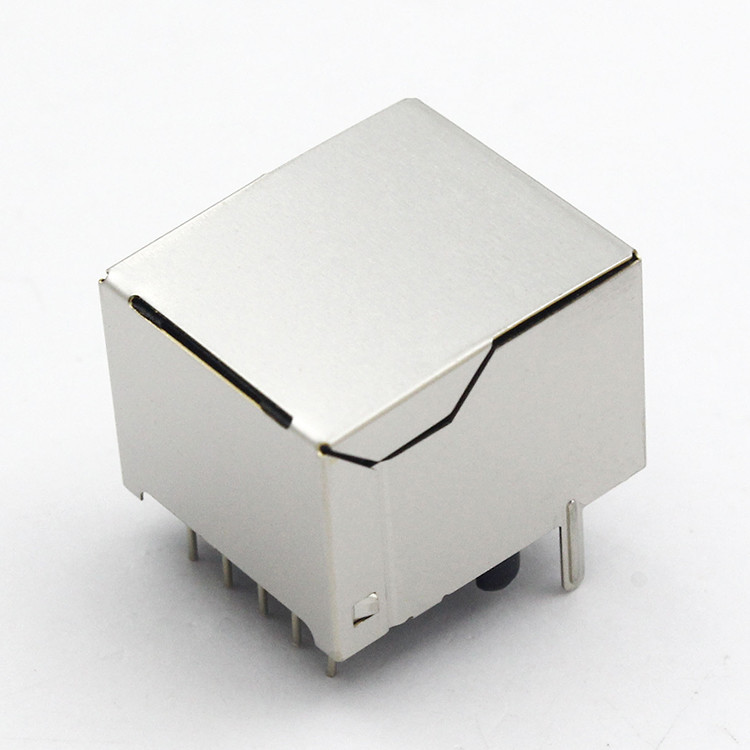

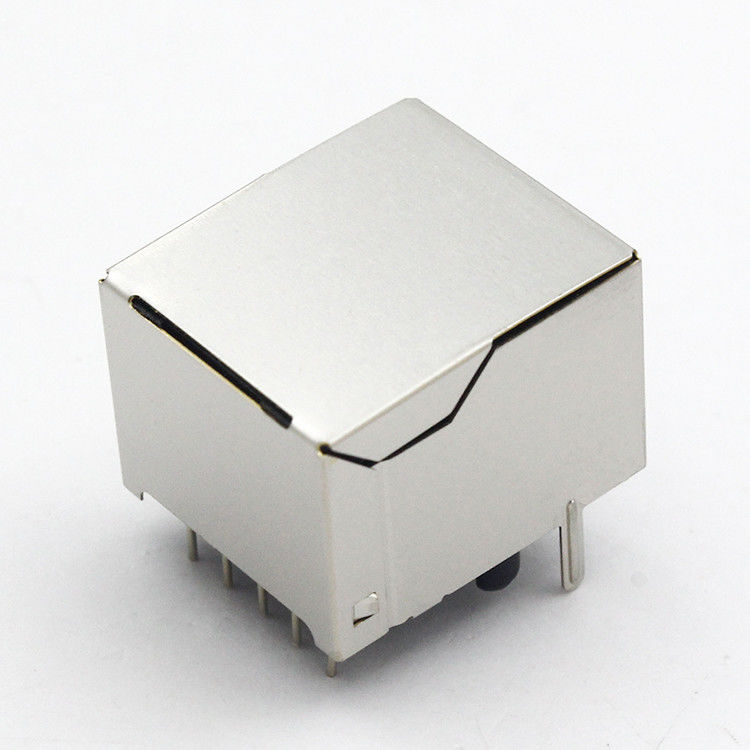

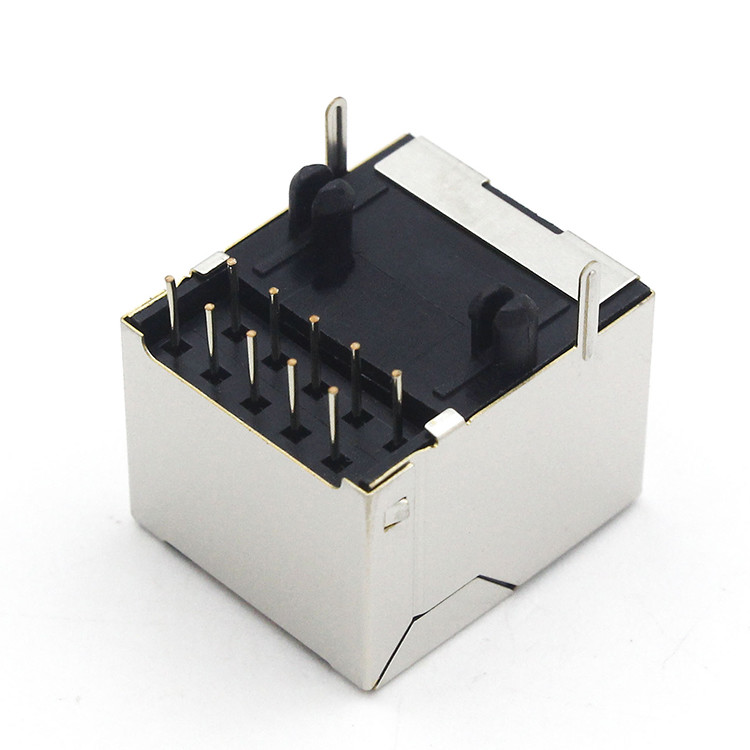

top quality PCB modular jack ethernet rj45 10 pin rj45 connector TM56A011EXX11
top quality PCB modular jack ethernet rj45 10 pin rj45 connector TM56A011EXX11 top quality PCB modular jack ethernet rj45 10 pin rj45 connector TM56A011EXX11
Contact Now

top quality PCB modular jack ethernet rj45 10 pin rj45 connector TM56A011EXX11

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 100pcs/tray,5000pcs/carton Delivery Time : 20Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM56A011EXX11

Detail Information
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
Minimal Order: 500PCS Package: 100pcs/tray,5000pcs/carton
Keywords: Rj45 Connector/rj45 Female Connector/rj45 Jack/rj45 Socket
High Light:

cat5e rj45 connector

,

rj45 network jack

Product Description

top quality PCB modular jack ethernet rj45 10 pin rj45 connector TM56A011EXX11​



Materials:



Housing : PBT,UL94V-0 ( RoHS )
Contact Finish: φ0.46 mm Phosphor Bronze gold plating Fu” (Optional) over nickel( RoHS )
Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Product Structure:


RJ45 Jack
1 x 1 Port / Single Port / One Port
Latch Down
Connector Length: 18.15 mm
Connector Width: 15.65 mm
Connector Height: 13.20 mm
Termimal Solder Pin Length: 2.8 mm
10P10C ( 10 positions 10 contacts )
90°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required



RJ45 Without Transformer (TM56A011EXX11) Attributes:



Model: TM56A011EXX11
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 10
Terminals per Port: 10
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 100pcs/tray,5000pcs/carton
Delivery Time: 20 Days
Supply Ability: 5KK/year



RJ45 Female Connector (TM56A011EXX11) Mechnical Drawing:

top quality PCB modular jack ethernet rj45 10 pin rj45 connector TM56A011EXX11 0

top quality PCB modular jack ethernet rj45 10 pin rj45 connector TM56A011EXX11 1top quality PCB modular jack ethernet rj45 10 pin rj45 connector TM56A011EXX11 2top quality PCB modular jack ethernet rj45 10 pin rj45 connector TM56A011EXX11 3top quality PCB modular jack ethernet rj45 10 pin rj45 connector TM56A011EXX11 4
