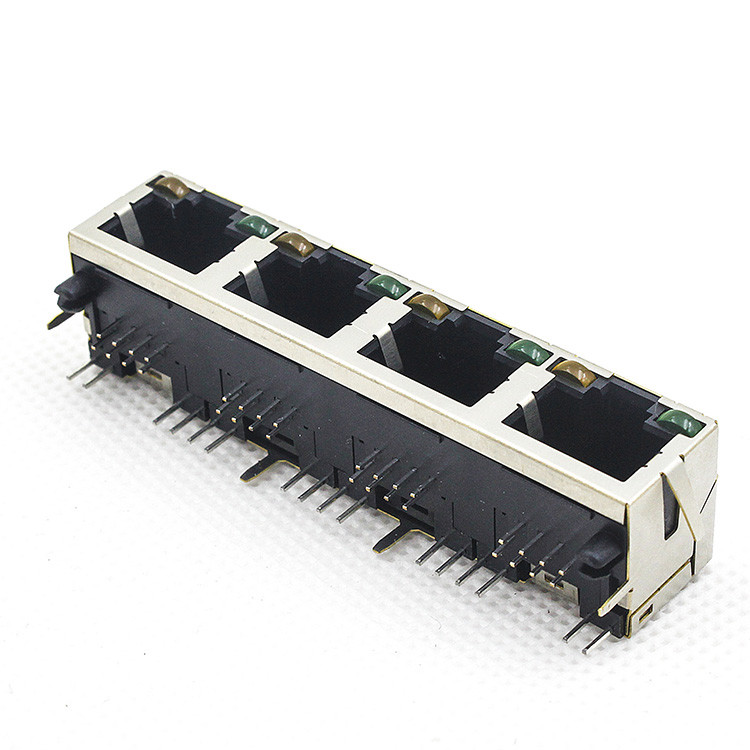

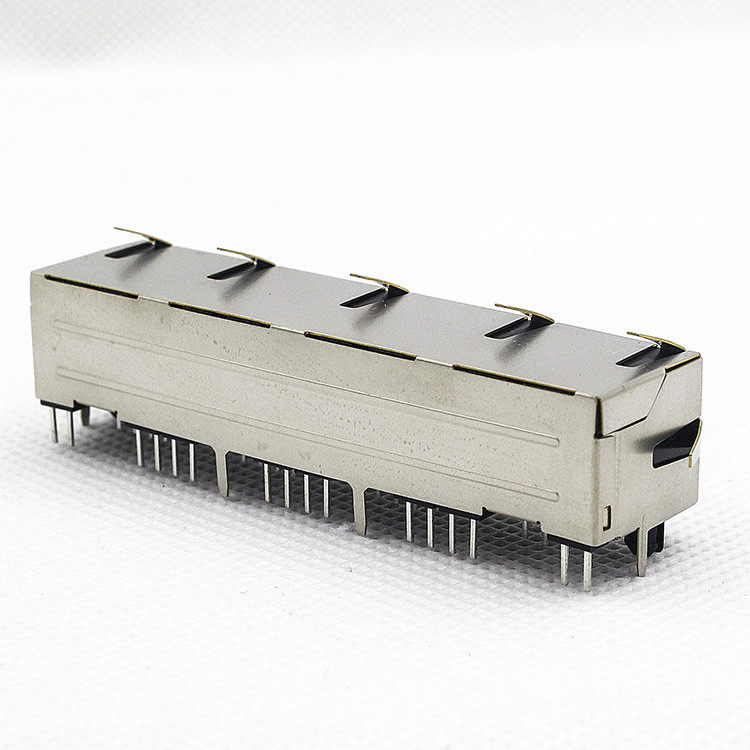

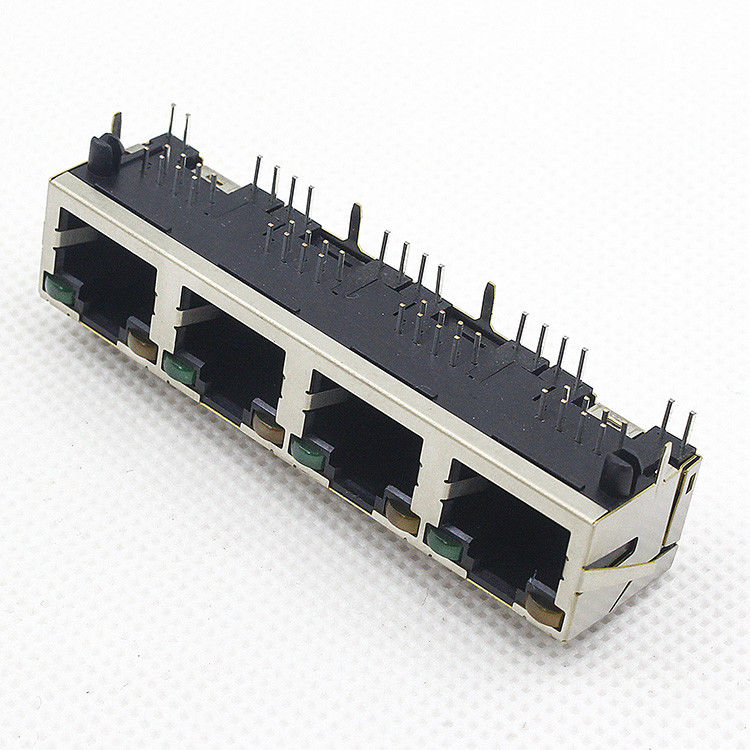

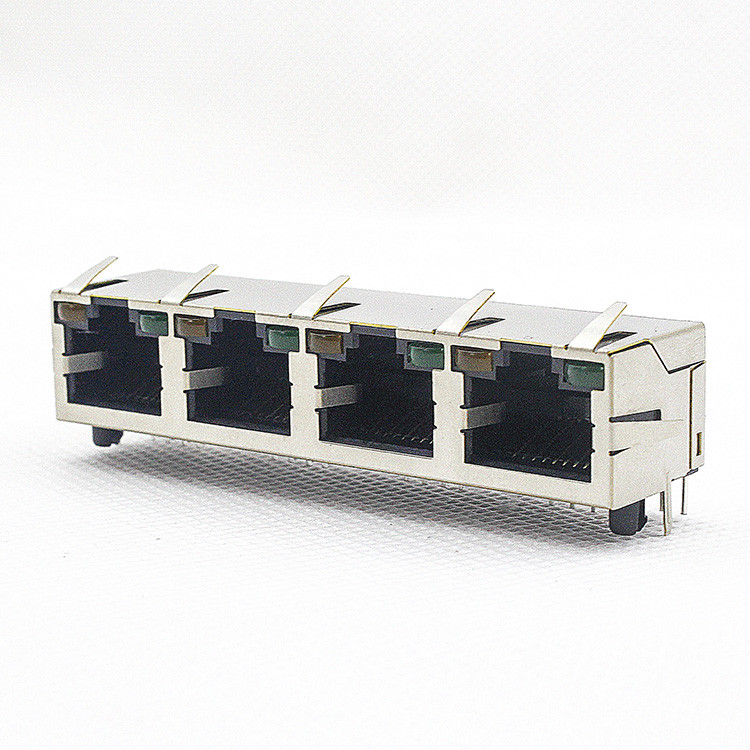

1X4 Port RJ45 PCB Connector 10 100 Base / Rj45 8p8c Connector TM5JA814T2112
1X4 Port RJ45 PCB Connector 10 100 Base / Rj45 8p8c Connector TM5JA814T2112 1X4 Port RJ45 PCB Connector 10 100 Base / Rj45 8p8c Connector TM5JA814T2112 1X4 Port RJ45 PCB Connector 10 100 Base / Rj45 8p8c Connector TM5JA814T2112 1X4 Port RJ45 PCB Connector 10 100 Base / Rj45 8p8c Connector TM5JA814T2112
Contact Now

1X4 Port RJ45 PCB Connector 10 100 Base / Rj45 8p8c Connector TM5JA814T2112

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 30pcs/tray,900pcs/carton Delivery Time : 20Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM5JA814T2112

Detail Information
Product Type : RJ45 Modular Connector Jack Type: RJ45
Number Of Positions: 8 Terminals Per Port: 8
LED Option: LEFT YE,RIGHT GN Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
Minimal Order: 500PCS Package: 30pcs/tray,900pcs/carton
Keywords: 8 Pins Rj45 Connector/rj45 Female Connector/rj45 Jack/rj45 Socket
High Light:

rj45 plug pcb mount

,

pcb mount rj45 connector

,

1X4 Port 8P8C RJ45 PCB Connector

Product Description

1X4 Port 10/100 Base 8 positions 8 contacts female Connector with Led Y/G,TM5JA814T2112



Materials:



Housing:PBT,UL94V-0 ( RoHS )
Contact Finish: φ0.46 mm Phosphor Bronze gold plating Fu”(Optional) over nickel
Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Product Structure:


RJ11 Modular Jack
1 x 4 Port / Single Port / One Port
Connector Length: 15.75 mm
Connector Width: 63.75 mm
Connector Height: 13.1 mm
Termimal Solder Pin Length: 2.75 mm
8P8C ( 8 positions 8 contacts )
90°Orientation
With LED left yellow right green, let know the connection status
With Shield,can be customized as required
We Support Custom service as required


RJ11 Without Transformer (TM5JA814T2112) Attributes:



Model: TM5JA814T2112
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: LEFT YELLOW,RIGHT GREEN
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 30pcs/tray,900pcs/carton
Delivery Time: 25 Days
Supply Ability: 5KK/year



RJ45 Female Connector (TM5JA814T2112) Mechnical Drawing:

1X4 Port RJ45 PCB Connector 10 100 Base / Rj45 8p8c Connector TM5JA814T2112 01X4 Port RJ45 PCB Connector 10 100 Base / Rj45 8p8c Connector TM5JA814T2112 11X4 Port RJ45 PCB Connector 10 100 Base / Rj45 8p8c Connector TM5JA814T2112 21X4 Port RJ45 PCB Connector 10 100 Base / Rj45 8p8c Connector TM5JA814T2112 31X4 Port RJ45 PCB Connector 10 100 Base / Rj45 8p8c Connector TM5JA814T2112 41X4 Port RJ45 PCB Connector 10 100 Base / Rj45 8p8c Connector TM5JA814T2112 5
