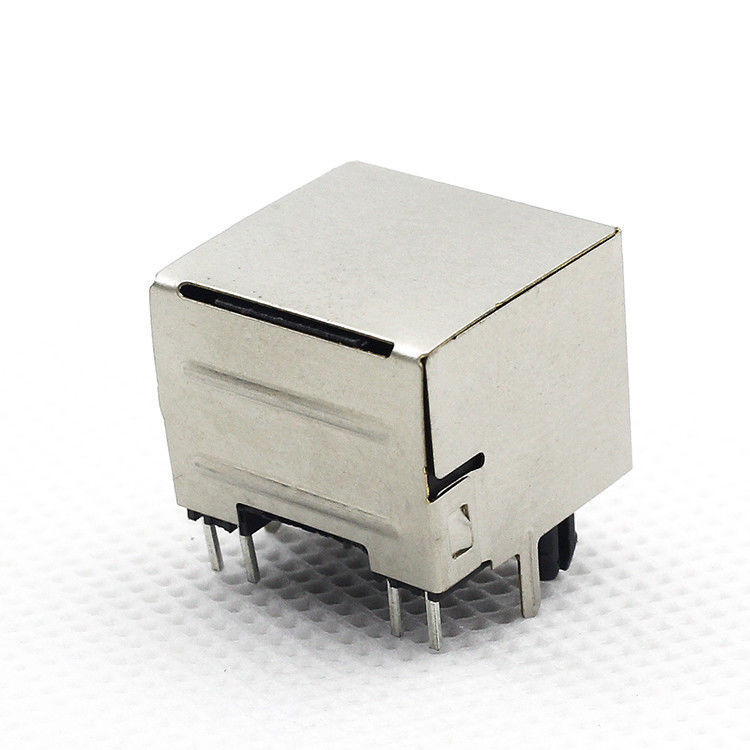

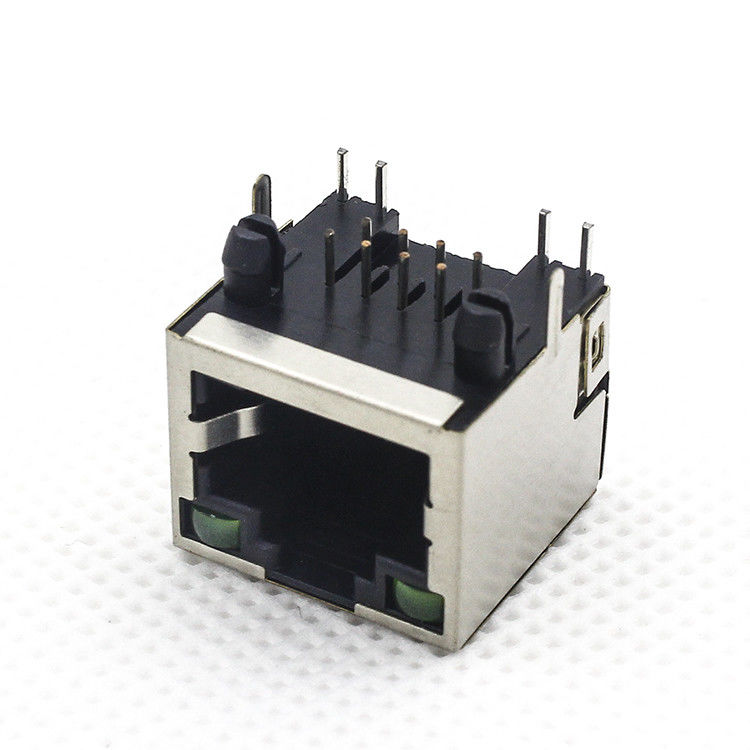

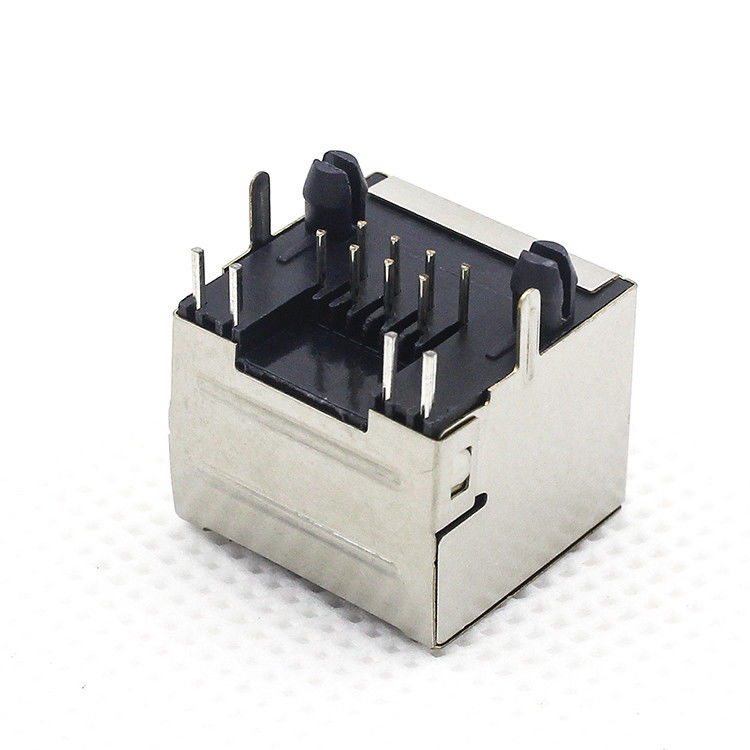

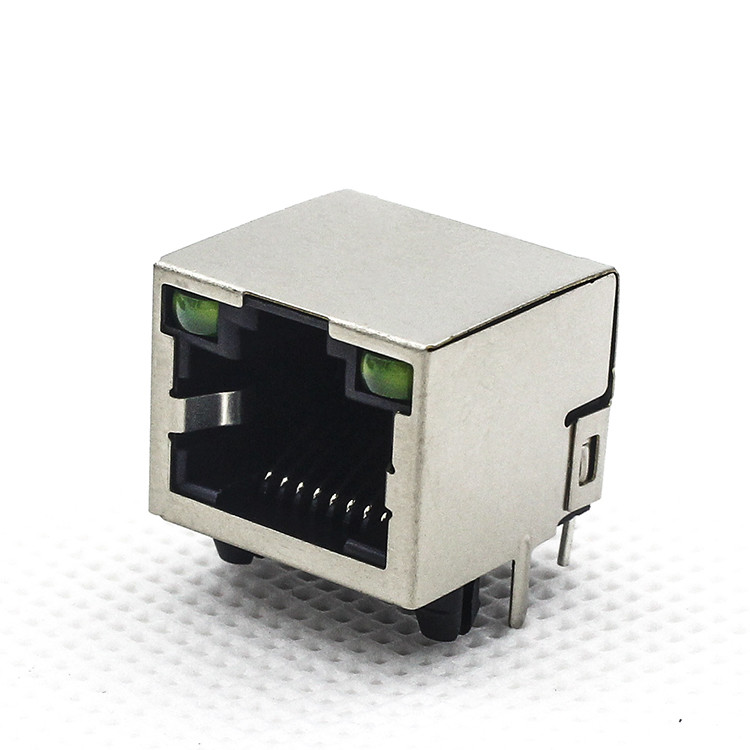

8 Pins 8 Contacts RJ45 PCB Connector With Shied And Leds Tab-up Side Entry TM5JA811EX311
8 Pins 8 Contacts RJ45 PCB Connector With Shied And Leds Tab-up Side Entry TM5JA811EX311 8 Pins 8 Contacts RJ45 PCB Connector With Shied And Leds Tab-up Side Entry TM5JA811EX311 8 Pins 8 Contacts RJ45 PCB Connector With Shied And Leds Tab-up Side Entry TM5JA811EX311 8 Pins 8 Contacts RJ45 PCB Connector With Shied And Leds Tab-up Side Entry TM5JA811EX311
Contact Now

8 Pins 8 Contacts RJ45 PCB Connector With Shied And Leds Tab-up Side Entry TM5JA811EX311

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 100pcs/tray Delivery Time : 15 Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM5JA811EX311

Detail Information
Product Type : RJ45 Modular Connector Jack Type: RJ45
Number Of Positions: 8 Terminals Per Port: 8
PCB Mount Angle: Side Entry PCB Mount Type: Thru-Hole
EMI: No Latch Type: Tab-up
Gold Plating: Customization，Start From 3U LED Option: LEFT GN,RIGHT GN
Shielded EMI Tabs: No Voltage Rating: 125 V
Current Rating: 1.5 A Contact Resistance: 30mΩ
Insulation Resistance: 500 MΩ MIN @ 500V DC Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN Minimal Order: 500pcs
Package: 100pcs/tray
High Light:

rj45 pcb mount jack

,

rj45 plug pcb mount

,

8 Pins 8 Contacts RJ45 PCB Connector

Product Description

8 Pins 8 Contacts RJ45 PCB Connector With Shiled And Leds Tab-up Side Entry TM5JA811EX311

 TM5JA811EX311 is RJ45 PCB Connector With Shiled,Tab-up ,Side Entry,8P8C ,LEDS left green/right green,without EMI. Selective gold plating thickness start from 3u; Length x Width x Height: 15.6 x 16.30 x 13.10 mm

Materials:

Housing : PBT,UL94V-0 ( RoHS )
Contact Finish: T=0.35mm Phosphor Bronze,CONTACT AREA-SELECTIVE GOLD PLATING 6u”,TAILS PLATING TIN OVER NICKEL( RoHS )
Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Product Structure:
RJ45 Jack
1 x 1 Port / Single Port / One Port
Latch Down
Connector Length: 17.65 mm
Connector Width: 16.45 mm
Connector Height: 12.70 mm
Termimal Solder Pin Length: 2.5 mm
8P8C ( 8 positions 8 contacts )
90°Orientation
With LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required



8 Pins 8 Contacts RJ45 PCB Connector With Shied And Leds Tab-up Side Entry TM5JA811EX311 0



Drawing:




8 Pins 8 Contacts RJ45 PCB Connector With Shied And Leds Tab-up Side Entry TM5JA811EX311 18 Pins 8 Contacts RJ45 PCB Connector With Shied And Leds Tab-up Side Entry TM5JA811EX311 28 Pins 8 Contacts RJ45 PCB Connector With Shied And Leds Tab-up Side Entry TM5JA811EX311 38 Pins 8 Contacts RJ45 PCB Connector With Shied And Leds Tab-up Side Entry TM5JA811EX311 4
