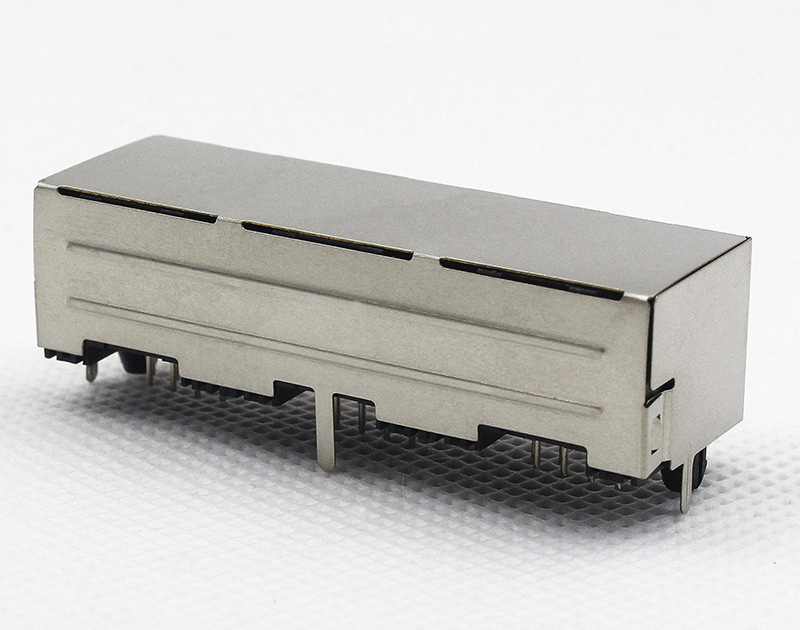

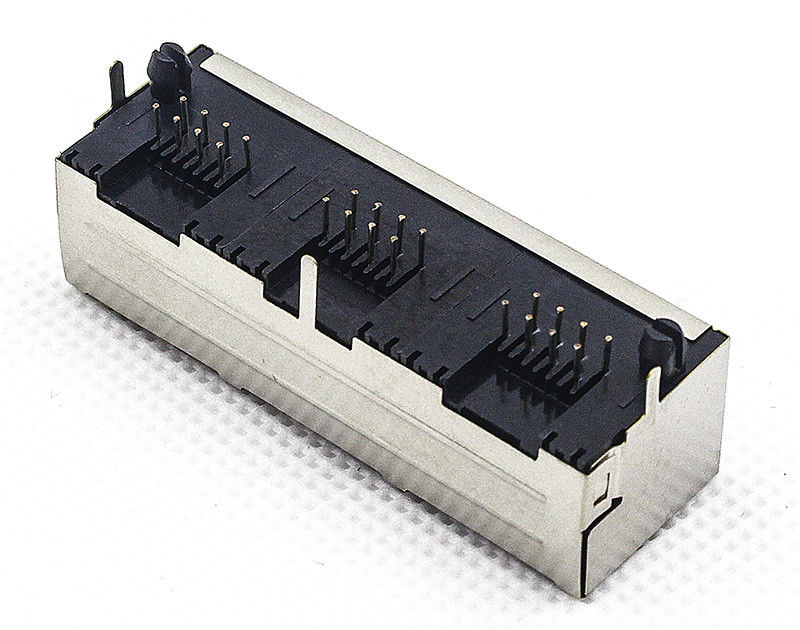

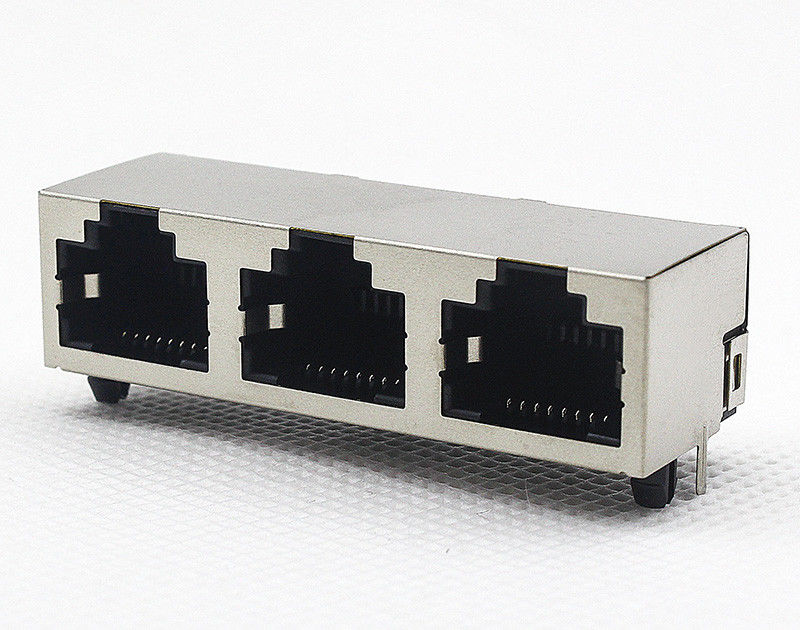

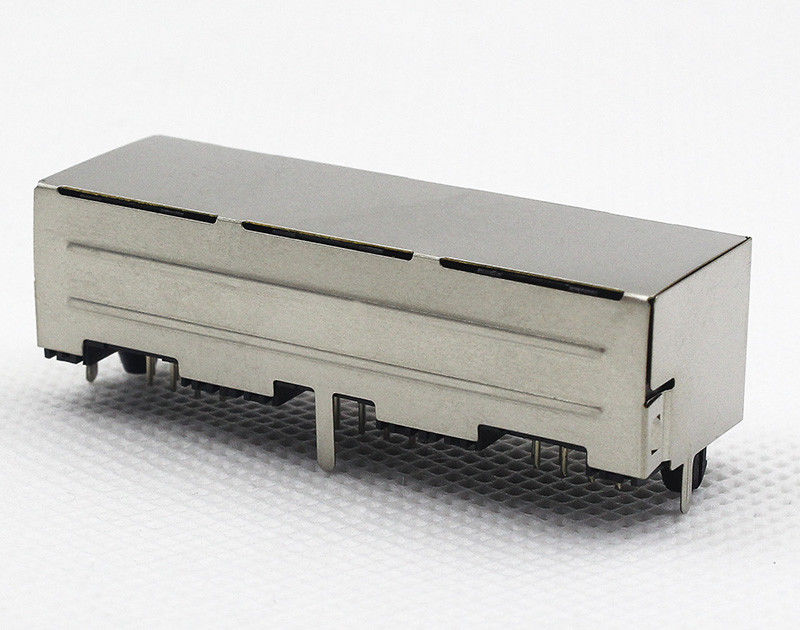

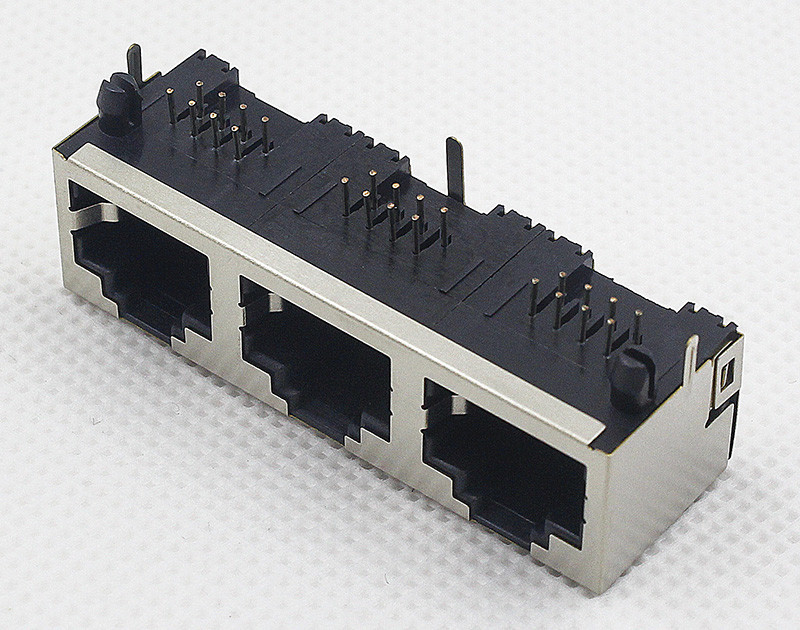

1X3 Multi-Port RJ45 Jack Shield Iron Pegs 90° Angle Tab-up No Leds EMI TM5JA813EXX11
1X3 Multi-Port RJ45 Jack Shield Iron Pegs 90° Angle Tab-up No Leds EMI TM5JA813EXX11 1X3 Multi-Port RJ45 Jack Shield Iron Pegs 90° Angle Tab-up No Leds EMI TM5JA813EXX11 1X3 Multi-Port RJ45 Jack Shield Iron Pegs 90° Angle Tab-up No Leds EMI TM5JA813EXX11 1X3 Multi-Port RJ45 Jack Shield Iron Pegs 90° Angle Tab-up No Leds EMI TM5JA813EXX11
Contact Now

1X3 Multi-Port RJ45 Jack Shield Iron Pegs 90° Angle Tab-up No Leds EMI TM5JA813EXX11

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 40pcs/tray Delivery Time : 15 Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM5JA813EXX11

Detail Information
Product Type : RJ45 Modular Connector Jack Type: RJ45
PCB Mount Angle: Side Entry/90° Angle PCB Mount Type: Thru-Hole
Latch Type: Tab-up Gold Plating: Customization，Start From 3U
Number Of Positions: 8 Terminals Per Port: 8
LED Option: No EMI: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
Minimal Order: 500pcs Package: 40pcs/tray
High Light:

rj45 pcb mount jack

,

pcb mount rj45 connector

,

1X3 Multi Port RJ45 Jack

Product Description

1X3 Multi-Port RJ45 Jack Shield Iron Pegs 90° Angle Tab-up No Leds EMI TM5JA813EXX11​



TM5JA813EXX11 is a Multi-Port RJ45 Jack with Shield .90° Angle. Tab-up.Without LEDS and EMI.Iron Pegs,spacing:48mm. Locating Pegs,spacing:44.3mm. Length x Width x Height:15.75 x 48 x 13.1 mm.



Materials:

Housing : PBT,UL94V-0 ( RoHS )
Contact Finish: OD=0.46mm Phosphor Bronze,CONTACT GOLD PLATING Fu” OVER NICKEL( RoHS )
Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Product Structure:
RJ45 Jack
1 x 3 Port / Single Port / Three Port
Latch Up
Connector Length: 15.75 mm
Connector Width: 48.0 mm
Connector Height: 13.10 mm
Termimal Solder Pin Length: 2.75 mm
8P8C ( 8 positions 8 contacts )
90°Orientation
With LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required




Drawing:

1X3 Multi-Port RJ45 Jack Shield Iron Pegs 90° Angle Tab-up No Leds EMI TM5JA813EXX11 0



1X3 Multi-Port RJ45 Jack Shield Iron Pegs 90° Angle Tab-up No Leds EMI TM5JA813EXX11 11X3 Multi-Port RJ45 Jack Shield Iron Pegs 90° Angle Tab-up No Leds EMI TM5JA813EXX11 21X3 Multi-Port RJ45 Jack Shield Iron Pegs 90° Angle Tab-up No Leds EMI TM5JA813EXX11 31X3 Multi-Port RJ45 Jack Shield Iron Pegs 90° Angle Tab-up No Leds EMI TM5JA813EXX11 4
