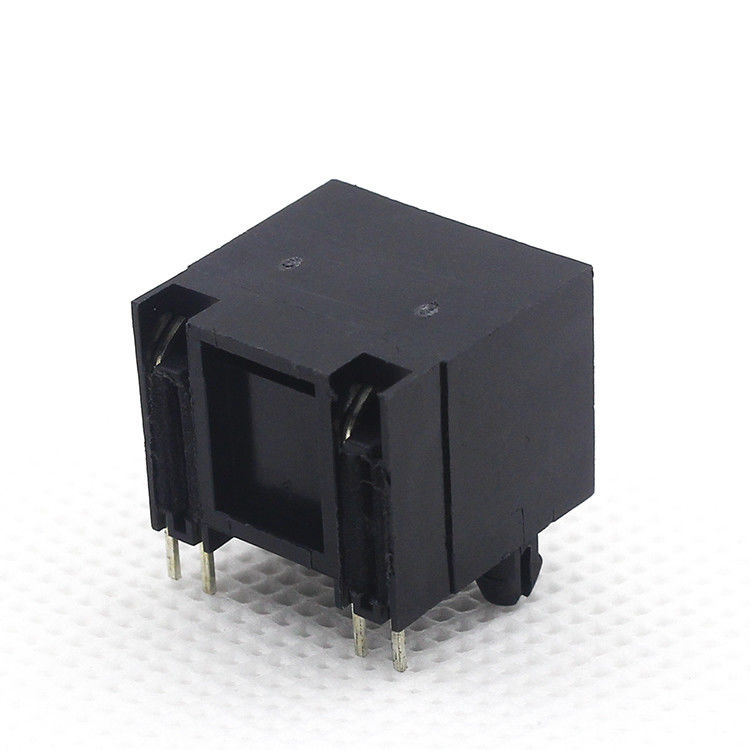

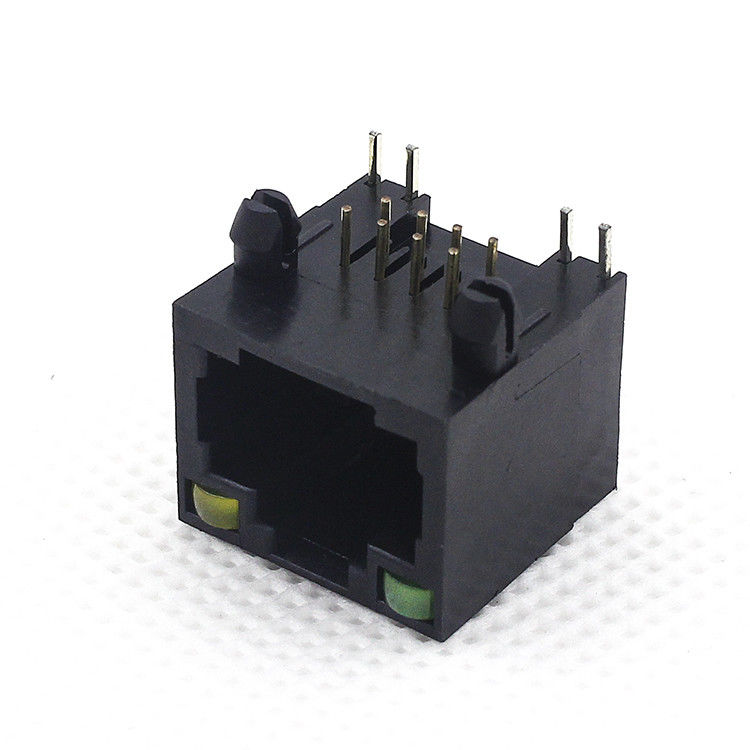

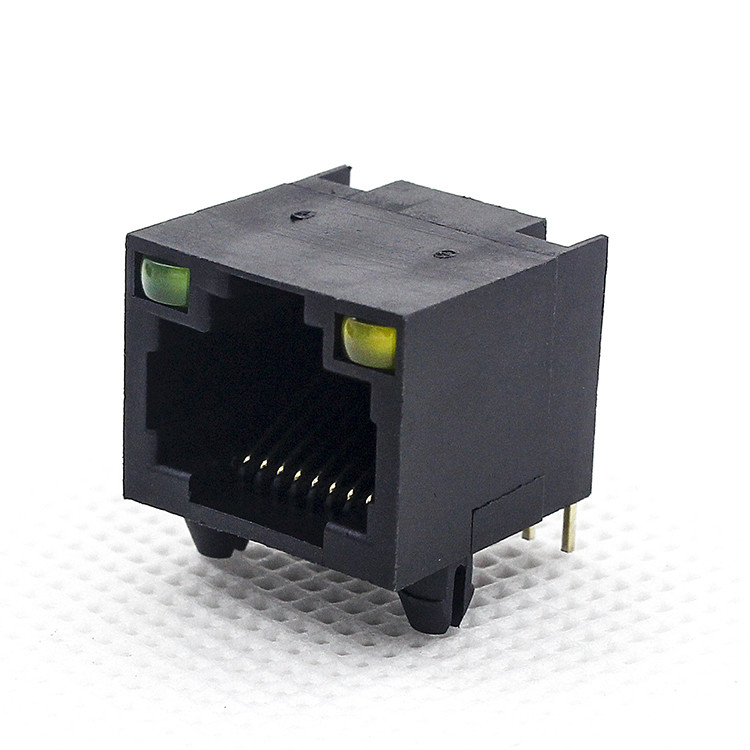

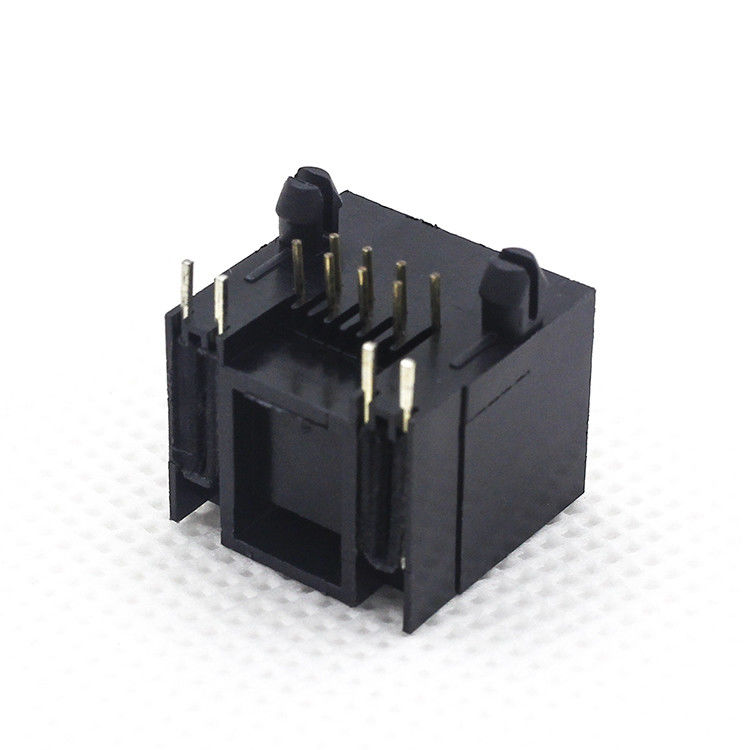

Single Port RJ45 PCB Connector / Wire To Board Connector G Y YTM5JA811SX112
Single Port RJ45 PCB Connector / Wire To Board Connector G Y YTM5JA811SX112 Single Port RJ45 PCB Connector / Wire To Board Connector G Y YTM5JA811SX112 Single Port RJ45 PCB Connector / Wire To Board Connector G Y YTM5JA811SX112 Single Port RJ45 PCB Connector / Wire To Board Connector G Y YTM5JA811SX112
Contact Now

Single Port RJ45 PCB Connector / Wire To Board Connector G Y YTM5JA811SX112

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 100pcs/tray Delivery Time : 15 Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM5JA811SX112

Detail Information
Product Type : RJ45 Modular Connector Jack Type: RJ45
Number Of Positions: 8 Terminals Per Port: 8
LED Option: LEFT GN,RIGHT YE Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
Minimal Order: 500pcs Package: 100pcs/tray
High Light:

rj45 plug pcb mount

,

pcb mount rj45 connector

,

RJ45 PCB Wire To Board Connector

Product Description

pbt ul94v-0 Single Port pcb wire connector Without Transformer TM5JA811SX112



Materials:

Housing : PBT,UL94V-0 ( RoHS )
Contact Finish: OD=0.46mm Phosphor Bronze,CONTACT GOLD PLATING Fu” OVER NICKEL( RoHS )
Shielding Shell: NO
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Product Structure:
RJ45 Jack
1 x 1 Port / Single Port / One Port
Latch Up
Connector Length: 15.1 mm
Connector Width: 15.7 mm
Connector Height: 12.6 mm
Termimal Solder Pin Length: 2.75 mm
8P8C ( 8 positions 8 contacts )
90°Orientation
With LED, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required


RJ45 Without Transformer (TM5JA811SX112) Attributes:

Model: TM5JA811SX112
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: LEFT YE,RIGHT GN
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 100pcs/tray
Delivery Time: 20 Days
Supply Ability: 5KK/year



RJ45 Female Connector (TM5JA811SX112) Mechnical Drawing:

Single Port RJ45 PCB Connector / Wire To Board Connector G Y YTM5JA811SX112 0Single Port RJ45 PCB Connector / Wire To Board Connector G Y YTM5JA811SX112 1Single Port RJ45 PCB Connector / Wire To Board Connector G Y YTM5JA811SX112 2Single Port RJ45 PCB Connector / Wire To Board Connector G Y YTM5JA811SX112 3Single Port RJ45 PCB Connector / Wire To Board Connector G Y YTM5JA811SX112 4
