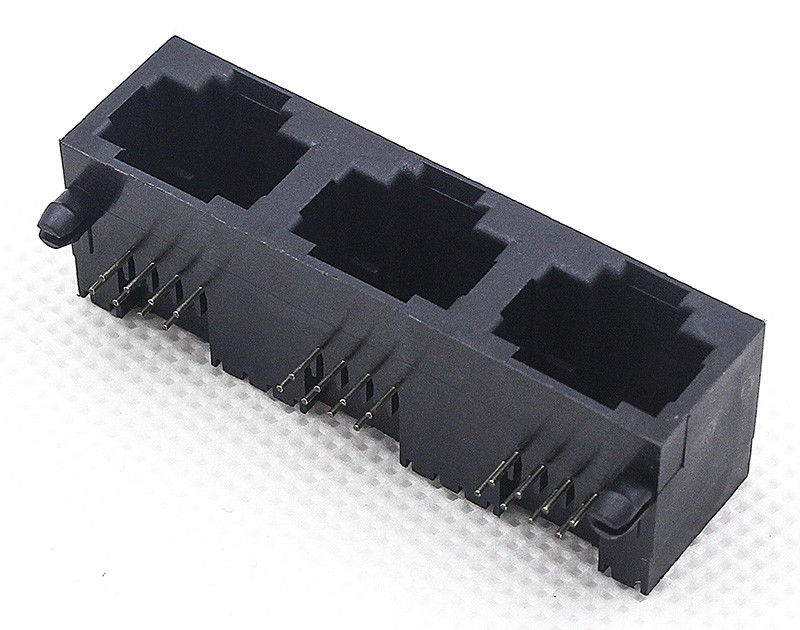

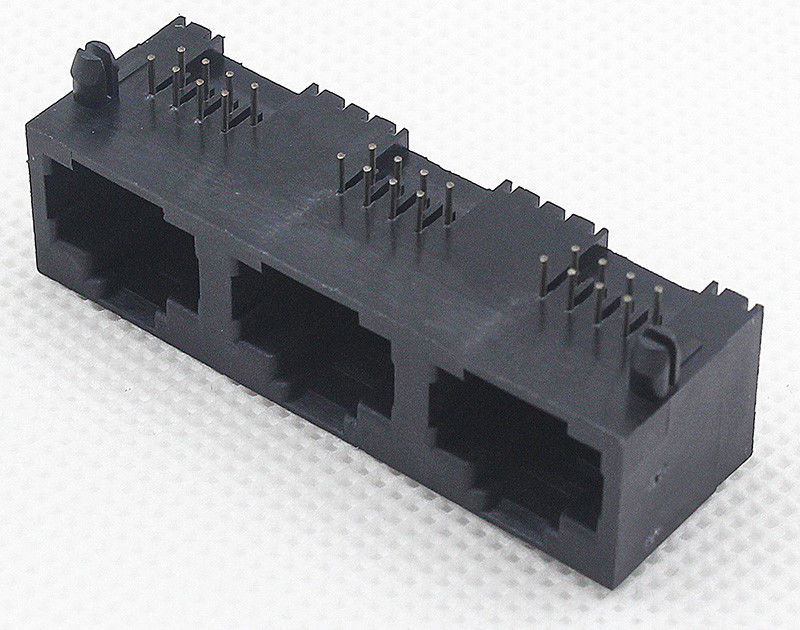

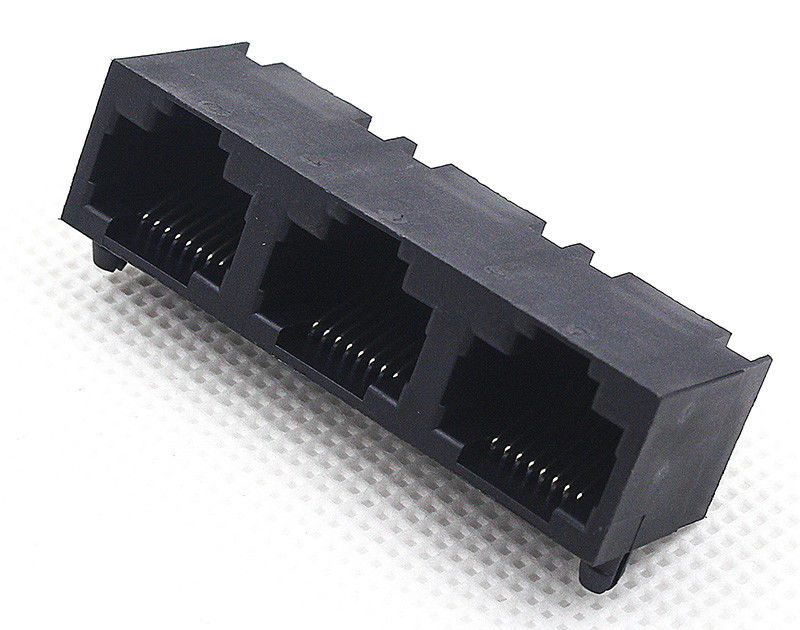

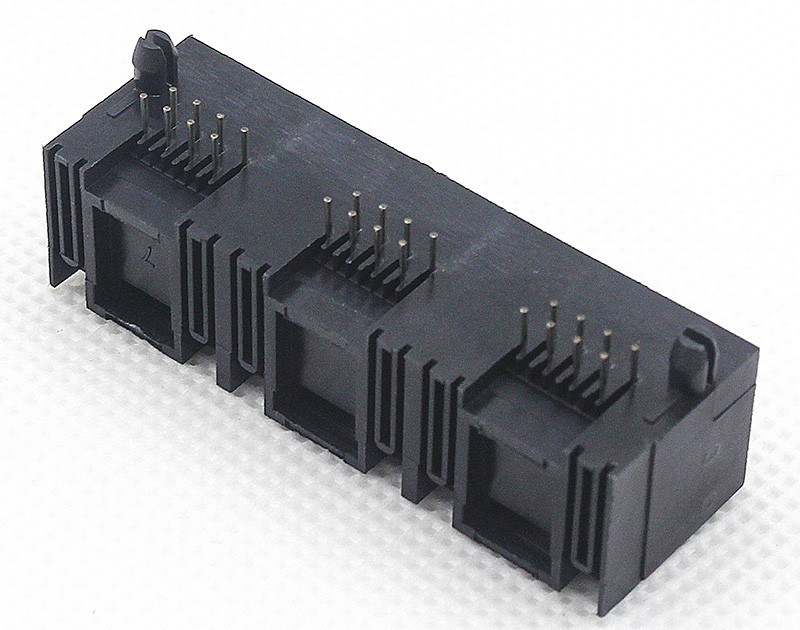

Rj45 Pcb Socket 8 Positions 8 Contacts 1X3 Port Without Magnetic TM5JA813SXX12
Rj45 Pcb Socket 8 Positions 8 Contacts 1X3 Port Without Magnetic TM5JA813SXX12 Rj45 Pcb Socket 8 Positions 8 Contacts 1X3 Port Without Magnetic TM5JA813SXX12 Rj45 Pcb Socket 8 Positions 8 Contacts 1X3 Port Without Magnetic TM5JA813SXX12 Rj45 Pcb Socket 8 Positions 8 Contacts 1X3 Port Without Magnetic TM5JA813SXX12
Contact Now

Rj45 Pcb Socket 8 Positions 8 Contacts 1X3 Port Without Magnetic TM5JA813SXX12

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 30pcs/tray Delivery Time : 15 Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM5JA813SXX12

Detail Information
Product Type : RJ45 Modular Connector Jack Type: RJ45
Number Of Positions: 8 Terminals Per Port: 8
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
Minimal Order: 500pcs Package: 30pcs/tray
Highlight:

rj45 pcb mount jack

,

pcb mount rj45 connector

,

RJ45 PCB Socket Without Magnetic

Product Description

rj45 pcb socket 8 positions 8 contacts 1X3 port Tab Down Without Magnetic TM5JA813SXX12



Materials:

Housing : PBT,UL94V-0 ( RoHS )
Contact Finish: OD=0.46mm Phosphor Bronze,CONTACT GOLD PLATING Fu” OVER NICKEL( RoHS )
Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Product Structure:
RJ45 Jack
1 x 3 Port / Single Port / Three Port
Latch Up
Connector Length: 15.1 mm
Connector Width: 47.2 mm
Connector Height: 12.60 mm
Termimal Solder Pin Length: 2.75 mm
8P8C ( 8 positions 8 contacts )
90°Orientation
Without LED, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required



RJ45 Without Transformer (TM5JA813SXX12) Attributes:

Model: TM5JA813SXX12
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 30pcs/tray
Delivery Time: 20 Days
Supply Ability: 5KK/year



RJ45 Female Connector (TM5JA813SXX12) Mechnical Drawing:

Rj45 Pcb Socket 8 Positions 8 Contacts 1X3 Port Without Magnetic TM5JA813SXX12 0Rj45 Pcb Socket 8 Positions 8 Contacts 1X3 Port Without Magnetic TM5JA813SXX12 1Rj45 Pcb Socket 8 Positions 8 Contacts 1X3 Port Without Magnetic TM5JA813SXX12 2Rj45 Pcb Socket 8 Positions 8 Contacts 1X3 Port Without Magnetic TM5JA813SXX12 3Rj45 Pcb Socket 8 Positions 8 Contacts 1X3 Port Without Magnetic TM5JA813SXX12 4
