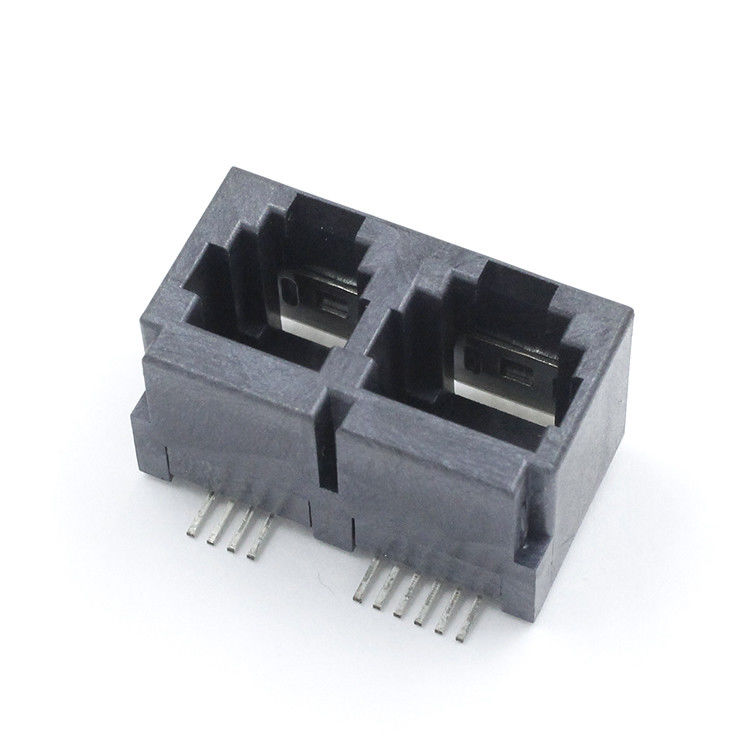

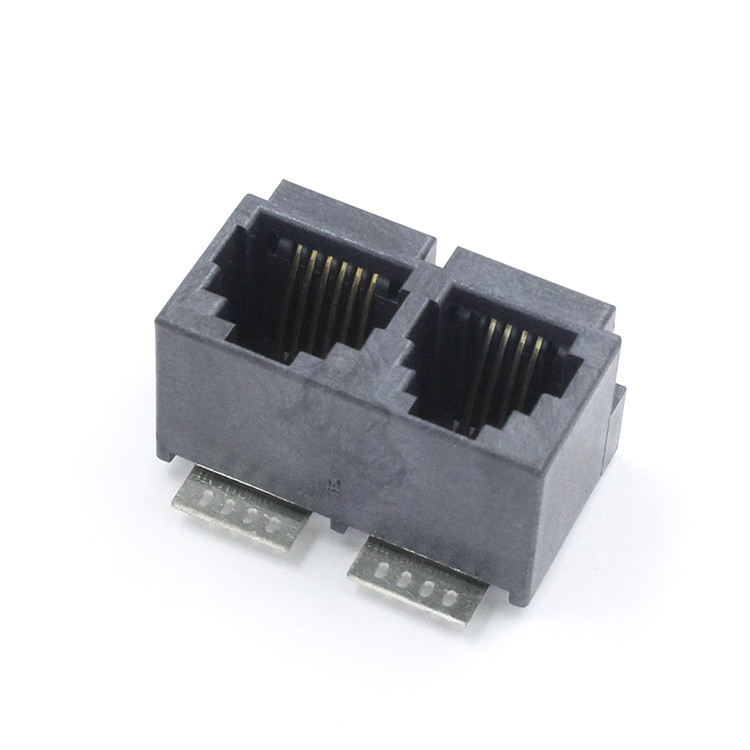

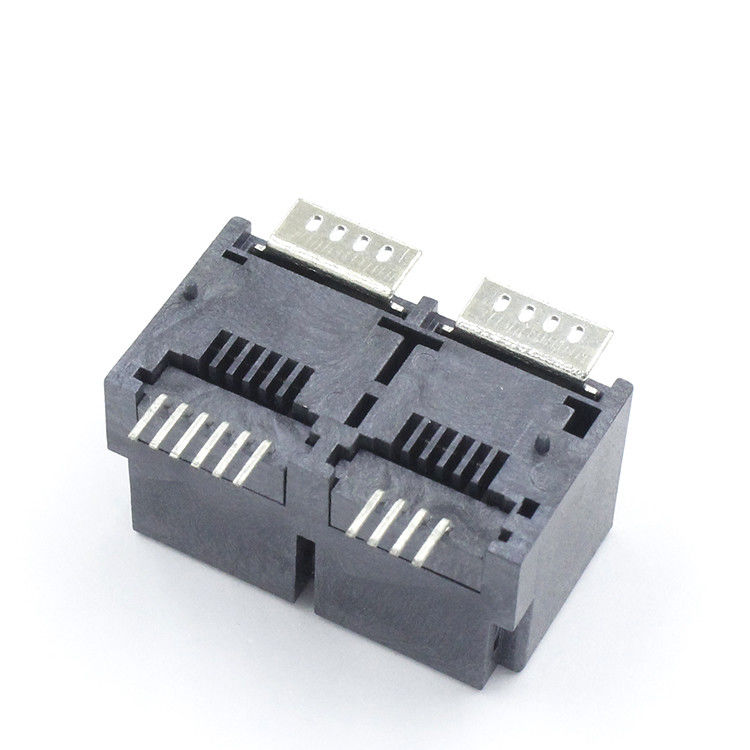

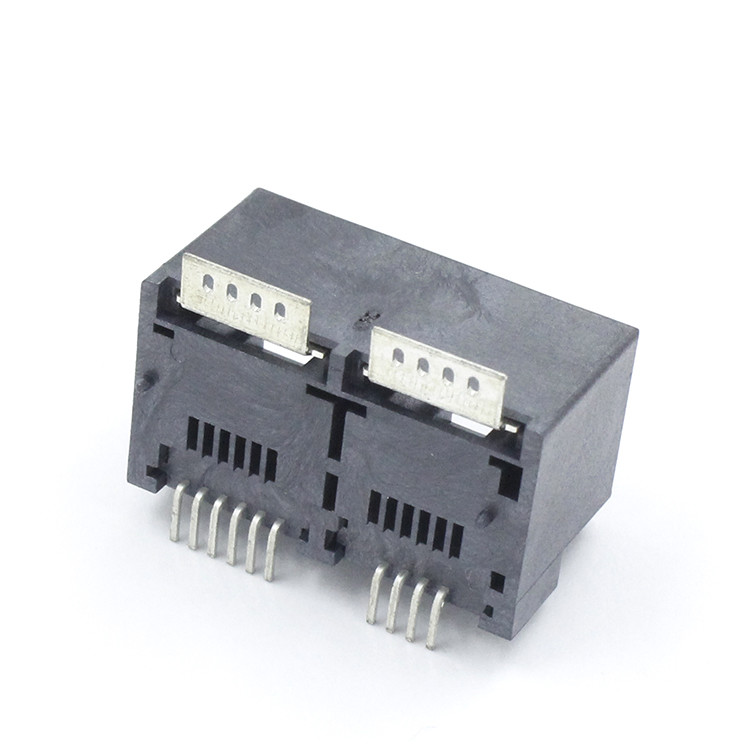

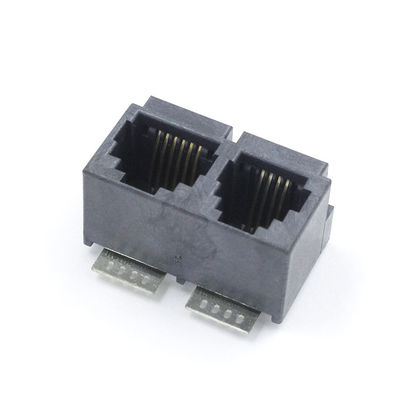

LCP UL94V-0 1X2 SMD Rj11 Pcb Socket Tab UP TM52DSMT6612S 6P + 4P ISO9001
LCP UL94V-0 1X2 SMD Rj11 Pcb Socket Tab UP TM52DSMT6612S 6P + 4P ISO9001 LCP UL94V-0 1X2 SMD Rj11 Pcb Socket Tab UP TM52DSMT6612S 6P + 4P ISO9001 LCP UL94V-0 1X2 SMD Rj11 Pcb Socket Tab UP TM52DSMT6612S 6P + 4P ISO9001 LCP UL94V-0 1X2 SMD Rj11 Pcb Socket Tab UP TM52DSMT6612S 6P + 4P ISO9001
Contact Now

LCP UL94V-0 1X2 SMD Rj11 Pcb Socket Tab UP TM52DSMT6612S 6P + 4P ISO9001

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 30pcs/tray Delivery Time : 15 Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM52DSMT6612S（6P+4P）

Detail Information
Product Type : RJ11 Modular Connector Jack Type: RJ11
Number Of Positions: 6 Terminals Per Port: 6
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
Minimal Order: 500pcs Package: 30pcs/tray
High Light:

rj45 plug pcb mount

,

pcb mount rj45 connector

,

1X2 SMD RJ11 PCB Socket

Product Description

LCP UL94V-0 1X2 SMD rj11 pcb socket Tab UP Without Magnetic TM52DSMT6612S(6P+4P)



Materials:

Housing:LCP,UL94V-0 ( RoHS )

Insert: LCP,UL94V-0 ( RoHS )

Contact Finish: T=0.35mm Phosphor Bronze gold plating Fu”(Optional)

Shielding Shell: Without

All materials mates with modulat plug conforming to FCC part 68. subpart F.



RJ11 Modular Jack:

1 x 2 Port / Single Port / One and one Port

Connector Length: 24.9 mm

Connector Width: 16.0 mm

Connector Height: 12.80 mm

Termimal Solder Pin Length: 2.65 mm

6P6C ( 6 positions 6 contacts )

180°Orientation

Without LED, let know the connection status

Without Shield,can be customized as required

We Support Custom service as required



RJ11 Without Transformer (TM52DSMT6612S(6P+4P)):



Model: TM52DSMT6612S(6P+4P)
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ11 Modular Connector
Jack Type: RJ11
Number of Positions : 6
Terminals per Port: 6
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Delivery Time: 20 Days
Supply Ability: 5KK/year



RJ45 Female Connector (TM52DSMT6612S(6P+4P)) Mechnical Drawing:

LCP UL94V-0 1X2 SMD Rj11 Pcb Socket Tab UP TM52DSMT6612S 6P + 4P ISO9001 0LCP UL94V-0 1X2 SMD Rj11 Pcb Socket Tab UP TM52DSMT6612S 6P + 4P ISO9001 1LCP UL94V-0 1X2 SMD Rj11 Pcb Socket Tab UP TM52DSMT6612S 6P + 4P ISO9001 2
